Handling originals and mounting plates
24 x 36 mm
4" x 5"
marked on the template. Note that the highest scan resolution is
obtained along the center line of the template.
• Place the originals with the emulsion side down and the top edge towards
the coded end of the template.
• Using a good quality lithographic tape, tape the original to the template on
two sides.

MOUNTING A TEMPLATE IN THE SCANNER

For scanning, place the template face up on the mounting plate with the
coded end of the template facing towards the left-hand side of the scanner.
Scanner
tray
4•4
ScanMate F6 / ScanMate F8 Plus • Operator's Manual
6 x 6 cm
35-mm strips, vertical
Template code
6 x 7 cm
35-mm strips, horizontal
Top edge of transparency
A4

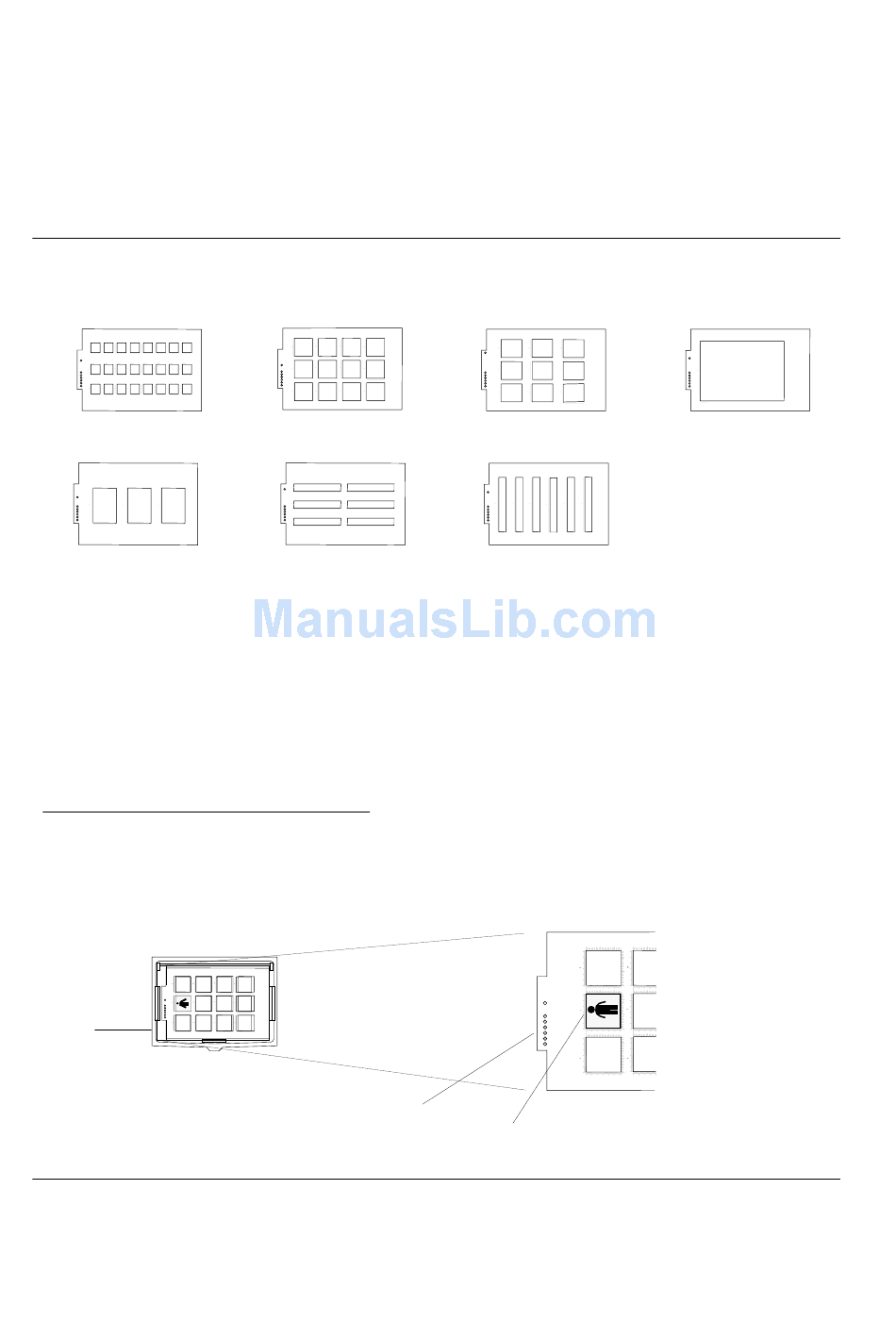

A set of seven templates for
standard transparency formats is
supplied with the scanner.
Additional templates are available
from your ScanView dealer.
