1.6 Overview

1.6.1 Front View

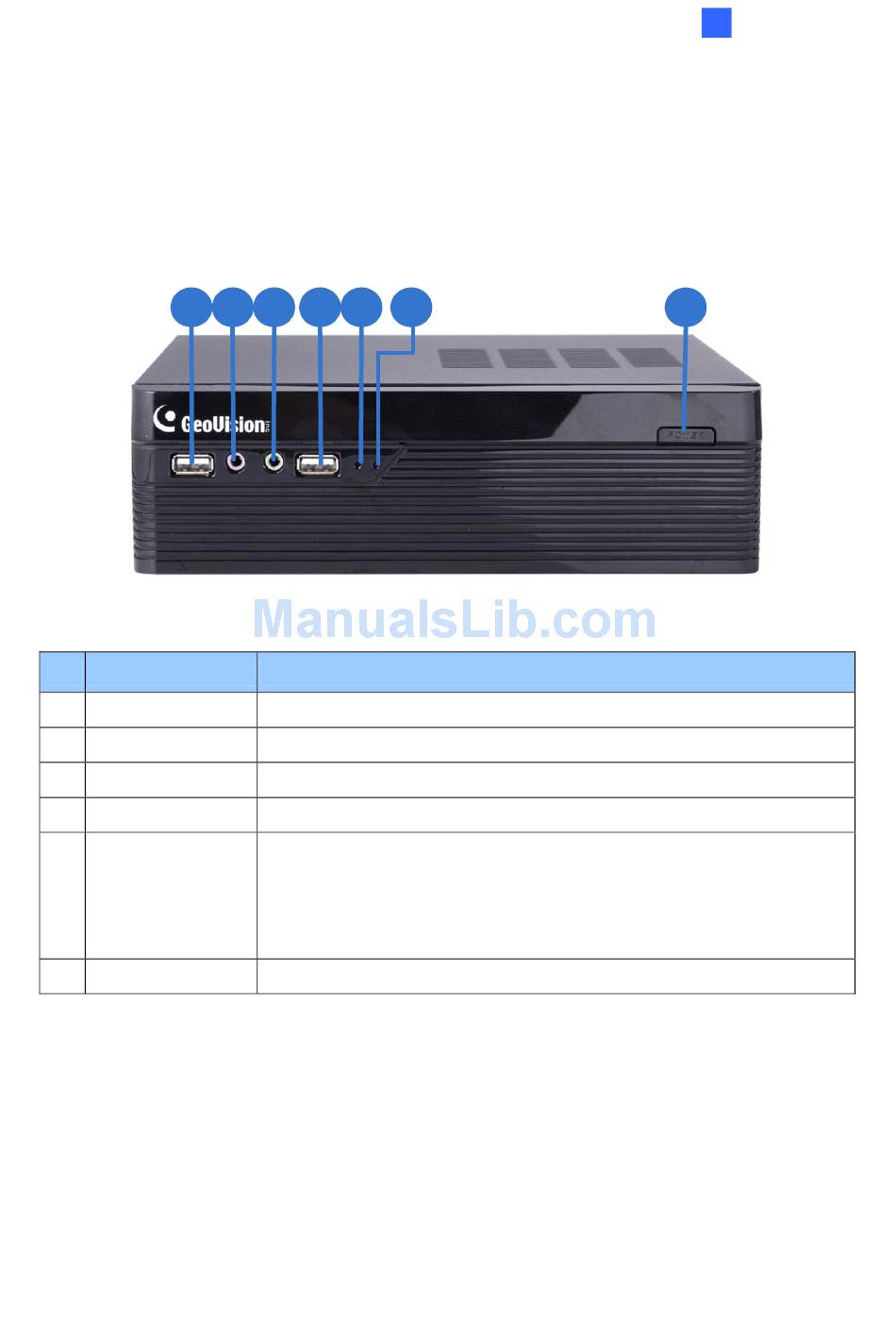

1.6.1.1 GV-SNVR0400F
1 2 3
No. Name
1 USB 2.0 Port
Audio In
2
Audio Out
3
Power LED
4
5 HDD Error LED
Power Button
6
1 4 5
Figure 1-2
Function
Connects to keyboard, mouse, storage device or GV-Joystick V2.
Not functional.
Not functional.
Shows constant blue when the power is supplied for the device.
Shows constant red when the following situations occur:
․ No hard drive is installed.
․ The hard drive is not formatted.
․ The hard drive fails.
Turns on/off the power.
