GV-SNVR System
User's Manual
User's Manual
SNVRV12-UM-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GV-SNVR0410F and is the answer not in the manual?

Questions and answers

Related Manuals for GeoVision GV-SNVR0410F

Summary of Contents for GeoVision GV-SNVR0410F

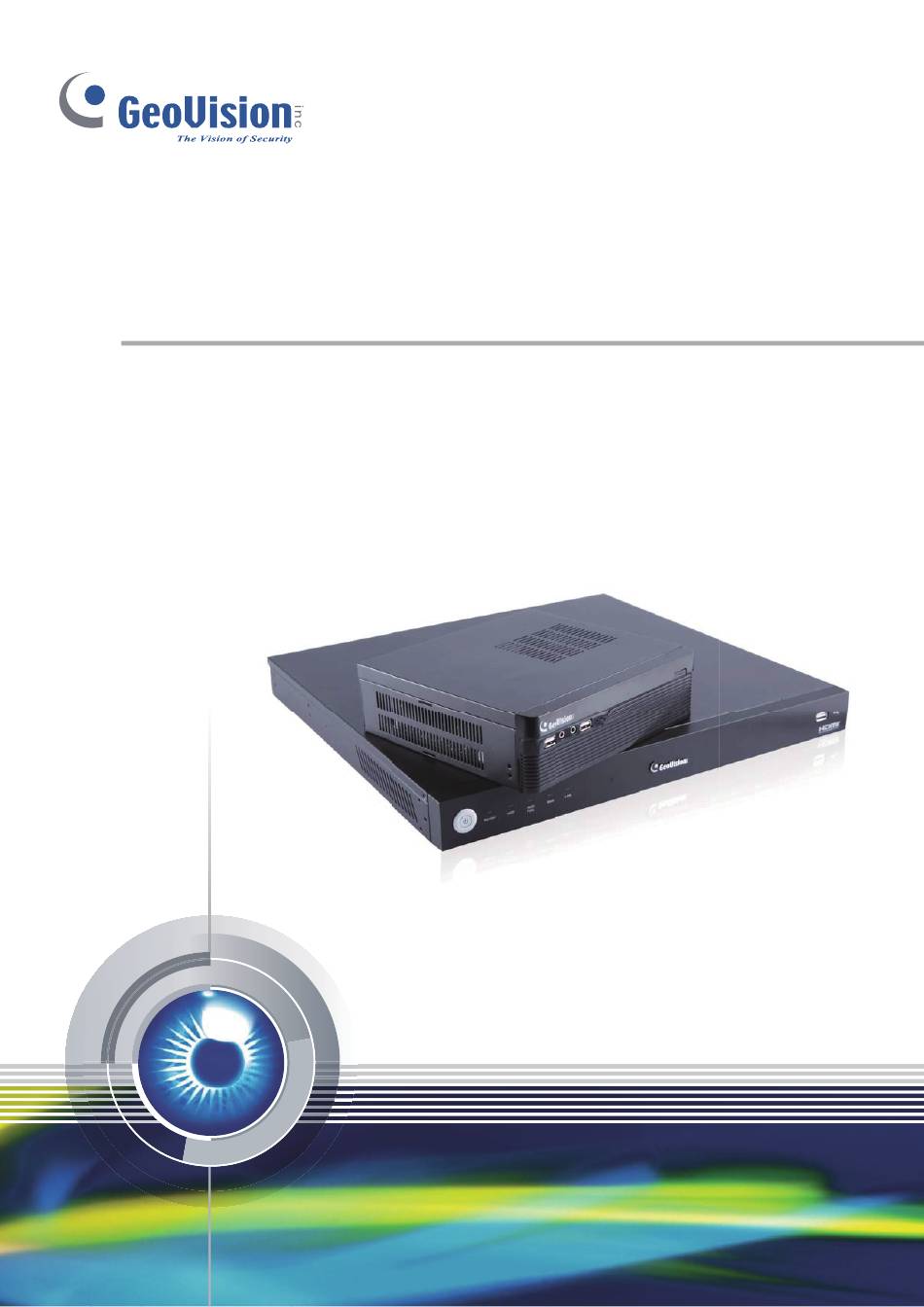

  • Page 1 GV-SNVR System User’s Manual User’s Manual SNVRV12-UM-A...
  • Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
  • Page 3 Preface Welcome to the GV-SNVR system, GV-SNVR0410F / GV-SNVR0400F / GV-SNVR1600, User’s Manual. The GV-SNVR system has a series of models designed to meet different needs. This manual is designed for the following models and firmware versions: Models Firmware Version GV-SNVR0410F (Coming) V1.20...

  • Page 4: Table Of Contents

    1.3.1 GV-SNVR Single Package................3 1.3.2 Bundled Package for GV-SNVR0400F ............5 1.4 Compatible Products and System Requirements ............ 6 1.4.1 Supported GV-IP Cameras ................6 1.4.2 Supported GeoVision Applications..............6 1.4.3 System Requirements................... 7 1.5 Options ........................7 1.6 Overview........................8 1.6.1 Front View.....................
  • Page 5 3.4 Storage........................43 3.5 Display ........................44 3.6 Service ........................45 3.7 System ........................47 Chapter 4 Video Playback ..................50 4.1 Timeline Player ...................... 50 4.2 Recording Backup....................52 Chapter 5 Remote Access to the GV-SNVR............53 5.1 Accessing through Web Browser ................54 5.1.1 Live View Screen ..................

  • Page 6: Chapter 1 Introduction

    Introduction Chapter 1 Introduction The GV-SNVR system is a Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 4 / 16 channels of GV-IP Cameras for network surveillance. With the feature of a Full HD HDMI video output, the GV-SNVR eliminates the need for a separate PC to view and play back video from the unit.

  • Page 7: Features

    ․ PTZ control using GV-Joystick V2 or on-screen panel ․ 1080p HDMI video output ․ 1 SATA HDD drawer (3.5”) for up to 4 TB storage (for GV-SNVR0410F / 0400F) ․ 4 SATA HDD drawer (3.5”) for up to 16 TB storage (for GV-SNVR1600) ․...

  • Page 8: Packing List And Package

    You can choose to purchase a GV-SNVR package or a bundled package which includes 4 GV-Target IP Camera of your choice, and with or without a GV-PoE switch. Package Options: • Single Package for GV-SNVR0410F • Single Package for GV-SNVR0400F •...
  • Page 9 GV-SNVR0400F 1. GV-SNVR0400F 2. AC Power Cord 3. AC/DC Adapter (DC 19V, 3.42A, 65 W) 4. Screw x 6 (for HDD) 5. SATA Cable 6. USB Mouse 7. Firmware CD/DVD 8. Software CD/DVD 9. Quick Start Guide 10. Warranty Card GV-SNVR1600 GV-SNVR1600 AC Power Cord...

  • Page 10: Bundled Package For Gv-Snvr0400F

    Introduction 1.3.2 GV-SNVR Bundled Package GV-SNVR0410F GV-SNVR0410F Package x1 Target IP Camera x 4 GV-SNVR0400F 1.GV-SNVR0400F Package x 1 2. Target IP Camera x 4 3.GV-POE0400 x 1 Note: For the Target IP Camera, select any 4 models from GV-EBL1100 / 2100, GV-EBX1100 / 2100, GV-EDR1100 / 2100, GV-EFD1100 / 2100.

  • Page 11: Compatible Products And System Requirements

    GV-SD2411 (Only for GV-SNVR1600) IMPORTANT: The GV-SNVR supports the recording frame rate of up to 30 fps only. The GV-SNVR supports a total bandwidth of up to 50 Mbps for GV-SNVR0410F / 0400F and 100 Mbps for GV-SNVR1600. 1.4.2 Supported GeoVision Applications The GV-SNVR is compatible with the following applications: ․...

  • Page 12: System Requirements

    1.4.3 System Requirements Recommended Hard Disks GV-SNVR0410F / GV-SNVR0400F supports 1 SATA HDD (3.5”) with up to 4 TB capacities, and GV-SNVR1600 supports 4 SATA HDD (3.5”) with total up to 16 TB capacities. For system efficiency, it is recommended to use the enterprise-level hard disk drives instead of desktop-level or green HDD.

  • Page 13: Overview

    1.6 Overview 1.6.1 Front View 1.6.1.1 GV-SNVR0410F Figure 1-1 No. Name Function USB 2.0 Ports Connects to a keyboard, mouse, storage device or GV-Joystick V2. Restores the device to default settings. Press the button for 15 Default Button seconds to load default.
  • Page 14 Introduction 1.6.1.2 GV-SNVR0400F Figure 1-2 No. Name Function USB 2.0 Port Connects to a keyboard, mouse, storage device or GV-Joystick V2. Audio In Not functional. Audio Out Connects to a speaker. Power LED Shows constant blue when the power is supplied for the device. Shows constant red when the following situations occur: ․...
  • Page 15 1.6.1.3 GV-SNVR1600 Figure 1-3 No. Name Function Power Button Turns on/off the power. Power LED Shows constant blue when the power is supplied for the device. HDD Status LED Flashes blue when the hard drive is writing or reading data. Shows constant red when the following situations occur: ․...

  • Page 16: Rear View

    Introduction 1.6.2 Rear View 1.6.2.1 GV-SNVR0410F Figure 1-4 No. Name Function Megabit PoE Ports Connects to cameras and provides power. Gigabit Ethernet Port Connects to the network. Audio Out Connects to a speaker. HDMI Output Connects to a HD TV.
  • Page 17 1.6.2.2 GV-SNVR0400F Figure 1-5 No. Name Function Gigabit Ethernet Port Connects to the network. HDMI Output Connects to a HD TV. Connects to a keyboard, mouse, storage device or GV-Joystick USB 2.0 Port Restores the device to default settings. Press the button for 15 Default Button seconds to load default.
  • Page 18 Introduction 1.6.2.3 GV-SNVR1600 Figure 1-6 No. Name Function Audio Microphone In Port Not functional. VGA Monitor Output Connects to a VGA monitor. HDMI Port Connects to a HD TV. Connects to a keyboard, mouse, storage device or USB 2.0 Port x 4 GV-Joystick V2.

  • Page 19: Chapter 2 Getting Started

    2.1.1 GV-SNVR0410F/ GV-SNVR0400F Installing the Hard Drive Follow the steps below to install the hard drive to the GV-SNVR0410F / GV-SNVR0400F. 1. Unscrew the two screws on the rear panel and remove the cover. Figure 2-1 2.
  • Page 20 Getting Started 3. Place the hard drive in the drive drawer as below by aligning the three holes. Figure 2-3 4. Secure the hard drive with the drive drawer using the supplied 6 screws (3 screws on each side). Figure 2-4 5.
  • Page 21 6. Put the drive drawer back in the device and secure the two screws on the drive drawer (Figure 2-2). 7. Assemble the cover with the device by tightening the screws on rear panel (Figure 2-2). The hard drive is now ready to use.

  • Page 22: Gv-Snvr1600

    Getting Started 2.1.2 GV-SNVR1600 Installing the Hard Drive Follow the steps below to install the hard drive to the GV-SNVR1600. 1. Loosen the 6 screws and remove the cover. Figure 2-6 2. Assemble the mounting brackets with the hard drive and tighten the screws on both sides. Figure 2-7 Note: Each mounting bracket is labeled L or R for recognition.
  • Page 23 3. Align the mounting bracket with the holes inside the unit. Figure 2-8 4. Tighten the 4 screws on the side of the hard drive. Figure 2-9 5. Connect the SATA Power Cable and Data Cable to the hard drive. Figure 2-10...
  • Page 24 Getting Started 6. To install more HDDs, repeat the steps above. 7. Place the cover back and tighten the screws. The hard drive is now ready for use. Installing the L-Shaped Brackets Tighten the 6 screws to secure and attach the 2 L-shaped brackets to each side of GV-SNVR1600.

  • Page 25: Connecting The Gv-Snvr

    2.2 Connecting the GV-SNVR Follow the steps below to connect the GV-SNVR. GV-SNVR0410F GV-SNVR0400F...
  • Page 26 VGA monitor to the D-Sub connector for dual-monitor display. 5. Connect the mouse and the keyboard to the USB ports. 6. Only for GV-SNVR0410F, connect the GV-SNVR to cameras using Ethernet cables. Press the power button to turn on the GV-SNVR.

  • Page 27: Network Connection For Gv-Snvr1600

    2.2.1 Network Connection for GV-SNVR1600 There are two network ports, LAN and WAN, for the GV-SNVR1600. If both network ports are used simultaneously, only the WAN port can be connected to the Internet. Therefore, it is recommended to connect the devices as below. Internet GV-IP Cameras GV-SNVR1600...

  • Page 28: Setting Up Gv-Ip Camera

    To automatically set up the IP cameras, follow the steps below. Power on GV-SNVR0410F. Connect GV-SNVR0410F and cameras with Ethernet cables (No.2, Figure 2-12). Within one minute, live view appears when GV-SNVR0410F is connected with the cameras. GV-SNVR0400F / GV-SNVR1600 To automatically set up the IP cameras, follow the steps below.
  • Page 29 The GV-SNVR supports a total bandwidth of up to 50 Mbps for GV-SNVR0410F / 0400F and up to 100 Mbps for GV-SNVR1600. The total bandwidth can be found in the top-right corner of the camera list.

  • Page 30: Manually Connecting Gv-Ip Camera

    Getting Started 2.3.2 Manually Connecting GV-IP Camera Only for GV-SNVR0400F and GV-SNVR1600, you can manually add the GV-IP Camera to the camera list, follow the steps below. On the Camera page, click the Add Cameras button. Type the IP Address, Username and Password of the desired IP camera. Keep the default Port 10000 or modify if necessary.

  • Page 31: Changing Camera Ip Address And Assigning Channels

    To delete the added IP camera, click the Delete button of the camera on the Camera page. 2.3.3 Changing Camera IP Address and Assigning Channels On the Camera page, you can change the IP address of the connected cameras by clicking on the IP address.

  • Page 32: Formatting The Hard Drive

    Getting Started 2.4 Formatting the Hard Drive After installing the hard drive to GV-SNVR, you need to format the hard drive before enabling the monitoring. On the main screen, click the Setting button. Figure 2-19 Select Storage. Figure 2-20 Click Format. This dialog box appears. Figure 2-21 Click Execute to format the hard drive.
  • Page 33 When the hard drive is successfully formatted, its icon should be marked with a green tick, and the “Normal” message appears. The information of operating temperature, hard drive status and total time in use is also displayed. Figure 2-22 Note: When the hard drive status displays other value instead of 0, replace the hard drive with a new one to ensure proper video recording.

  • Page 34: Main Screen

    Getting Started 2.5 Main Screen Close the Camera page to see the connected channels on the main screen. Here we use GV-SNVR0400F for illustration. Figure 2-23 No. Name Description Indicates the camera name. The column changes from gray to red Camera Name when the recording is enabled.
  • Page 35 Playback Displays the playback panel. Date / Time Displays the current date and time. Displays the device name of GV-SNVR. See Device Name in 3.7 Device Name System. Temperature Displays the current temperature. 10 Model Name Displays the model name of GV-SNVR.

  • Page 36: Enabling Recording

    Getting Started 2.6 Enabling Recording To start recording, click the Record button (No. 4, Figure 2-23) and select a camera. To enable recording for all the connected cameras, select Start All Monitoring. By default, the GV-SNVR records with the Round-the-clock mode and H.264 codec. The default recording resolution depends on the settings of each camera.

  • Page 37: Live Monitoring

    2.8 Live Monitoring GV-SNVR0410F / GV-SNVR0400F On the main screen, the live view of connected cameras is displayed in 4 divisions by default. You can click the Division button (No. 5, Figure 2-23) and select 1 or 4 Division. Optionally, click on the live view of desired camera to switch to full screen.

  • Page 38: Audio

    Getting Started 2.8.2 Audio To enable the audio function on live video, follow the steps below. Note: To listen to the audio, make sure the Enable Audio function is applied for the camera. For details, see 3.1 Camera. Click the live view of the desired camera to switch to full screen. Click the camera name and select Speaker.

  • Page 39: Ptz Control

    2.8.3 PTZ Control To enable the PTZ function on live video, click the camera name of desired camera and select Enable PTZ. The PTZ control panel appears at the lower-right corner of the live view. Note: The option is only available for the cameras supporting PTZ functions. Figure 2-27 Figure 2-28 Home: Brings the PTZ live view back to the Home position.
  • Page 40 Getting Started For details on the GV-Joystick V2, see GV-Joystick V2 User’s Manual. Note: The GV-SNVR does not support GV-Keyboard. Digital PTZ Function For non-PTZ cameras, the Digital PTZ (DPTZ) function allows you to simulate the PTZ movement on the screen. Note: The DPTZ function is only available for GV-SNVR1600.

  • Page 41: Chapter 3 System Configuration

    Chapter 3 System Configuration This section introduces the settings of camera, video recording, network, storage, display, service and system. Camera To access the camera settings, click the Edit button of the camera on the Camera page. Figure 3-1 The Camera Settings page appears. Figure 3-2 Camera Name: Type a desired name for the camera.
  • Page 42 System Configuration Motion Sensitivity: Configure the sensitivity value from 1 to 10 for the motion detection. The higher the value, the more sensitive the camera is to the motion. Codec: The video codec is H.264. Resolution: Select the video resolution for the camera. FPS: Set up recording frame rate for the camera.

  • Page 43: Recording

    Recording You can set up desired recording mode for specific period on specific days for each connected camera. The default recording mode is round-the-clock. Figure 3-3 1. Select a camera from the drop-down list at the upper-right corner. 2. To set up the recording mode, click the Motion Recording icon Round-the-clock icon and drag the cursor on the desired period.

  • Page 44: Network

    System Configuration Network The Network section includes basic network configurations that enable the GV-SNVR to be connected to the network. By default, the GV-SNVR is assigned with a dynamic IP address when connecting to the network. [LAN] Figure 3-4 IP Configuration: Select DHCP or Static according to your network environment. MAC Address: Displays the MAC Address of the GV-SNVR.
  • Page 45 [WAN] Figure 3-5 IP Configuration: Select DHCP or Static according to your network environment. MAC Address: Displays the MAC Address of the GV-SNVR. To enable the PPPoE connection, select PPPoE and fill out the required settings below. Primary DNS: Type a primary DNS. The default is 192.168.100.1. Second DNS: Type a second DNS.
  • Page 46 DDNS function, you should have applied for a Host Name from the DDNS service provider’s website. The provider is GeoVision DDNS Server: http://ns.gvdip.com/register.aspx. Figure 3-6 To enable the DDNS function, click the Enable box, type the hostname and password you have registered with GeoVision DDNS Server and click Apply.
  • Page 47 [E-mail] Configure your mail server to allow e-mail notification upon: ․ Recording error of writing recording data to the hard disk drive ․ Request for retrieving the username and password for system login Figure 3-7 Sender: Type the sender’s e-mail address. Receiver: Type the recipients’...

  • Page 48: Storage

    [Web Server] Figure 3-8 Web Port: The Web Port is used for connection with compatible GeoVision software and allows users to access GV-SNVR through the Web interface. The default port is 80. Streaming port (VSS): The VSS streaming port is used for connection with GV-Eye mobile application and compatible GeoVision software.

  • Page 49: Display

    Display You can adjust how you want GV-SNVR to be displayed. Figure 3-9 Language: Select a language for the OSD interface. Show Style: Select a color scheme for GV-SNVR interface. Black scheme is selected by default. Date Format Setup: Select a display format for the date. Temperature: Select to display the operating temperature in Celsius or Fahrenheit.

  • Page 50: Service

    Type the Username and Password of the GV-Center V2 or GV-Vital Sign Monitor. 5. Only for connecting GV-SNVR0410F / 1600, select camera channels. When Motion or Video Lost Event occurs, the selected cameras will send a notification or a video to GV-Center V2 or GV-Vital Sign Monitor.
  • Page 51 Note: GV-SNVR is only compatible with GV-Center V2 and GV-Vital Sign Monitor V15.10 or later. For GV-Center V2, audio function of live view is only supported in Single Live View Window, and the IP device must be connected through stream 1. For GV-Vital Sign Monitor, the Video Log Storage function is not supported when viewing subscriber status.

  • Page 52: System

    Default Camera Password: Set up the default password of camera for connection. The default is admin. Keep Days: Only for GV-SNVR0410F / 1600, select Enable and drag the slider to specify the number of days to keep the video files in storage.
  • Page 53 To restore the GV-SNVR to default settings, click Load Default and follow the on-screen instructions. Optionally, press the Load Default button on the rear panel of the device for 15 seconds. To import or export the system settings and update firmware, click Advanced Options for configuration.
  • Page 54 System Configuration [System Log] This page lists all the changes made to the system. Figure 3-13 To export the system log, click the Export button at the upper-right corner and click Apply. A USB storage device needs to be inserted in order to export system log. To search for specific events, click the Filter button at the upper-right corner to limit the search results using the following options.

  • Page 55: Chapter 4 Video Playback

    Chapter 4 Video Playback The timeline player plays back recorded video without affecting recording. There are two ways to launch the timeline player: ․ On the main screen, click the Playback button (No. 6, Figure 2-24). ․ On the camera live view, click the desired camera name and select Instant Playback. On the timeline player screen, the system automatically plays back video recording from 3 minutes before the playback function is enabled.
  • Page 56 Playback Panel Contains typical playback control buttons. The time with video recording is highlighted in blue. For GV-SNVR0410F / 1600, a) With the Scale Small button clicked, displays a 24-hour timeline consisting of 24 grids with each specifying an hour.

  • Page 57: Recording Backup

    The video recording is exported to the external hard drive. The backup recordings are in AVI format. To play back the recordings using Windows Media Player, you need to install GeoVision codec in the dedicated PC. Otherwise you can install the GV-ViewLog player for playback.

  • Page 58: Chapter 5 Remote Access To The Gv-Snvr

    GV-Edge Recording Manager (Windows Version) V1.1.0.0 or later GV-Control Center V3.3.0.0 or later Note: The maximum number of remote network connection is 10 in total for GV-SNVR0410F / 0400F and 34 in total for GV-SNVR1600. Every connected channel will be counted as 1 connection.

  • Page 59: Accessing Through Web Browser

    Login. 4. To enable the update of live view on your Web browser, you must set the Web browser to allow ActiveX controls and perform a one-time installation of GeoVision’s ActiveX components on your computer. After the installation, live view will be displayed.

  • Page 60: Live View Screen

    Remote Access to the GV-SNVR 5.1.1 Live View Screen After successfully logging in the Web interface, you can access the live view of connected IP cameras. Figure 5-2 No. Name Description Division & Page Select screen divisions and switch between cameras in single division. Up / Down Access the following system configuration pages of GV-SNVR: Recording, Network, Storage, Service, System.
  • Page 61 No. Name Description Exit Log out the Web interface. Right-click the live view of desired camera to access the functions below. Snapshot: Take a snapshot of live video. For details, see 5.1.2 Snapshot of Live Video. Full Screen: Switch the live view to full screen. Resolution: Display the resolution at the lower-right corner of the live Advanced view.

  • Page 62: Snapshot Of Live Video

    Remote Access to the GV-SNVR 5.1.2 Snapshot of Live Video To take a snapshot of live video, follow the steps below. 1. Right-click on the live view of desired camera and select Snapshot. This dialog box appears. Figure 5-3 2. Select a desired saving path, type the file name and select JPEG or BMP as the Save as Type.

  • Page 63: Picture-In-Picture View

    5.1.3 Picture-in-Picture View With the Picture in Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video. This function is useful for detailed images of the surveillance area. 1. Right-click the desired camera live view and select PIP. An inset window of the camera view appears in the bottom right corner.

  • Page 64: Picture-And-Picture View

    Remote Access to the GV-SNVR 5.1.4 Picture-and-Picture View With the Picture and Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. Up to 7 close-up views can be defined for clear and detailed images of the surveillance area.

  • Page 65: Digital Ptz Control

    5.1.5 Digital PTZ Control In non-PTZ cameras, the Digital PTZ (DPTZ) function allows you to simulate the PTZ movement on the screen. This function is also supported in PT / PTZ cameras. Note: The Digital PTZ function is not supported in the 16-division display. 1.

  • Page 66: Accessing Through Mobile Device

    Picture in Picture (PIP) function and take snapshots from your mobile device. To download the latest GV-Eye and its installation Guide, visit http://www.geovision.com.tw/english/5_8_App.asp Note: Audio function is only supported when the IP device is connected through stream 1.

  • Page 67: Accessing Through Gv-Control Center

    Accessing through GV-Control Center You can connect to GV-SNVR from GV-Control Center to access live view and play back recordings. For details, refer to GV-Control Center User’s Manual. Note: GV-SNVR is only compatible with GV-Control Center V3.3.0.0 or later. Audio function of live view is only supported in Single Live View Window and Matrix View, and the IP device must be connected through stream 1.

  • Page 68: Chapter 6 Advanced Applications

    Remote Access to the GV-SNVR Chapter 6 Advanced Applications 6.1 Upgrading System Firmware GeoVision periodically release the updated firmware on the Website. You can upgrade the firmware using an USB storage drive of FAT32 format. To upgrade the firmware, follow the steps below.

  • Page 69: Using The Gv-Ip Device Utility

    6.2 Using the GV-IP Device Utility The GV-IP Device Utility detects all the GV-IP Devices in the LAN and allows you to quickly set up the IP address of the device, upgrade firmware and export/import device settings. For details, see GV-IP Device Utility Installation Guide on the Software CD/DVD. 6.2.1 Looking up the IP Address You can use the GV-IP Device Utility to look up the IP address of your GV-SNVR and GV-IP Camera.

  • Page 70: Upgrading System Firmware

    Remote Access to the GV-SNVR 6.2.3 Upgrading System Firmware You can also use the GV-IP Device Utility to upgrade firmware of multiple GV-SNVR at the same time. Note the computer used to upgrade firmware must be under the same LAN with the GV-SNVR.

  • Page 71: Backing Up And Restoring Settings

    3. Click the Browse button to locate the firmware file (.img) saved at your local computer. 4. If you like to upgrade all the GV-SNVR in the list, select Upgrade all devices. 5. Type Password, and click Upgrade to start the upgrade. 6.2.4 Backing up and Restoring Settings With the GV-IP Device Utility, you can back up the configurations in the GV-SNVR and restore the backup data to the current GV-SNVR or import it to another one.
  • Page 72 Remote Access to the GV-SNVR To restore the settings: 1. In Figure 6-5, click the Import Settings tab. This dialog box appears. Figure 6-6 2. Click the Browse button to locate the backup file (.dat). 3. Select Upgrade all devices to import the settings into all the GV-SNVR under the same LAN.

  • Page 73: Specifications

    Specifications A. GV-SNVR0410F / 0400F Hardware Model GV-SNVR0410F GV-SNVR0400F System Embedded Linux 1 (3.5” HDD) No. of Drive Bay Input: AC 100 ~ 230V, Input: AC 100 ~ 230V, 50 ~ 60 Hz 50 ~ 60 Hz Power Source Output: DC 52V, 2.5A, Output: DC 19V, 3.42A,...
  • Page 74 Specifications Software Model GV-SNVR0410F GV-SNVR0400F Video and Audio Display Division 1 / 4 Audio Compression G.711 Audio Support Two-Way Audio Operation Max. Bandwidth Max. 50 Mbps for 4 channels Round the clock / Motion Detection / Schedule Recording Recording Mode 1 ~ 10 sec.
  • Page 75 B. GV-SNVR1600 Hardware Model GV-SNVR1600 System Embedded Linux No. of Drive Bay 4 (3.5” HDD) Input: AC 100 ~ 230V, Power Source 50 ~ 60 Hz Output: Max. 100 W Mechanical Gigabit Ethernet 2 ports, RJ-45 Video HDMI and D-Sub Connector 2 stereo jacks for a speaker Audio...
  • Page 76 Specifications Software Model GV-SNVR1600 Video and Audio Display Division 1 / 4 / 9 / 16 Audio Compression G.711 Audio Support Two-Way Audio Operation Max. Bandwidth Max. 100 Mbps for 16 channels Round the clock / Motion Detection / Schedule Recording Recording Mode 1 ~ 10 sec.

  • Page 77: Appendix

    Appendix A. Tested and Supported Hard Disk Drives For system efficiency, it is recommended to use the enterprise-level hard disk drives instead of desktop-level or green HDD. The HDD listed below are tested by GeoVision. Model Capacity WD4000F9YZ 4 TB...
  • Page 78 3 TB HUS724040ALA640 4 TB HUS724020ALA640 2 TB B. Live View Streaming The default streaming for local display, Web browser and smart device access are listed below. GV-SNVR0410F Screen Display GV-SNVR1600 GV-SNVR0400F 1 Division Stream 1 Stream 1 4 Divisions...
