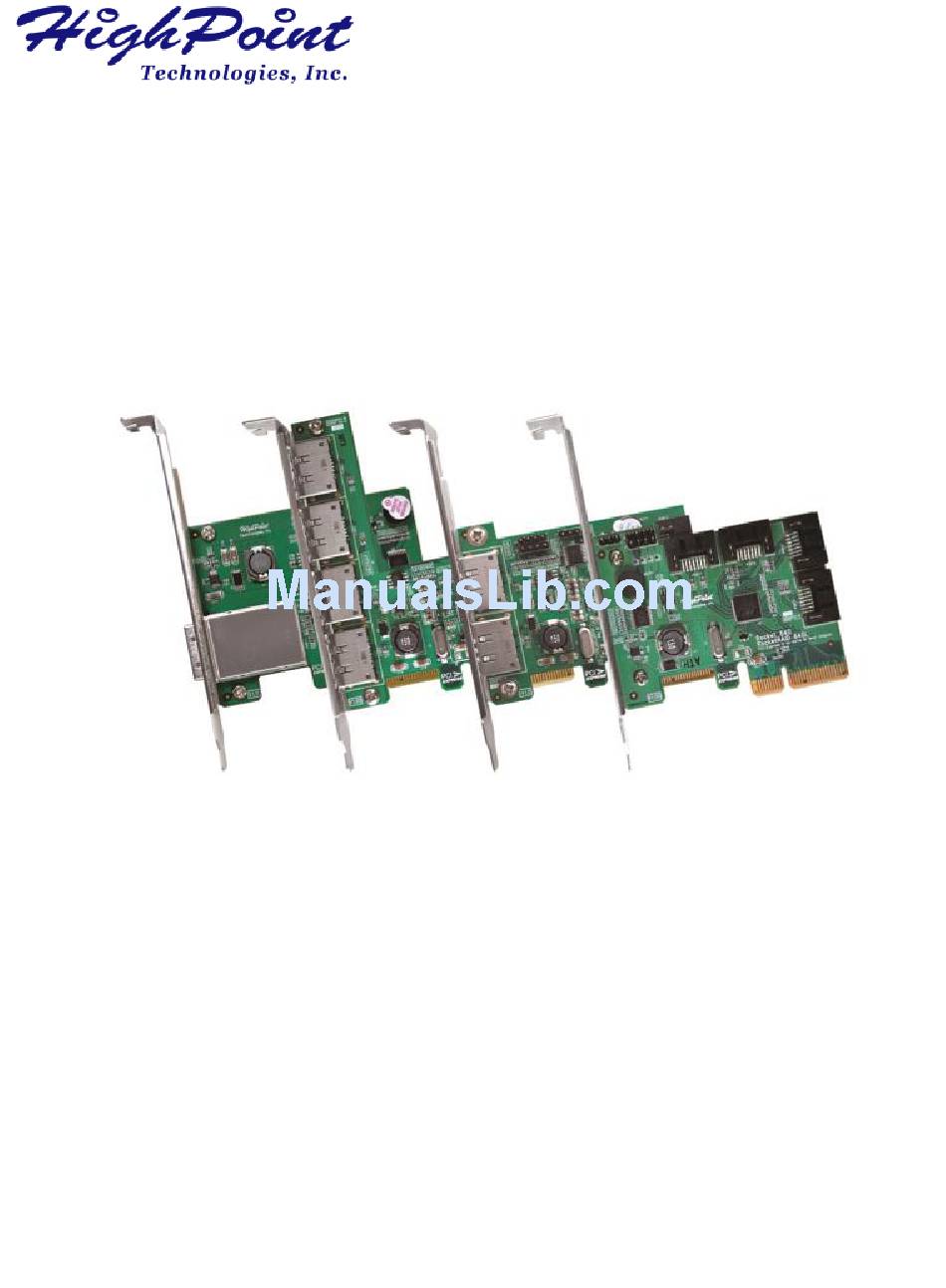

- Page 1 RocketRAID 600L Series 6Gb/s SATA PCI-Express 2.0 RAID HBA Quick Installation Guide v1.5...
-
Page 2: Table Of Contents
Table of Contents HighPoint RocketRAID 600L Series HBA ........3 Kit Contents..................3 Board Layout ................4 Hardware Installation..............5 Using the RocketRAID 600L Series HBA........5 Customer Support ................9... -

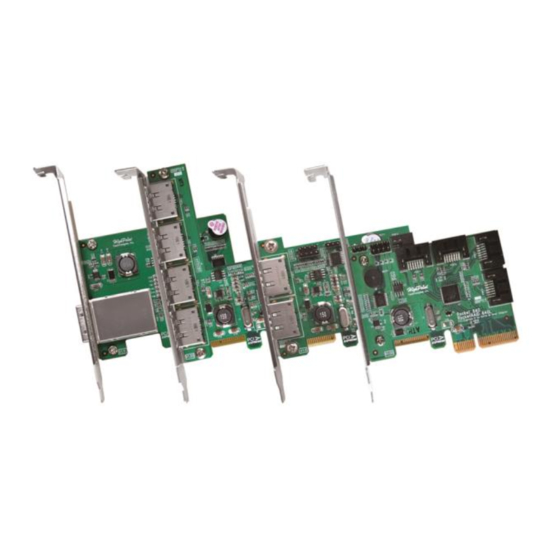

Page 3: Highpoint Rocketraid 600L Series Hba
PCI-Express 2.0 x4 host bus interface, and support non-RAID and RAID configurations of today’s fastest SATA 6Gb/s devices. The 4-Port RocketRAID 600L series HBA is powered by HighPoint’s industry-proven RAID Technology. The intuitive BIOS and web-based Management interfaces allow you to quickly and easily configure RAID 0, 1, 5, 10 and JBOD arrays. -
Page 4: Board Layout
Board Layout RocketRAID 600L PCB board Layout... -
Page 5: Hardware Installation
FAQ: http://www.highpoint- tech.com/websupport/kb_view_article_noauth.php?id=32 Hardware Installation Installing the RocketRAID 600L Series HBA Note: Make sure the system is powered-off before installing the RocketRAID 600L Series HBA. Open the system chassis and locate an unused PCI-E (2.0/1.0) (x4, x8, x16) slot or (3.0) (x16) slot. - Page 6 The HBA needs to have the bootable BIOS installed When booting up the system, press CTRL + H during the HighPoint RocketRAID splash screen to enter the BIOS RAID creation utility. Navigate to Settings using arrow keys.
- Page 7 If you are unable to use the WebGUI to update the Quick BIOS, please submit a support inquiry using our Online Web Support Portal. Support representatives will provide other methods to update the BIOS: http://www.highpoint-tech.com/websupport To get the Quick BIOS file associated with your card, please visit the product download page: http://www.highpoint-tech.com/USA_new/series_rr600- download.htm...
- Page 8 Driver and RAID Management software Installation (Windows) After installing the RocketRAID 600L series host adapter, boot tothe Windows operating system. Windows should automatically detect the card, and display the“Found New Hardware Wizard”. Download the Driver from HighPoint website. Extract the Driver package to a Windows folder.
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the RocketRAID seriesHBA, or have any questions about this or any other HighPointTechnologies, Inc. product, feel free to contact our Customer SupportDepartment. Web Support: http://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: http://www.highpoint-tech.com...
