BL-OPC • BL-ESD • BLQ-CR
BLQ-ESD • BLQ-CR-ESD
Suction • BL-SS
111-6 Akiyama, Matsudo City, Chiba Pref., Japan
TEL: +81 (JAPAN) 47-392-2001
FAX: +81 (JAPAN) 47-392-7773
15A
Brushless Driver
BL Series
Operation Manual
(September 2015)

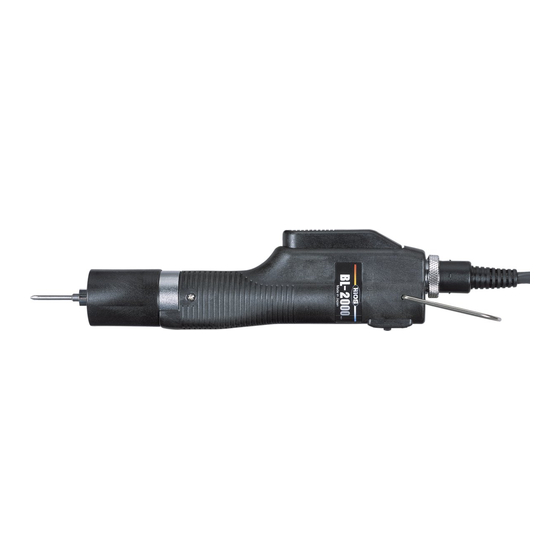

BL-2000
BL-3000
BL-5000
BL-5000-15
BL-5000-20
BL-5020
BL-7000
BL-7000HT
BL-7000-20
HIOS Inc.
(anti-static electricity
is standard)
Operation Manual No.: ET-A010
Utilizing 100％ post-consumer
recycled paper pulp
Advertisement
Related Manuals for HIOS BL-2000
Summary of Contents for HIOS BL-2000
- Page 1 Brushless Driver BL Series Operation Manual (September 2015) BL-2000 (anti-static electricity is standard) BL-3000 BL-5000 BL-5000-15 BL-5000-20 BL-5020 BL-7000 BL-7000HT BL-7000-20 BL-OPC • BL-ESD • BLQ-CR BLQ-ESD • BLQ-CR-ESD Suction • BL-SS HIOS Inc. 111-6 Akiyama, Matsudo City, Chiba Pref., Japan...
-
Page 2: Name Of Parts
Thank you for your purchase of the BL-2000, BL-3000, BL-5000 or BL-7000 brushless driver. 1. Name of Parts BL-2000 BL-3000 Driver cord Driver cord Driver cord plug Joint ring Joint ring Hanger Hanger Driver connector Rotation direction switch Rotation direction switch... - Page 3 Joint shaft collar 2. Accessories • Bits • Torque adjusting spring • There are 2 torque adjusting springs for BL-2000. In the BL-2000, stronger spring(Black) is installed. If you want to use weaker spring then replace with accessory(Yellow) spring. Select the spring depends on your fastening torque.
-
Page 4: Specifications
These models may not perform properly on 1(LOW) power outlet. ● Output torque range and rotational speed in the above specifications is for Model BL-2000, BL-3000 driver, using the T-30BL power pack or driver Models BL-5000 and BL-7000, using the T-70BL power pack. - Page 5 （ WD cut shape ） ■ Power Supplies The Brushless Driver must be operated together with a Power Pack. Powering the Brushless Driver with the Hios T-30BL and the T-70BL Power Pack will insure operation of the driver at its full capacity. ● BL driver and Power Pack combinations Max. number of drivers...
-
Page 6: Pre-Operating Preparations
substances. 4. The driver does not require lubrication and should not be lubricated. ■ Pre-operating Preparations 1. Check that the proper Power Pack is being used with the driver. 2. Connect the Power Pack to plug AC100 to 240 V . 3. -
Page 7: Operating Procedure
If using model BL-3000, BL-5000 or BL- 7000, raise the joint shaft collar at the bottom of the tool, then insert the bit. • As for BL-2000, press the Joint-shaft Joint shaft collar collar towards inside of the screwdriver and insert the bit. - Page 8 1. If you have a predetermined torque value, set that value on the scale using the torque adjustment nut. • The BL-2000 Electric Screwdriver have ‘Double nut system’ (Nut fixing ring and Torque adjusting nut) to avoid loosening from shock or vibration to the Screwdriver.
- Page 9 Repeat the procedure until you arrive at the desired torque setting. It is recommended that a Hios torque meter be used to measure torque. Use the HP series for measurement of the driver's torque setting and the HDP series or the HDM series to measure loosening or tightening torque of screws.
- Page 10 ■ Approximate Guidance of Output Torque (during HI input) BL-2000 BL-3000 BL-2000SS BL-3000SS* N•m N•m 0.25 Black (installed) BL-3000 White 0.15 BL-3000SS* Yellow White (attached) 0.05 0.03 0.02 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Scale ring setting...
- Page 11 - 11 -...
- Page 12 - 12 -...
