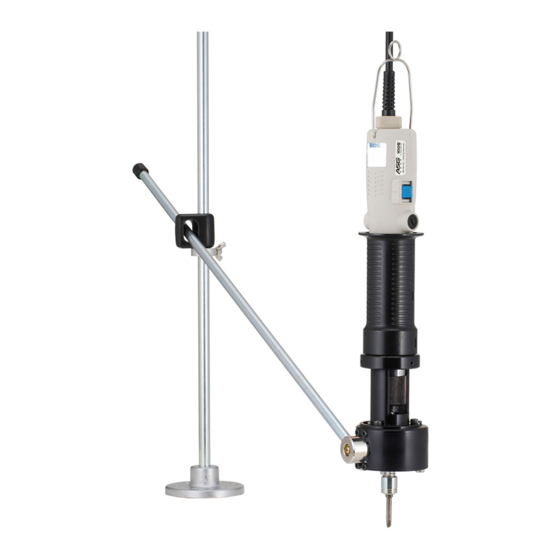

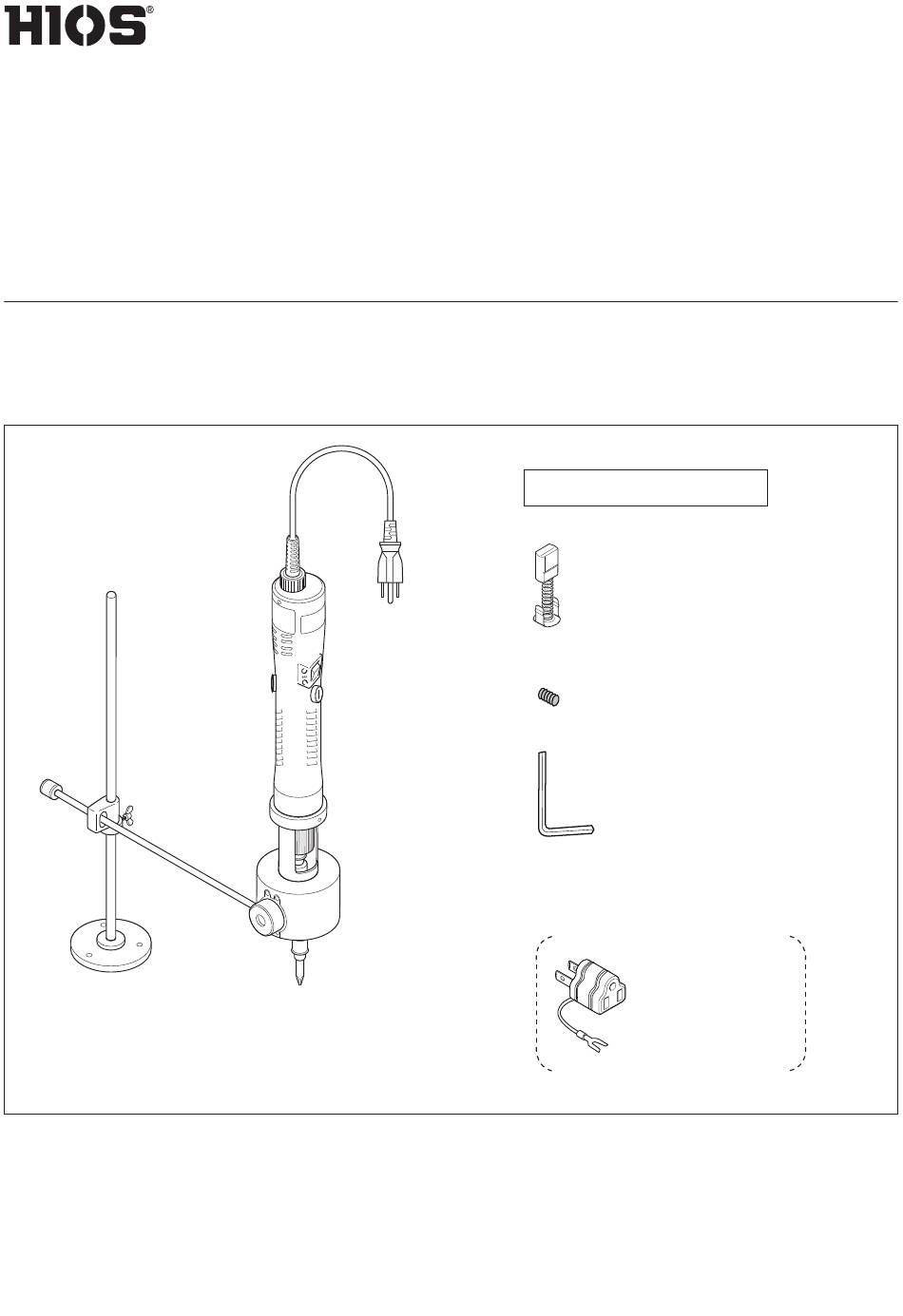

Screwdriver with Hammer Head Model (with Shock-less Stand)
Thank you for purchasing HIOS VZH series screwdriver. Please read this operation manual thoroughly before use to ensure
proper operation. Store this manual in a safe place for future reference.
Please confirm following accessories attached with this product before using.
Hammer Head Screwdriver
(with Shock-less Stand)
<Precautions>
1. Do not connect this tool to the power outlet when attach or remove the bit.
During the tool is not in use, please slide FOR/REV switch to OFF(Neutral position) to avoid unintentional starting.
2. Hold the shock-less stand with bolt firmly on the work benches.
3. Please prepare the bit which type is according as following standard.
NOTE: Do not attach improper type of bit avoid screwdriver to be broken down.
VZH-1820 / VZH-1820PS
VZH-3012 / VZH-3012PS
Operation Manual
Attached Accessories
Carbon brushes
1 pair (VZ18-0480)
Hexagon socket set Screws
x 3pcs
(M4 x 6mm)
L-wrench
2mm Hex x 1
Operation Manual x 1
Precautions notice x 1
converter plug x 1
*Attached with
100V type only
2021.03 ET-A073 21A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HIOS VZH-1820
Summary of Contents for HIOS VZH-1820
- Page 1 Operation Manual 2021.03 ET-A073 21A Thank you for purchasing HIOS VZH series screwdriver. Please read this operation manual thoroughly before use to ensure proper operation. Store this manual in a safe place for future reference. Please confirm following accessories attached with this product before using.
- Page 2 1 million times or after 1 year of use. (4) Please use genuine HIOS products. Do not use carbon brushes of different dimensions or made by other companies. It may cause a malfunction.
-
Page 3: Torque Adjustment
The tightened screw can be loosened by the driver with several times impact. *We recommend using HIOS Torque Meter for torque checking or setting output torque of a screwdriver. ◦Measuring slack torque of tightened screws or torque increase ··· HDP series... - Page 4 Structure of VZH Series Driver Cord AC plug FOR/REV Switch Carbon Brush Carbon Brush Prop Grip Shock-less Holder Arm cap Wing Bolt Arm Holder Shock-less Stopper Torque adjusting nut (T/A nut) Slide Arm Turret Stand Base Turret Set screw Joint shaft Collar Length of Slide Arm (mm) 530 (475) () is the active range of sliding...
- Page 5 Specification of VZH driver VZH-1820 VZH-3012 Model VZH-1820PS VZH-3012PS AC 100V±5% AC 100V±5% Approx. 40W Approx. 40W Power Input / Power consumption (W) AC 120V±5% AC 120V±5% Approx. 60W Approx. 60W N·m 3.0 - 7.0 4.0 -10.0 Output Torque Range (kgf·cm)
