V I I I . D I S A S S E M B L Y A N D A S S E M B L Y
7. If you plan to remove the utility tray, disconnect the 6-pin motor harness plug. See figure 21. If you do not
plan to remove the utility tray, go to step 10.
NOTE: You can decrease the weight of the rear component by removing the utility tray.
8. Lift up and remove the utility tray (optional) if you want to decrease the weight of the rear component. See
figure 22.
9. Grab the handle grip on the tiller, pull upward on the release lever, and gently lower the tiller down to the center
of the scooter chassis until it is fully lowered.

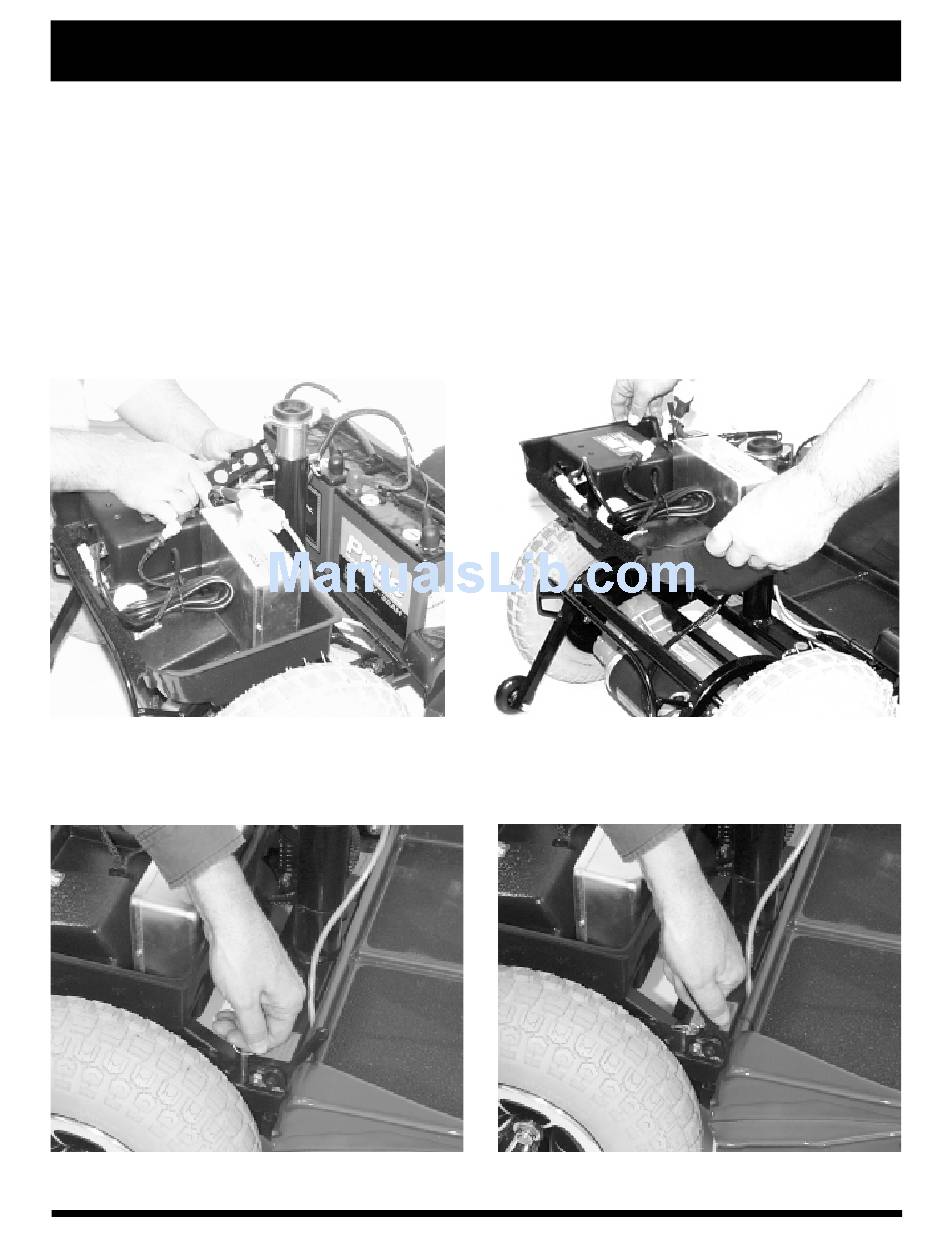

Figure 21. Disconnecting the Motor Harness
10. Remove the ball detent pins and lift the locking cam levers. See figures 23 and 24.
Figure 23. Removing Ball Detent Pins with Rings
28
Figure 22. Lifting the Utility Tray
Figure 24. Lifting Up Locking Cam Levers
Celebrity XL
