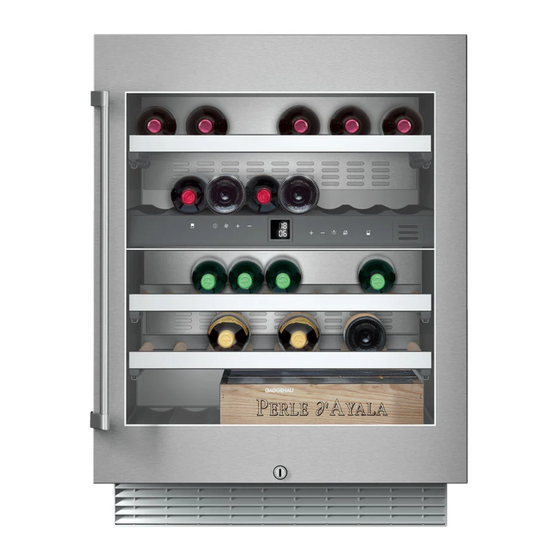

Gaggenau RW404 Installation Instructions Manual
Hide thumbs
Also See for RW404:
- Operating and installation instructions (118 pages) ,
- Operating instructions manual (78 pages) ,
- Use & care manual (48 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Gaggenau RW404
Summary of Contents for Gaggenau RW404
- Page 1 Gaggenau en Installation instructions for side-by-side installation RW404...
- Page 2 安装 “ ” “ ”...
- Page 3 7746 367-00) 4 x 14...
- Page 4 插入顶部连接支架。 对于木制工作台 对于由无法通过螺钉固定材料制成的工作台 ( 例如石头 ) 使用带固定法兰的连接支架。 使用不带固定法兰的连接支架。 从上方插入连接支架，使用四个 M5 x 10 (TX 25) 螺钉将其拧紧。 从下方插入第二个连接支架 ( 不带固定法兰 )， 使用四个 M5 x 10 (TX 25) 螺钉将其拧紧。...
- Page 6 (4 x 30)
-
Page 7: Installation
Installation Align the appliances vertically and horizontally. See chapter "Installing the appliance" in the Change the door hinge for a left-hand appliance. operating and installation instructions. See chapter "Changing the door hinge" in the operating and installation instructions for the appliance. - Page 8 Use the connecting brackets (article number 7746 367-00) to screw the appliances together at the rear. In each case use two 4 x 14 screws. Remove the covers.
- Page 9 Insert the top connecting bracket. For wooden work surfaces For work surfaces made of a material that cannot be fixed with screws (e.g. stone) Use the connecting bracket with a fixing flange. Use the connecting bracket without a fixing flange. Insert the connecting bracket from above and screw it on using four M5 x 10 (TX 25) screws.
- Page 10 Fit the covers. Slide the appliance combination into the recess until the front face of the appliance doors is flush with the unit fronts. When sliding in the appliance combination, ensure that the network cables are not damaged.
- Page 11 10. Secure the appliance combination in the recess on the right and left. The screws (4 x 30) are included in the accessories kit for the appliances. 11. For wooden work surfaces, secure the appliance combination at the top of the recess. Complete the installation as described in the operating and installation instructions for the appliances.
- Page 12 Gaggenau Hausgeräte GmbH Carl-Wery-Sraße 34 81739 Munich www.gaggenau.com...
