Summary of Contents for Comtrend Corporation ES-7205
-
Page 1: User Guide

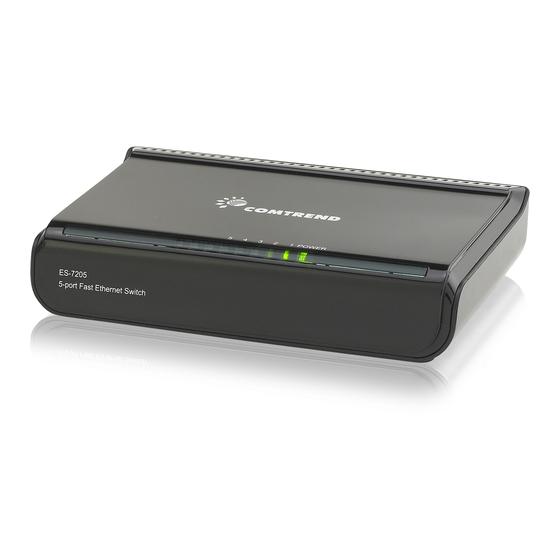

User Guide www.comtrend.com ES-7205 5-port Fast Ethernet Switch ES-7208 8-port Fast Ethernet Switch... -
Page 2: Important Safety Instructions
Copyright © May , 2011 Comtrend Corporation. All rights reserved. The information contained herein is proprietary to Comtrend Corporation. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of Comtrend Corporation. -
Page 3: Table Of Contents
Contents 1. Introduction ..............4 ............4 Switch Features ............5 Package Contents ......5 Front and Rear Panel Specifications ........6 LED Indicator Specifications 2. Installation..............7 ......7 Before Connecting to the Network ...........7 Connecting to End Nodes ... -
Page 4: Introduction
Plug and play functionality makes setup hassle-free. In addition, each switch supports MAC address auto-learning and aging. The ES-7205 and ES-7208 support up to a 2k MAC address table. 1.1 Switch Features Complies with the IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet standards. -
Page 5: Package Contents
1.3 Front and Rear Panel Specifications The front panel of the ES-7205 and ES-7208 Fast Ethernet Switches includes Link/Act indicators and one power indicator. Please refer to the detailed description of these indicators in the LED Indicator Specifications section. -
Page 6: Led Indicator Specifications
1.4 LED Indicator Specifications The LED indicators on the Switch include Power and Link/Act. You can see their operating situation through these LED indicators. The following chart shows the LED indicators of the Switch along with an explanation of each indicator. Color Status Description... -
Page 7: Installation
2. Installation 2.1 Before Connecting to the Network Before connecting the ES-7205/ES-7208 to the network, please pay attention to the following instructions: Do not put anything on top of the Switch. Place on a hard, flat surface. Power sockets and equipment should be within 5 ... -
Page 8: Switch To Router Or Router To Switch
2.3 Switch to Router or Router to Switch ( shown) Connecting to another router or switch... -
Page 9: Product Specification
10/100Mbps Transmission Method Fast store-and-forward MAC Address Table 14880pps(10Mbps)per port Packet Filtering/ Forwarding Rate 148800pps(100Mbps)per port MAC Address Learning Self-learning, auto-aging. 1Gbps(ES-7205) Backplane Bandwidth 1.6Gbps(ES-7208) Power External universal power supply AC INPUT AC 9V 600mA 2.7W(ES-7205) Power Consumption 4.2W(ES-7208) Operating Temperature 0℃-40℃... - Page 10 Address : 16 Goodyear, Suite 120 Irvine, CA 92618, USA Warranty : 2 Years Support : homesupport@comtrend.com...
