User Manual

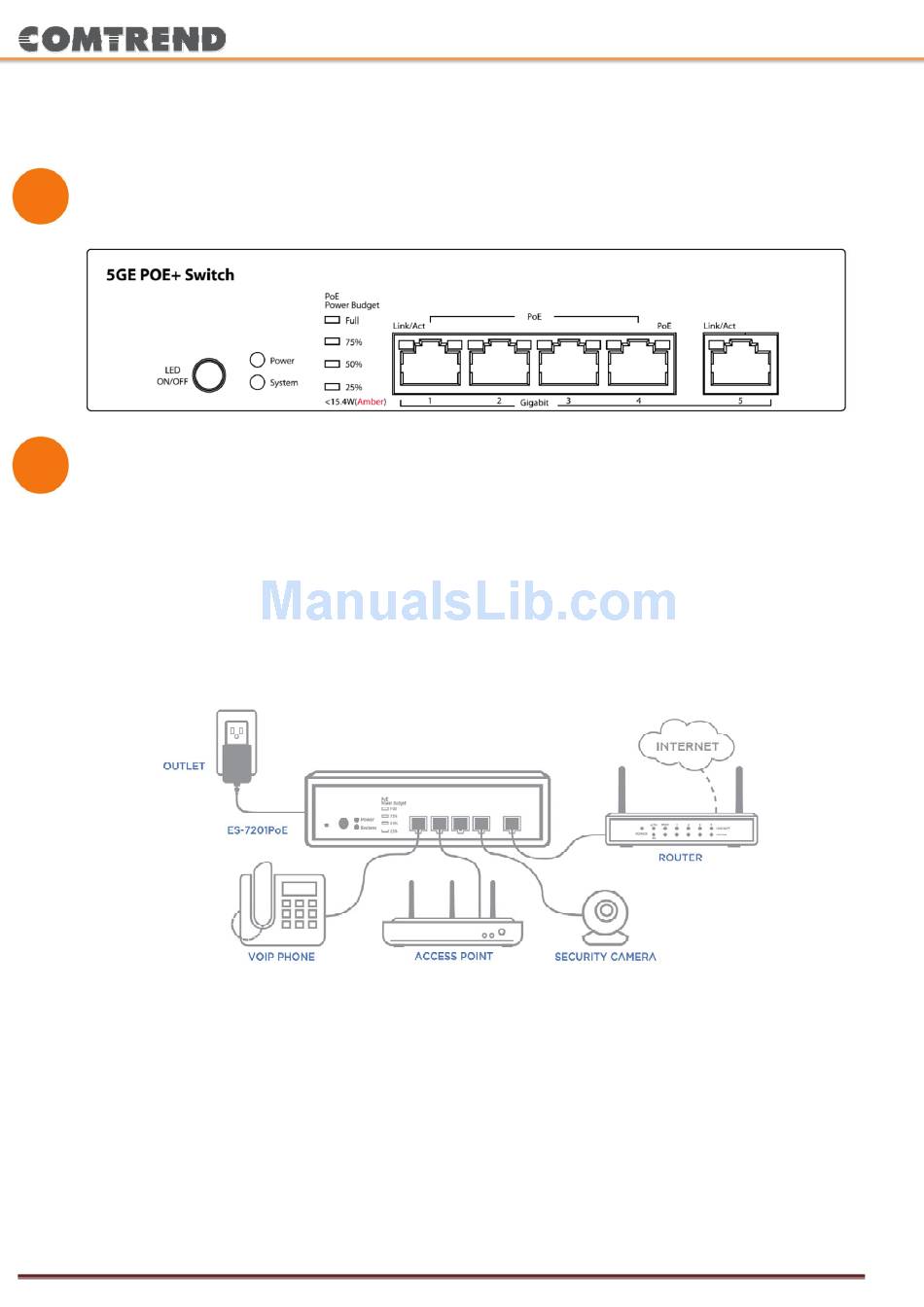

ES-7201PoE| 5-Port PoE+ Gigabit Ethernet Switch
A
Understanding the PoE+ Switch
B
Plug and Play Setup
1.
Connect your network devices to any available port (Ports 1-4 are PoE+ ports).
2.
Use port 5 for up-linking to the network.
3.
Power on the Switch, the "Power" LED will appear GREEN. The PoE+ Switch will go through
Power-On-Self-Test (POST). The "System" LED will appear
of the POST, the "System" LED will turn and stay GREEN.
4.
The switch will automatically start to feed power to the connected 802.3af/at-compliant device.
5.
The LED ON/OFF push button on the front panel will toggle ON and OFF all function LEDs, except the "Power"
LED.
RED
during the POST. Upon successful completion
Page 1
Advertisement
Related Manuals for Comtrend Corporation ES-7201PoE
Summary of Contents for Comtrend Corporation ES-7201PoE
-
Page 1: User Manual
User Manual ES-7201PoE| 5-Port PoE+ Gigabit Ethernet Switch Understanding the PoE+ Switch Plug and Play Setup Connect your network devices to any available port (Ports 1-4 are PoE+ ports). Use port 5 for up-linking to the network. Power on the Switch, the “Power” LED will appear GREEN. The PoE+ Switch will go through Power-On-Self-Test (POST). -
Page 2: Led Indication
LED Indication Location Color Status Description Indication ON Power On Power Green OFF Power Off 100% Power Budget is Available Full Power (4 LEDs ON) Between 75%‐99% Power Budget is Available 75% ‐ 99% Power (3 LEDs ON) Green Between 50%‐74% Power Budget is Available 50% ‐ 74% Power (2 LEDs ON) PoE Power Budget Between 25%‐49% Power Budget is Available Device 25% ‐ 49% Power (1 LED ON) Between 15.4W‐24% Power Budget is Available 15.4W ‐ 24% Power (1 LED) Amber <15.4W Power Budget is Available <15.4W (1 LED Blinking) System up Green ON In POST System ON Amber PoE Failed Blinking ON Link at 1000Mbps mode. (Gigabit Ethernet) ...
