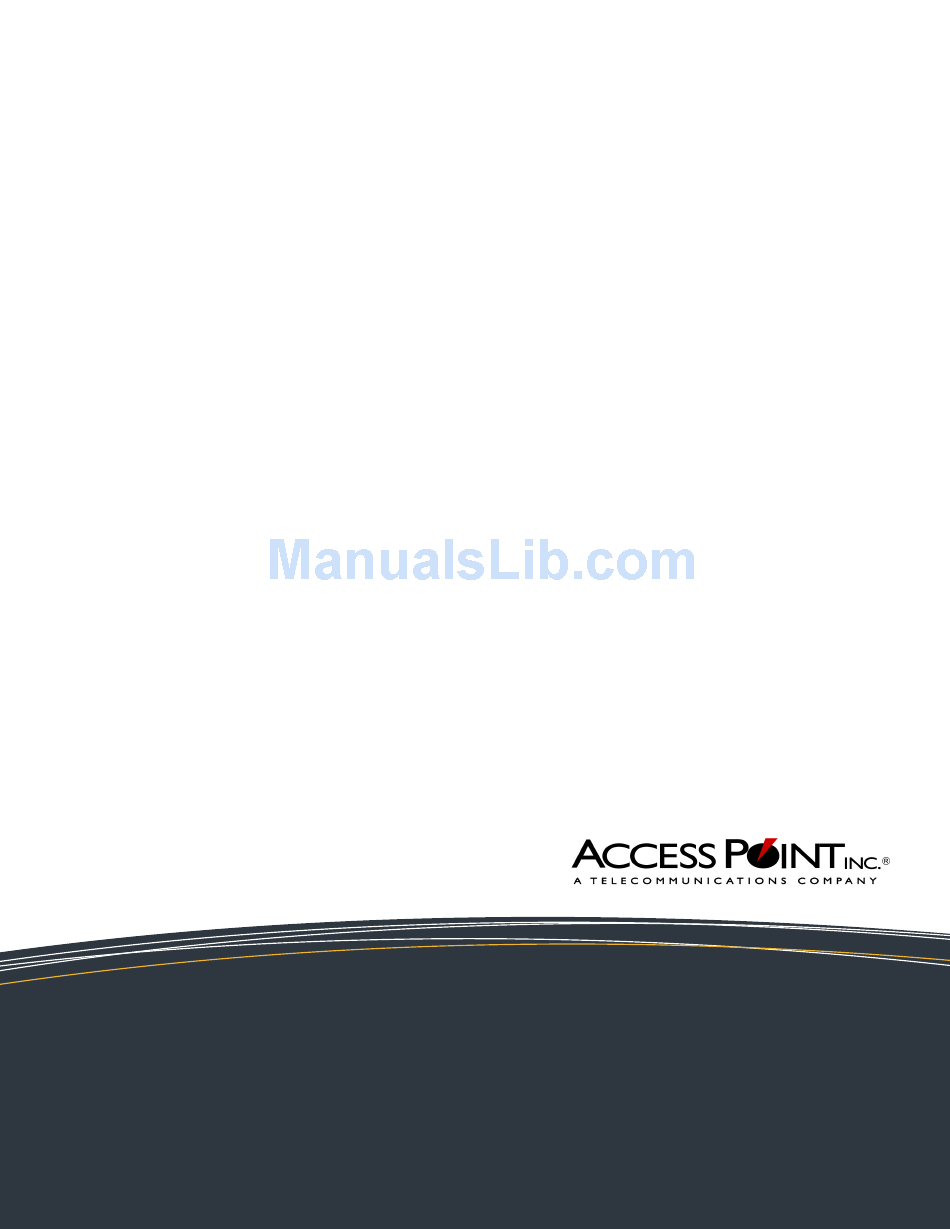

- Page 1 Comtrend 1 Port Router Installation Guide CT-5072T...
- Page 2 DSL router and getting your DSL service up and running. This guide is for new DSL activations only. If you currently have DSL and are switching to Access Point you will need to schedule your activation by calling 800-957-6468. This guide was created to assist with installing Comtrend 5072T routers.
- Page 3 Comtrend Router Installation Login Screen Open an internet browser and go to http://192.168.1.1. You will be prompted with a login screen for the router. The default login name is root and the password is 12345. Device Information Screen Once you are logged into the router, you will see the Device Info screen. Click on the Advanced Setup tab to begin configuration of your modem.
- Page 4 Comtrend Router Installation Configure the DSL Interface Using the information from your DSL confirmation e-mail, enter the correct VPI and VCI information for your installation. Your VPI and VCI information may be different than what is pictured in this document. You must use the information from your e-mail.
- Page 5 Comtrend Router Installation Do not make any changes to this page. Just select Next Ensure that PPPoE is the WAN service type, then click Next.
- Page 6 Comtrend Router Installation Enter your PPPoE username and password You will need to enter the PPPoE username and password for your router. Your username and password can be found on your DSL confirmation e-mail. If you did not get your username and password, please contact our customer service department at 1-800-957-6468.
- Page 7 Comtrend Router Installation Click Next on the Routing screen. Click Next on the DNS Server screen...
- Page 8 Comtrend Router Installation Once you get to the WAN Setup Summary screen, click Apply/Save. This will save your router configuration At this point, the basic configuration of the router has been completed. To ensure that your DSL service is working, check the Internet and ADSL lights on the router. They should both be solid green. Your DSL service should now be working.
- Page 9 Enter the default password which should be 12345. You will then need to enter the new password and confirm the new password. Please use your Access Point, Inc. account number as the password for the router. Your API account number can be found on the DSL Confirmation e-mail...
- Page 10 Comtrend Router Installation Troubleshooting So that Access Point can better assist you in case of a trouble, you will need to enable some remote management tools. On the left side of the window, select Management, Access Control, then Service Access.
