User Manual

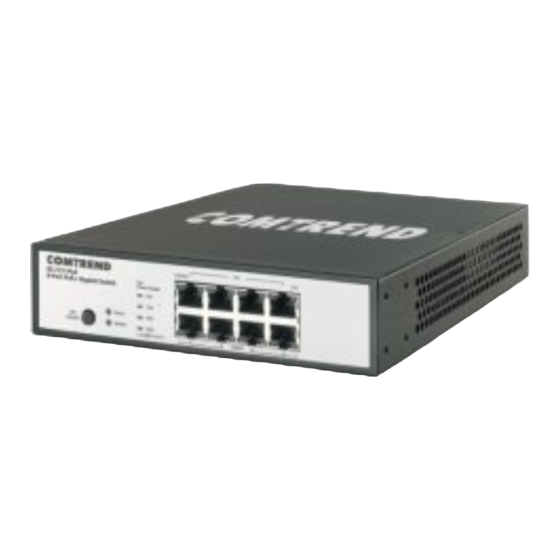

ES-7211PoE| 8-Port PoE+ Gigabit Ethernet Switch
A
Understanding the PoE+ Switch
B
Plug and Play Setup
1.
Connect your network devices to any available port.
Power on the Switch, the "Power" LED will appear GREEN. The PoE+ Switch will go through
2.
Power-On-Self-Test (POST). The "System" LED will appear
completion of the POST, the "System" LED will turn and stay GREEN.
3.
The switch will automatically start to feed power to the connected 802.3af/at-compliant device.
4.
The LED ON/OFF push button on the front panel will toggle ON and OFF all function LEDs, except
the"Power"LED.
AMBER
during the POST. Upon successful
Page 1
Advertisement
Related Manuals for Comtrend Corporation ES-721 1PoE
Summary of Contents for Comtrend Corporation ES-721 1PoE
- Page 1 User Manual ES-7211PoE| 8-Port PoE+ Gigabit Ethernet Switch Understanding the PoE+ Switch Plug and Play Setup Connect your network devices to any available port. Power on the Switch, the “Power” LED will appear GREEN. The PoE+ Switch will go through Power-On-Self-Test (POST).
- Page 2 LED Indication Location LED Indication Color Status Description Power On Power Green Power Off Full Power (4 LEDs ON) 100% Power Budget is Available 75% - 99% Power (3 LEDs ON) Between 75%-99% Power Budget is Available Green 50% - 74% Power (2 LEDs ON) Between 50%-74% Power Budget is Available Power Budget 25% - 49% Power (1 LED ON)
