The Tunnel Name text field requires the SIP tunnel name for
the corresponding connection. System suggests you to start the
SIP tunnel name with the "SIP_Tunnel_" words, according to the
automatic prefix used for the SIP tunnels on the Quadro,
however this is not mandatory.
The User Name text field requires the authentication user
name. The field in front of this text field displays the default non-
editable prefix for SIP tunnels: "SIPTunnel_".
The Password text field requires the authentication password.
Please Note: The User Name and Password should match
both on master and slave Quadros for the successful SIP tunnel
establishment.
The Master device IP text field requires the IP address of the master device.
The Master device port text field requires the SIP port number of the master device.
The Registration State field displays information whether the slave device is registered on the master or not.
The Registration Date/Time field displays the time and the date of last registration on the master's device.

Call Routing

The Call Routing service simplifies the calling procedure for Quadro users, i.e., different types of calls (internal, SIP, PSTN or IP-PSTN) can be
placed in the same way. SIP registration is not needed for extensions to make routing calls.
The Call Routing page offers the following components:
When the Route all incoming SIP calls to Call Routing checkbox is disabled, for all incoming SIP calls Quadro will first search the incoming SIP
address in the Extensions Management
for a matching routing rule in
When the Route all incoming SIP calls to Call Routing
checkbox is enabled, for all incoming SIP calls Quadro will
directly look for a matching routing rule in
will ignore the possible matches in the
table.
The Call Routing Table link leads to the Call Routing table
where routing patterns may be manually defined.
The Local AAA Table link leads to the page where local AAA
(Authentication, Authorization, and Accounting) database can be
managed.
The Global Speed Dial Directory
global speed dialing rules may be uploaded in a file.
Quadro4Li; (SW Version 5.3.x)
table. If found, the incoming SIP call will ring on the corresponding extension. If not found, Quadro will look
Call Routing table.
Call Routing table and
Extensions Management
link leads to the page where

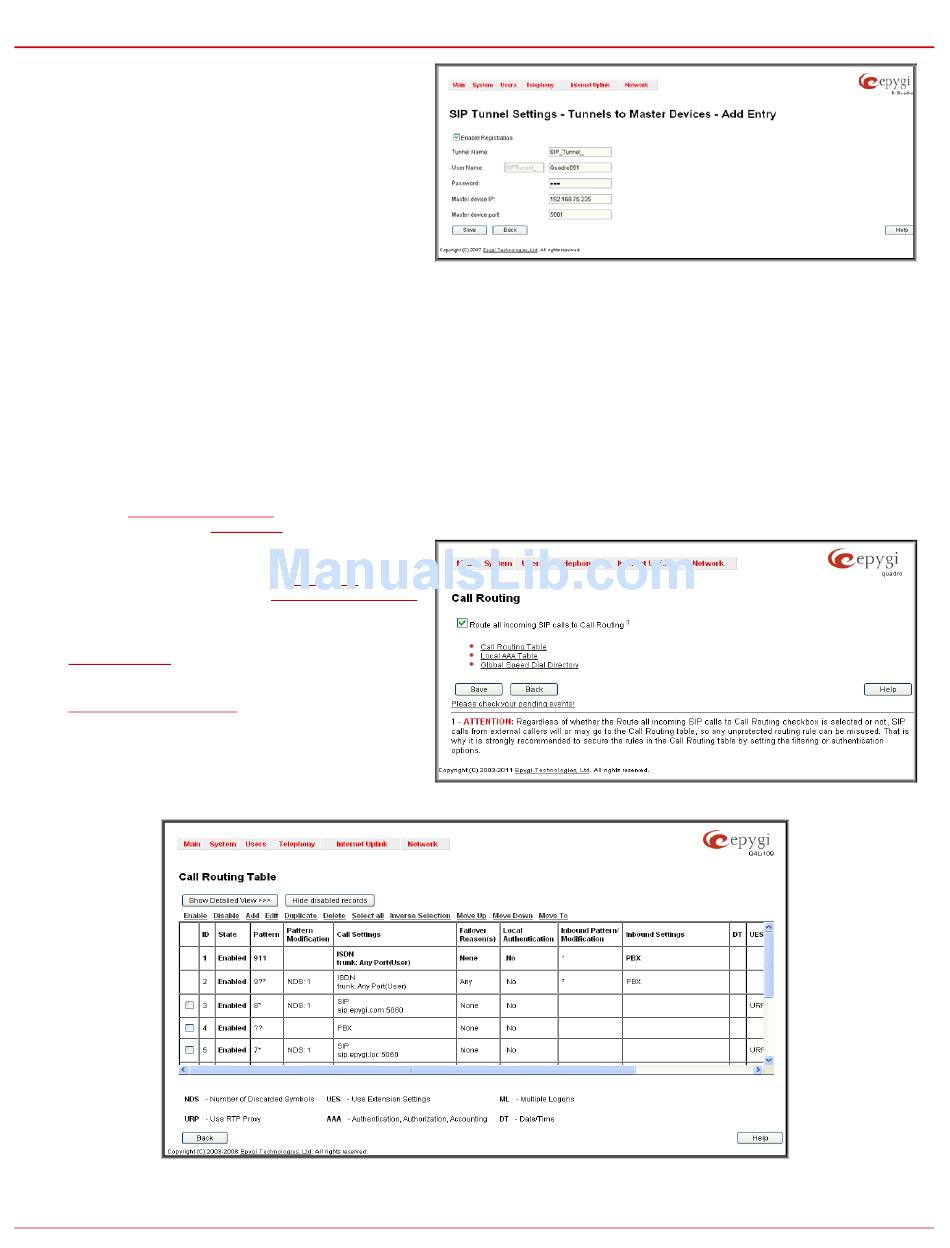

Fig. II-158: SIP Tunnel Settings – Tunnels to Master Devices – Add Entry page
Fig. II-160: Call Routing table – brief preview
Administrator's Menus
Fig. II-159: Call Routing page
