Quadro4Li Manual II: Administrator's Guide
The SIP IDS Settings
components:
Enable SIP IDS checkbox selection allows to prevent the SIP
attacks.
The Add the IP address into the Blocked IP list in Firewall
checkbox allows to block SIP attacker's IP address. SIP
attacker's IP address will be blocked by Quadro Firewall and
will be added on the Firewall Blocked IP List table.
The Discard SIP messages from IP address for checkbox
allows to discard the accumulated SIP messages from the
Quadro SIP cash after defined timeout (default timeout value of
"Discard SIP messages from IP address for" service is 32
seconds).
The Exceptions link leads to the Exceptions for SIP IDS
page where user can require the trusted IP address(es) that
can't be blocked.
Add opens the page Exception IP- Add Entry, where a
trusted IP address can be established.
Delete removes the selected entries from the IP address table.
Select all selects all entries of the table.
Inverse Selection inverses the current selection (if no record
is selected, clicking on inverse selection will check all records).

Status

The system status window displays non-editable tables providing extensive system status information about Quadro:
Status, Lines Status, Memory
page lead to device Transfer Statistics, user mailboxes and supplementary services configuration pages.
The System Status page has several tables providing system information.

General Information

The General Information page includes the following
information:
Uptime duration - Period Quadro is running since last
reboot.
Device hostname - Quadro device host name.
Quadro Operating System - Quadro operating system
version.
Application Software - Software and file system versions of
the Quadro.
Boot Loader - Quadro boot loader version.
DSP Software - Quadro DSP software version and the date
of build.
Language Pack – this field is present only when the custom
language pack is uploaded and it indicates the version.
Quadro4Li; (SW Version 5.3.x)
page includes the following
Status, Hardware Status, SIP Registration Status, IP Lines Registration Status
Administrator's Menus

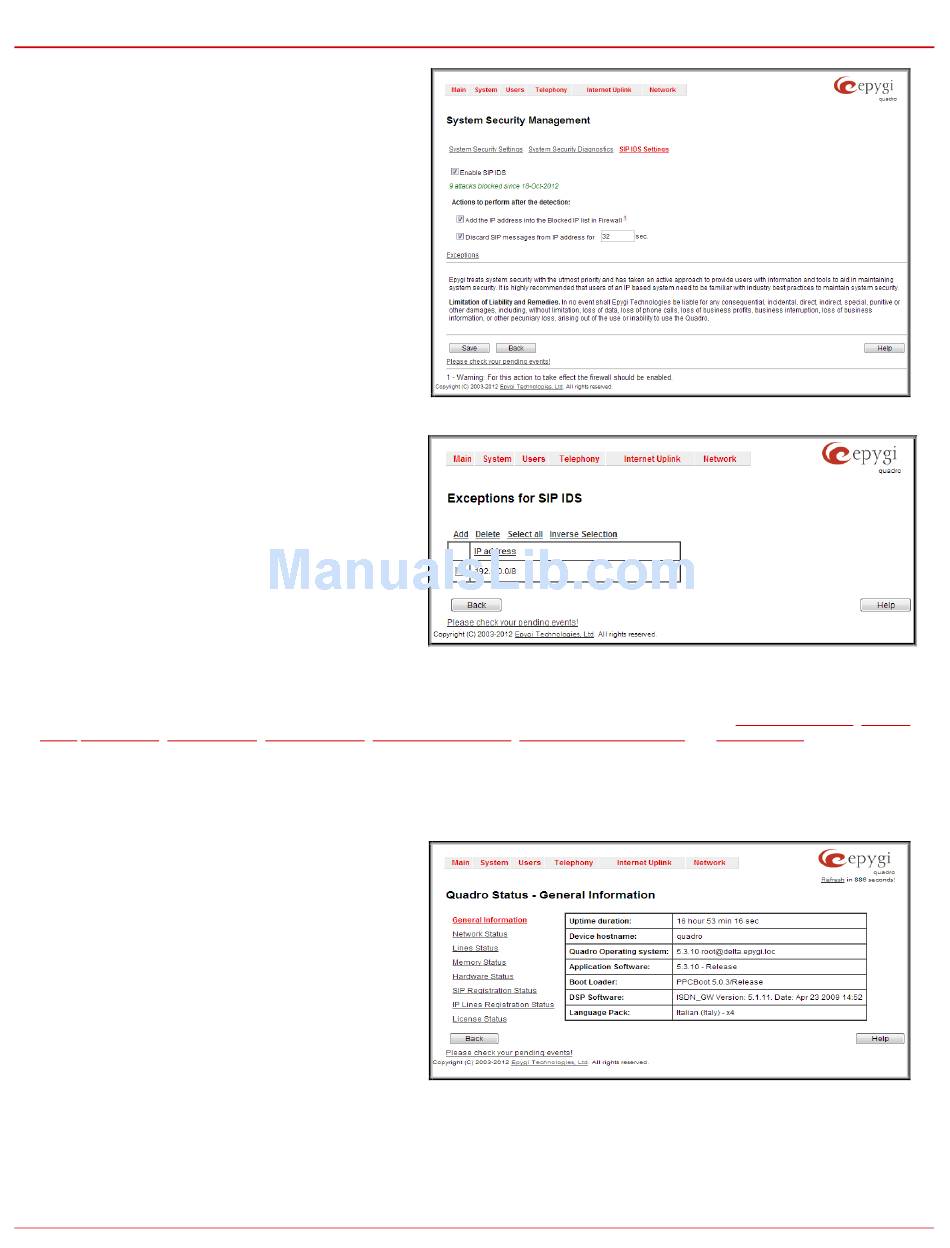

Fig. II-14: Quadro SIP IDS Settings page
Fig. II-15: Exceptions for SIP IDS Table
General Information,
and License Status. The links on this
Fig. II-16: Quadro Status - General Information page
Network
13
