Receive Overrun Errors - number of received
overrun errors that occur when the receive buffer
is not large enough to hold all incoming packets.
This error usually appears due to a slow receiving
system.
•
Receive MultiCast Packets - number of received
broadcast packets.
The area Transmit Values provides the following:
•
Transmit Bytes - number of transmitted bytes
•
Transmit Packets - number of transmitted
Ethernet packets.
•
Transmit Errors - number of transmitted packets
containing errors.
•
Transmit Drop Errors - number of transmitted
packets that have been discarded.
•
Transmit Carrier Errors - number of transmit
carrier errors that occur due to a defective or lost
connection on the Ethernet link.
•
Transmit Collisions - number of transfer errors
that occurred during a simultaneous packet
transmission from both sides.
To see the Transfer Statistics Diagram Charts, select the
desired criteria and click Show to generate the corresponding
chart and the table showing the transfer statistics values (if
enabled). The letters M (millions) and K (thousands) used in
the legend of the displayed diagrams show the total number of
specified criteria. The Reset Statistics button is used to reset
the chart and the table (if enabled).

Lines Status

The table Lines Status shows the current status of each IP line and ISDN trunk with all details of active calls. Since only one line information is
displayed at a time, the IP Line and ISDN Trunk functional buttons are used to navigate through the other IP lines' or ISDN trunks' information.
The Lines Status table displayed for IP lines includes a group of static and dynamic parameters. Static parameters are always displayed. Dynamic
parameters only appear when an event takes place on the extension.
Quadro4Li; (SW Version 5.3.x)
Administrator's Menus

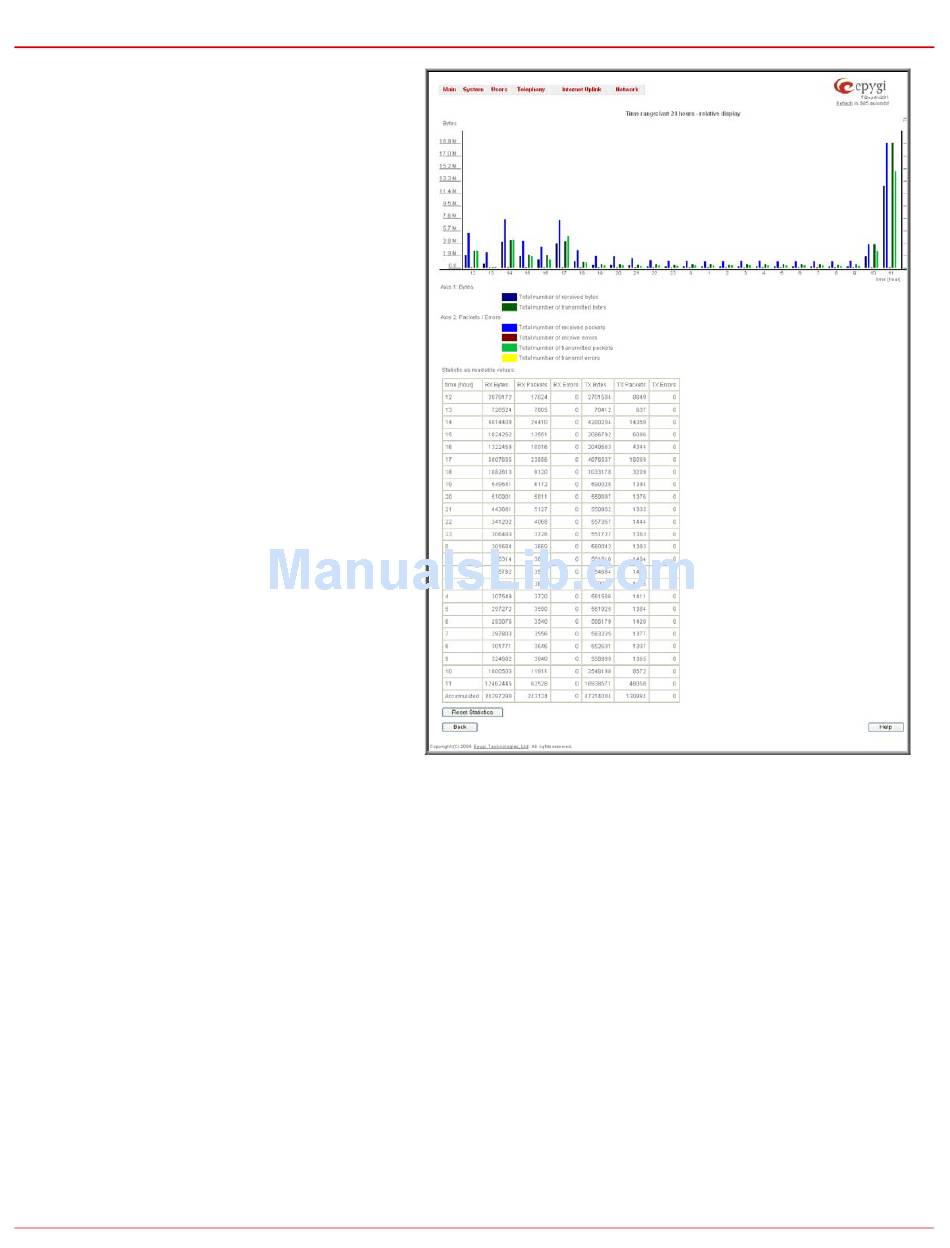

Fig. II-19: Transfer Statistics Diagram Chart
