Fortin RF641W Quick Installation Manual

EVO-ONE EVO-ONE
ALL-IN-ONE DATA INTERFACE
REMOTE STARTER / ALARM

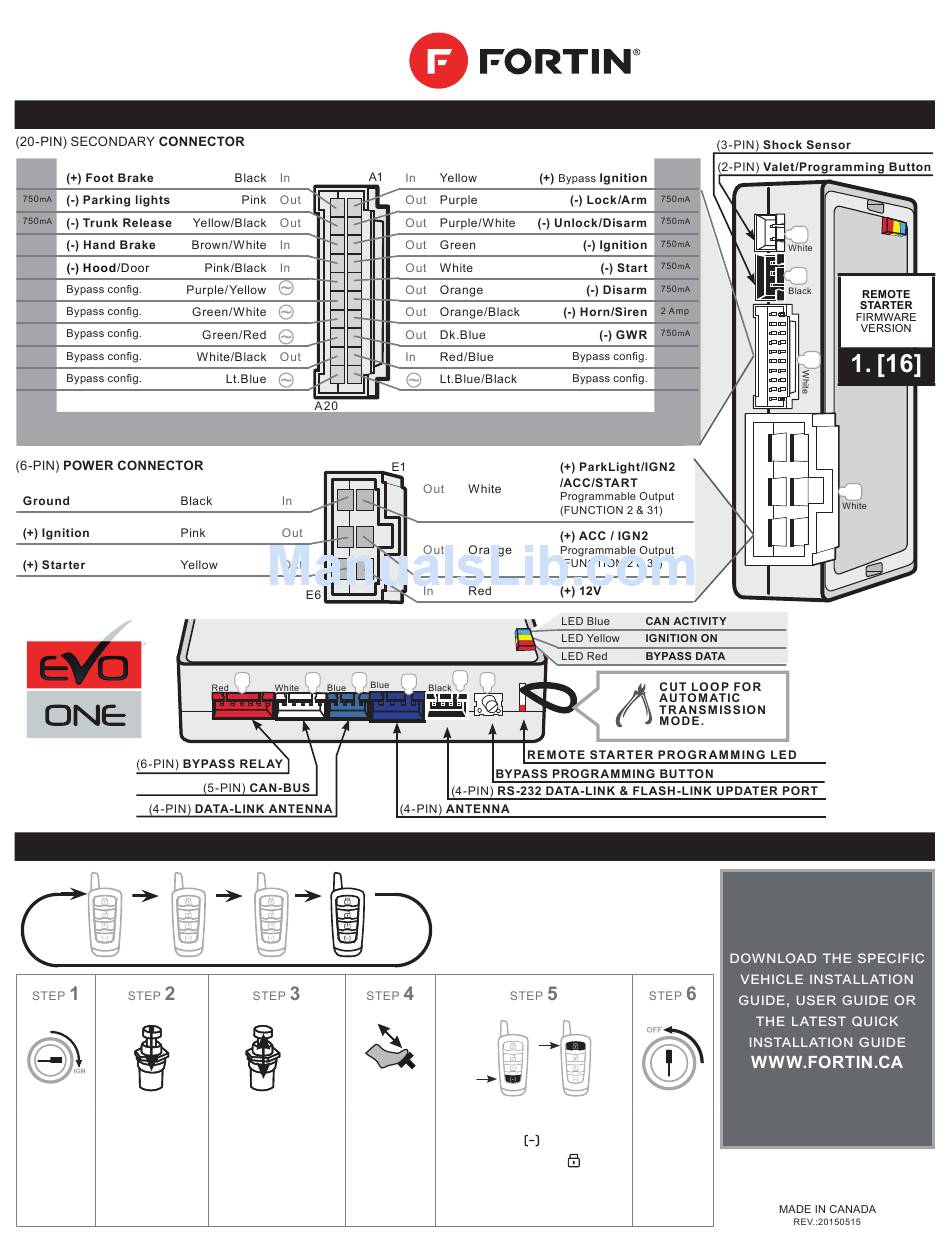

WIRING / CONNECTION GUIDE
750 mA MAXIMUM OUTPUT. Do not exceed the maximum current or permanent damage to the module
PROGRAMMING REMOTE TRANSMITTER(S)
1 2
Turn the Press and hold
Ignition the valet switch
ON. until the parking
lights turn ON,
the horn/siren
will chirp.
will occur that will not be covered under warranty.
D C B
3 4
x5
x1
Press and release the Press and
valet switch fi ve time. release the
The parking lights will brake pedal
fl ash and the horn/ once.
siren will chirp each
time to confi rm.
I
J
H
The system can learn up to a maxi-
mum of 4 transmitters.
Any transmitters can be stored in
more than 1 memory slot.
When a 5th transmitter is learned
the 1st remote is erased (FIFO).
On each Transmitter press and
release the button then
press and release the button.
The parking lights will fl ash to
confi rm.
INSTALLATION GUIDE
G
F
A
Turn the
Ignition
OFF to exit
program- Copyright © 2014-2015,
FORTIN AUTO RADIO INC
ming.
ALL RIGHTS RESERVED
QUICK
RF641W
E
