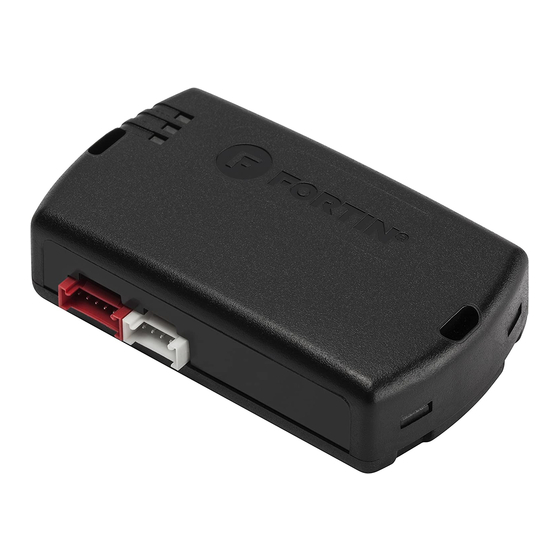

Fortin EVO-ALL Manual

Connect to revo
Hide thumbs Also See for EVO-ALL:
1
2
3
4
5

Advertisement

Table of Contents

ALL
REVO

Parts required (not included):

1
2
3
GUIDE # 88761 - REV.: 20190715
1x FLASH-LINK UPDATER
1x Microsoft Windows Computer with Internet connection
Plug in the FLASH-LINK UPDATER into the computer's USB port with the
provided USB cable.
Run Flash Link Manager Software.
EVO-ALL
into the FLASH-LINK UPDATER with provided
Plug in the
DATALINK cable.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVO-ALL and is the answer not in the manual?

Questions and answers

Related Manuals for Fortin EVO-ALL

Summary of Contents for Fortin EVO-ALL

  • Page 1 Parts required (not included): 1x Microsoft Windows Computer with Internet connection Plug in the FLASH-LINK UPDATER into the computer’s USB port with the provided USB cable. Run Flash Link Manager Software. EVO-ALL into the FLASH-LINK UPDATER with provided Plug in the DATALINK cable.
  • Page 2 PAGE 2 / 4 A. Click on BYPASS tab. B. Activate Supported RF Kits to ON C. Activate Option H3 – CrimeStopper D. Click SAVE OPTIONS E. Wait for the Options Saved message to appear in the top right corner. Disconnect the EVO-ALL.
  • Page 3 REVO PAGE 3 / 4 FUSE FUSIBLE 12V Battery (+) Black Ground | Masse (-) Battery (+) Ground RFA2A Masse BLACK FEMALE REVO CONNECTOR NOT CONNECTED ANTENNA --------------------- CONNECTEUR ANTENNE NON BRANCHÉ FEMELLE NOIR BLACK 4-PIN CONNECTOR CONNECTEUR REVO 4-PIN NOIR ANTENNA CABLE BLUE FEMALE CÂBLE ENTENNE...
  • Page 4 REVO PAGE 4 / 4 TO PROGRAM REMOTES ON THE UNITS WITH EVO-ALL MODULE WITH IGNITION SWITCH Press and hold programming button: Insert the 4-Pin (Data-Link) Turn the HOLD connector. Ignition ON.  The Blue, Red, Yellow and Blue & Red LED’s will alternatively illuminate.
  • Page 5 This module must be install by qualified technician. This instruction guide may change without notice. To download the installation guide, user guide, or the latest quick installation guide, visit: www.fortin.ca Technical support: TEL: 514-255-4357 / 1-877-336-7797 Copyright ©...
