Venue Wideband Receiver

Pre-coordinated Frequencies

Interference from IM (intermodulation) is a potential
problem in all multi-channel wireless systems, so proper
frequency coordination is always required to avoid
noise, range and dropout problems. Your options to ac-
complish this include:
• Using the pre-coordinated frequency groups
• Performing a system checkout
(See Multi-channel System Checkout)
• Calling Lectrosonics for assistance

Compatible Frequency Table

Groupings of compatible frequencies have been cre-
ated to minimize intermodulation problems in multiple
channel wireless systems. The frequencies can be used
with Digital Hybrid and analog Lectrosonics wireless
equipment. Compatibility with other brands is likely, but
not guaranteed by Lectrosonics.
The table provides two different sets of pre-coordinated
frequencies for frequency blocks 470 through 29. The
table is constructed to create a visual pattern of com-
patible frequencies to make it easier to use. The fre-
quencies are stored in memory in various products and
included in the VRpanel software.
26

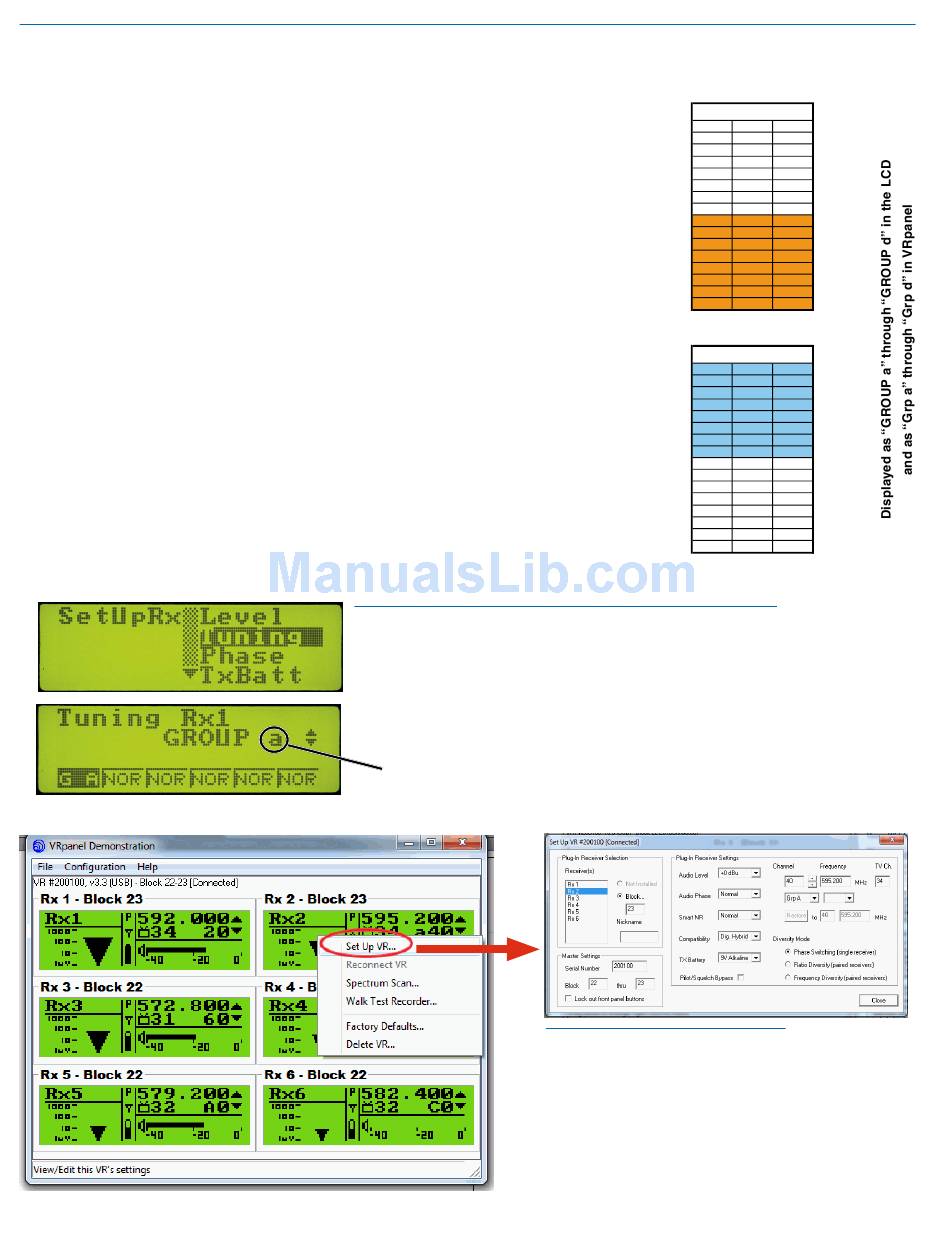

Pre-coordinated fre-
quencies are arranged
in four groups as shown
at right.
The uppermost eight
frequencies comprise
Grp a, the eight just
below them comprise
Grp b, and so on.
Example: Frequencies by Block, Frequencies will vary by block.
Select a
through d
BLOCK 22
FREQ
563.700
564.300
565.200
565.800
567.100
568.000
568.500
569.300
575.700
577.900
578.600
579.900
581.700
582.600
585.200
587.500
BLOCK 22
FREQ
570.100
570.700
571.600
572.200
573.200
574.400
574.900
575.500
581.100
582.100
582.600
584.300
585.000
585.600
586.300
588.100
Example: Right click on the receiver
display in the VR panel, and then select
"Set Up VR" to get the screen above to
select the transmitter groups.
LECTROSONICS, INC.
SW SET US TV CH
0,5 tv29
0,B tv29
1,4 tv29
Grp a
1,A tv29
2,7 tv30
3,0 tv30
3,5 tv30
3,D tv30
7,D tv31
9,3 tv31
9,A tv32
Grp b
A,7 tv32
B,9 tv32
C,2 tv32
D,C tv33
F,3 tv33
SW SET US TV CH
4,5 tv30
4,B tv30
5,4 tv30
Grp c
5,A tv31
6,4 tv31
7,0 tv31
7,5 tv31
7,B tv31
B,3 tv32
B,D tv32
C,2 tv32
Grp d
D,3 tv32
D,A tv32
E,0 tv32
E,7 tv32
F,9 tv32
