Venue Wideband Receiver

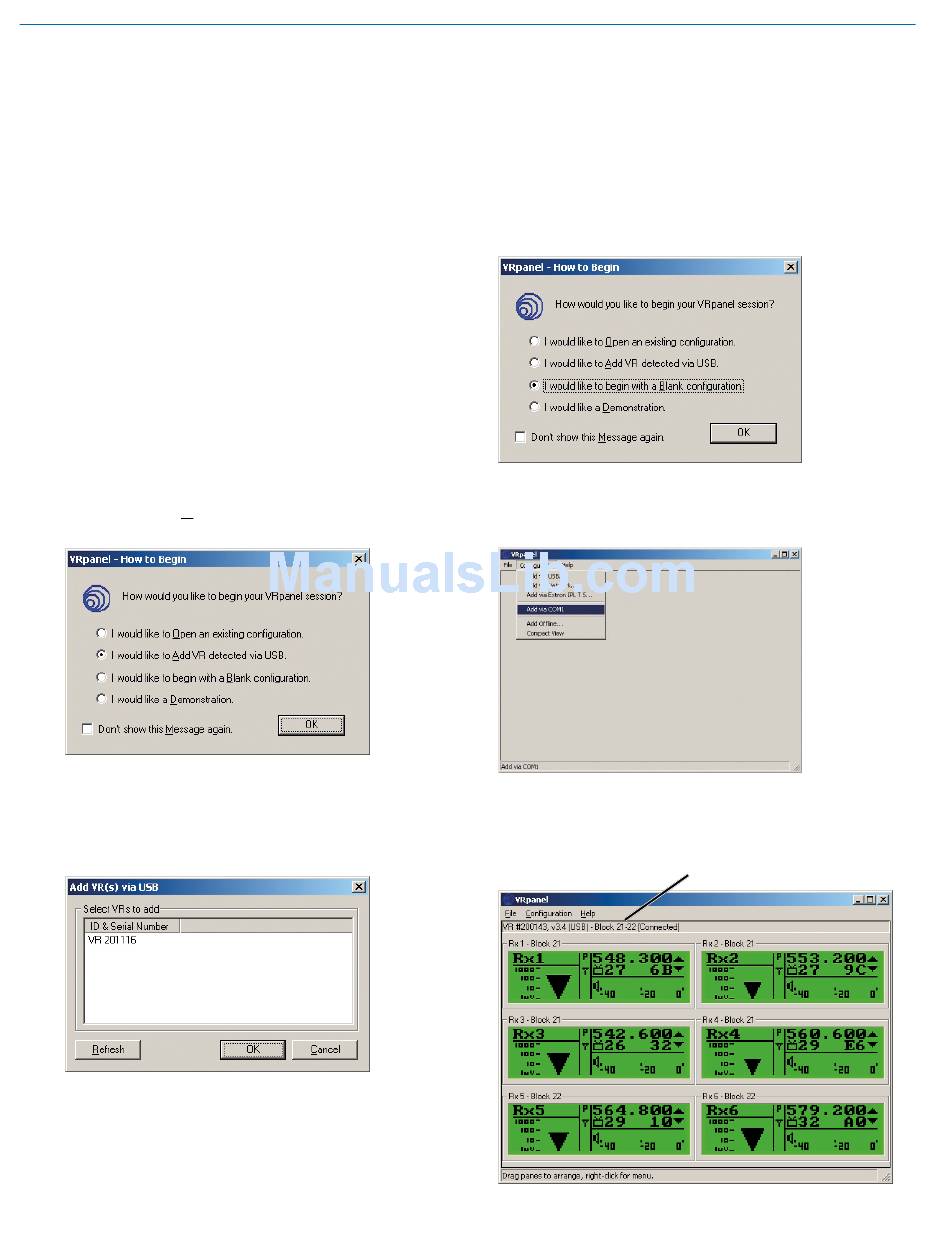

Setting Up the Venue Receiver Using VRpanel

Once the LecNet2 software and USB drivers have
™
been installed, the Venue receiver can be configured
with a software interface and a computer using a Win-
dows 2000, XP or Vista
®
VRpanel is an intuitive software package that simplifies
the setup and operation of the Venue receiver. This sec-
tion of this manual is limited to the basic setup and con-
figuration. More detailed explanations concerning usage
and configuration are contained in the online Help.
The online Help also documents the serial commands
used by external devices, including AMX
remote control systems, that can be used to control the
Venue system.

Opening VRpanel with USB Port

1. Lauch VRpanel from Start/All Programs/LecNet2,
or from a shortcut you create yourself.
2. When the "How to Begin" dialog box appears, select
I would like to Add VR detected via USB and
click OK.
3. The Add VR(s) via USB dialog lists the ID & Serial
Number of all Venue Systems connected to the
computer via the USB. Select the VR (Venue receiv-
er) to be monitored or configured and then click OK
to add the receiver to the VRpanel configuration.
22
operating system.
TM
and Crestron
®

Opening VRpanel with a COM Port

1. Lauch the VRpanel software from Start/All Pro-
grams/LecNet2, or from a shortcut you create
yourself.
2. Click on I would like to begin with a Blank con-
figuration.
®
3. Click on Add via COM1 (or whichever COM port
is to be used) under the Configuration menu to the
receiver to the configuration.

VRpanel Main Window

The Main Window shows all connected Venue receivers
with real time information for each receiver module.
Receiver information
LECTROSONICS, INC.
