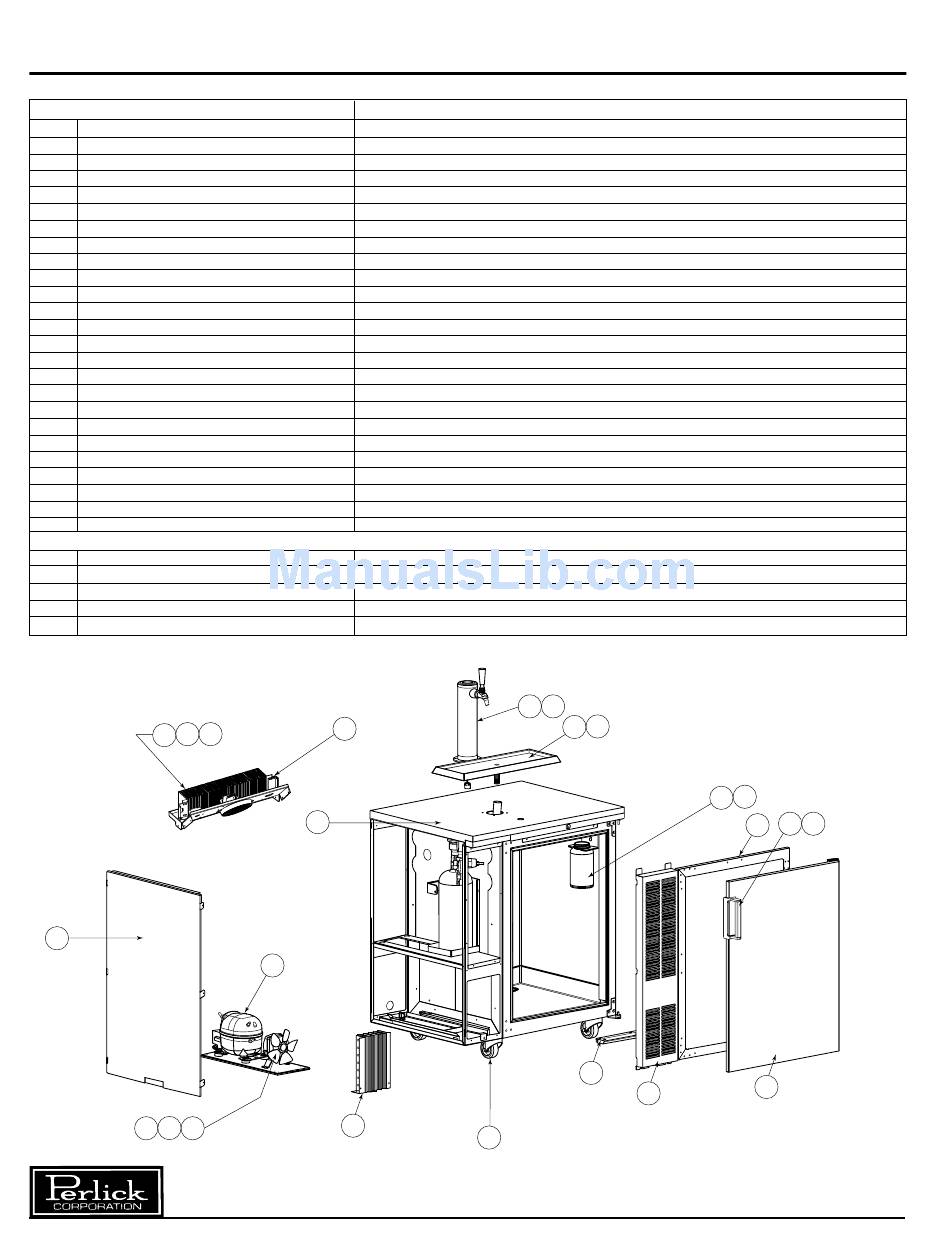

Replacement Parts –
MODEL NOS.
Item Description
1 Compressor for R134a
2 Condenser fan motor
3 Condenser fan motor bracket
4 Condenser fan blade
5 Side panel
6 Front grille
7 Condenser
8 Evaporator fan blade - 4"
9 Evaporator fan motor
10 Evaporator assembly - complete
11 Top assembly
12 Temperature control
13 Door assembly
14 Magnetic door gasket
15 Door sill
16 Door handle
16A Door handle bracket
17 Swivel caster
18 Waste bottle
19 Waste bottle holder
20 Drip pan assembly
20A Drain insert
21 Dispensing head draft arm complete w/ Faucet
21A Faucet
Parts Not Shown on Drawing
Wiring harness
Power cord
Top evaporator
Top
Liquid and Suction line assembly
9 10
8
5
2 3 4
Form No. Z2268
Single Keg Beer Dispensers
12
11
1
7
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
DP32S & DS32S
Part #'s
63778
63807
65166-1
63808
66215-1SS
66210-8SS
65528
63461
C15239A
66295
66230-32T
61271
66256-1
66237-4
65500-1
C31409-1
65189-1
57788
C24392-1
65524-1
65507
65510-1
63251
408X
65531
65532
65532
65529
21
21A
20
20A
15
17
10
19
18
16
16A
14
13
6
