Appendix C - Frame Formats

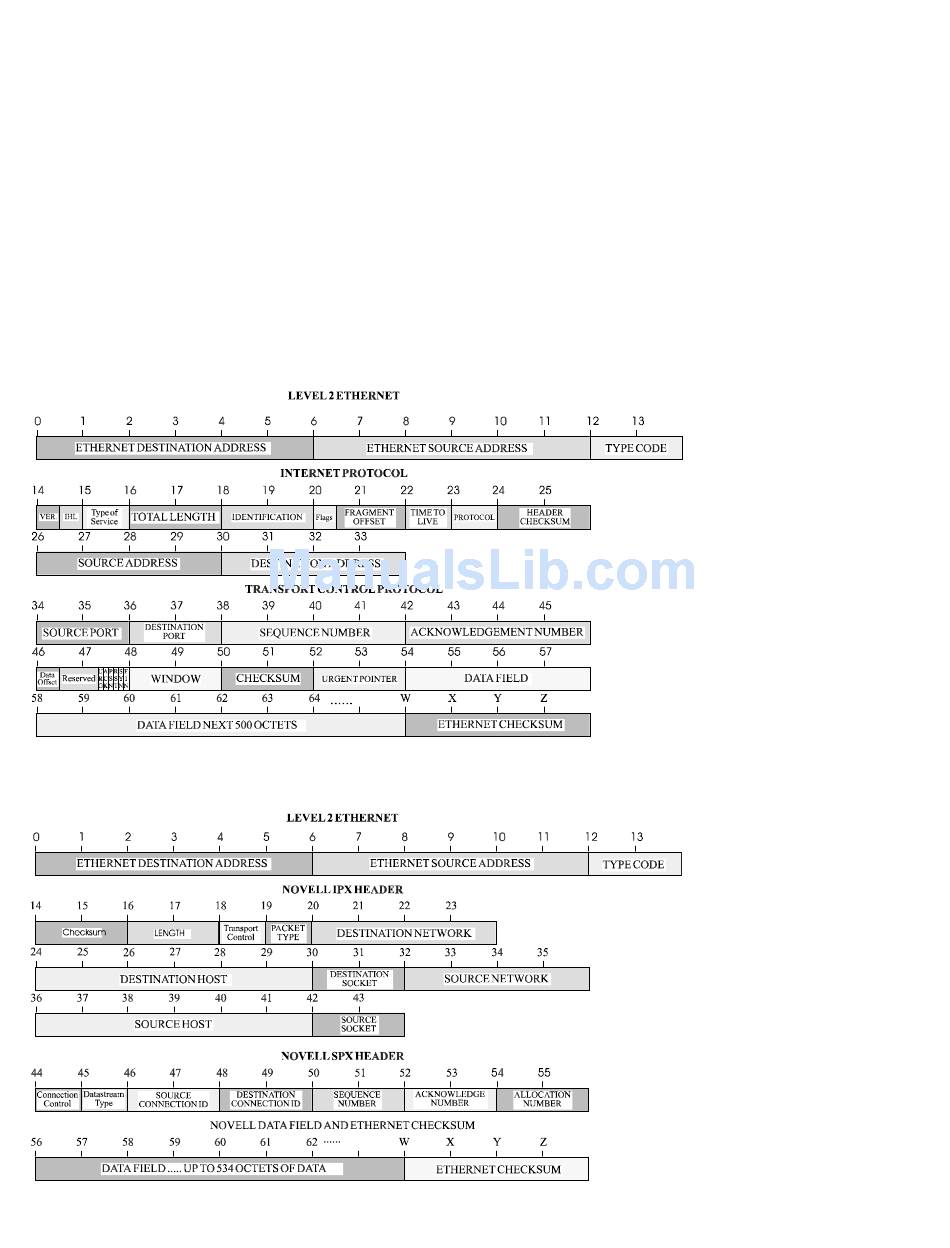

This appendix provides octet locations for the various portions of three of the common Ethernet frames. When creating

pattern filters these diagrams will assist in the correct definition of the patterns. The offset numbers are indicated by the

numbers above the frame representations.

Note the differences in the TCP/IP and Novell frames when bridging and when routing. When routing, the TCP/IP and

Novell frames are examined after the Level 2 Ethernet portion of the frame has been stripped from the whole data frame.

This means that the offset numbers now start from 0 at the beginning of the routed frame and not the bridged frame.

Some of the common Ethernet type codes are also shown here. The Ethernet type codes are located at offset 12 of the

bridged Ethernet frame.

IOLINK-PRO & 520 Reference Manual — C.1
