BUILD-IN APPLIANCES
MODELS

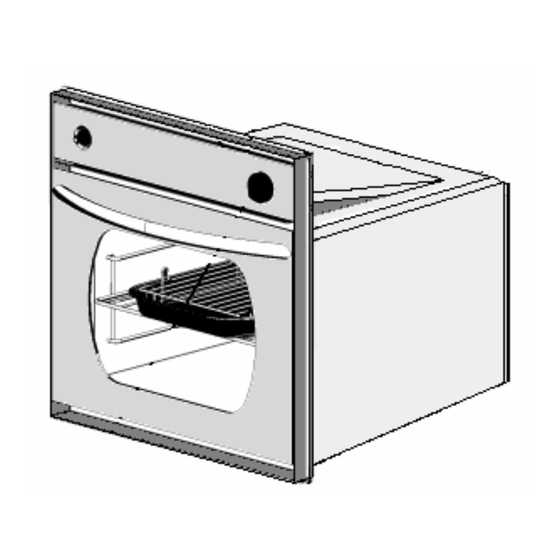

S~OG70000Z – DUPLEX
S~OV70000Z – OVEN
FOR USE WITH PROPANE GAS
USER AND INSTALLATION INSTRUCTIONS
PLEASE READ THOROUGHLY AND KEEP FOR FUTURE
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
41 LARA WAY CAMPBELLFIELD VIC
TEL: 03 9358 0700
FAX: 03 9357 7060
Advertisement
Related Manuals for Thetford S~OG70000Z
Summary of Contents for Thetford S~OG70000Z

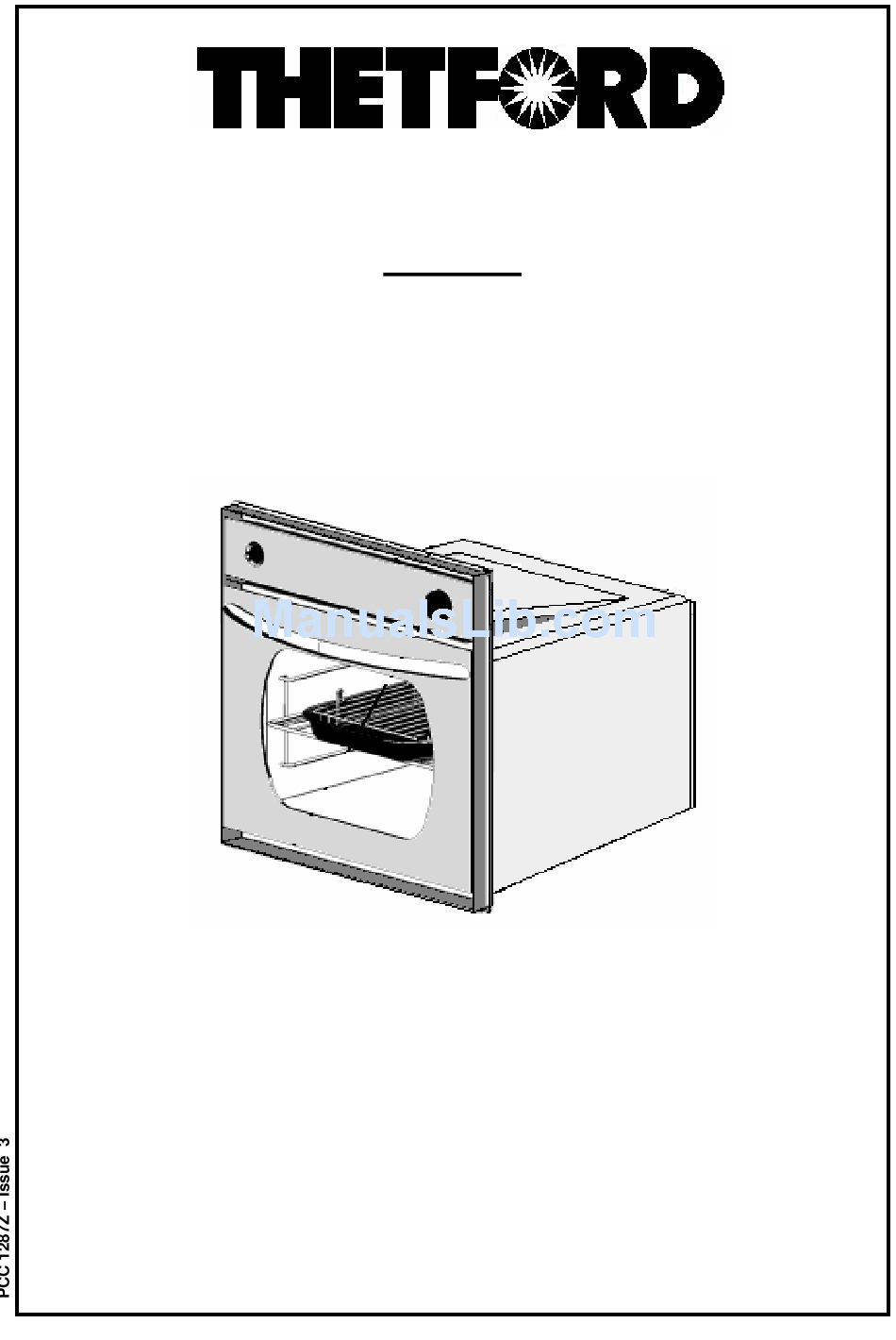

- Page 1 BUILD-IN APPLIANCES MODELS S~OG70000Z – DUPLEX S~OV70000Z – OVEN FOR USE WITH PROPANE GAS USER AND INSTALLATION INSTRUCTIONS PLEASE READ THOROUGHLY AND KEEP FOR FUTURE FOR USE IN AUSTRALIA THETFORD AUSTRALIA PTY LTD 41 LARA WAY CAMPBELLFIELD VIC TEL: 03 9358 0700...
- Page 3 ………………………………………………… Installation Instructions ………………………………………………… Maintenance & Servicing ………………………………………………… SPECIFICATION DUPLEX OVEN ONLY Model S~OG70000Z S~OV70000Z External Dimensions, mm 445 x 456 x 440mm 445 x 456 x 440mm (HxWxD) Oven Capacity, litres No. of tray positions Grill 2, Oven 4...
- Page 4 INTRODUCTION In your own interest of safety, gas appliances should be installed by competent persons. Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance shall be installed in accordance with the manufacturers installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations.
- Page 5 OPERATION IMPORTANT • The grill MUST only be used with the door open. • When grilling the oven shelf should be located on the middle runner. • The heat deflector below the fascia should be pulled out prior to lighting the grill.
- Page 6 OPERATION Using the Oven WARNING When cooking always ensure young children are kept away. 1. Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn off at gas cylinder/mains and contact supplier. 2. To light: Open door, push in the control knob and turn to gas mark 9. Hold a lighted match or taper to the burner and push the control knob in and hold.
- Page 7 OPERATION Cooking Guidelines Best results will be obtained by the shelf positions in this guide. It is not necessary to preheat the oven but advisable for a range of dishes. The oven is capable of full temperature in 15-20 minutes. Most cookery books give details of the shelf positions and gas mark settings for each recipe.
- Page 8 OPERATION Leaks If a smell of gas becomes apparent, the supply should be turned off at the cylinder IMMEDIATELY. Extinguish naked lights including cigarettes and pipes. Do not operate electrical switches. Open all doors and windows to disperse any gas escape. Propane gas is heavier than air;...
- Page 9 INSTALLATION Regulations and Standards In your own interest of safety, gas appliances should be installed by competent persons. Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance shall be installed in accordance with the manufacturers installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations.
- Page 10 INSTALLATION Fixing There are 8 fixing screw positions, located as follows. (A) – 2 in each side trim of the Grill opening (B) – 2 in each side trim of the Oven opening Make sure the appliance is fully home in the cabinet/aperture. Open the Oven door and fix the screws in position.
- Page 11 MAINTENANCE & SERVICING IMPORTANT • All servicing must be carried out by an approved competent person. • After each service the appliance must be checked for gas soundness This appliance needs little maintenance other than cleaning. All parts should be cleaned using warm soapy water.
- Page 12 MAINTENANCE AND SERVICING 6. Grill burner injector (No62) Disconnect from gas supply (1). Remove appliance from housing (2). Remove the spring retainer from the injector holder, disengage the grill pipe from the control and remove the injector. 7. Oven burner injector (No65) Open the oven door and unscrew the burner retaining screw, slide the burner to the left and lift out.
