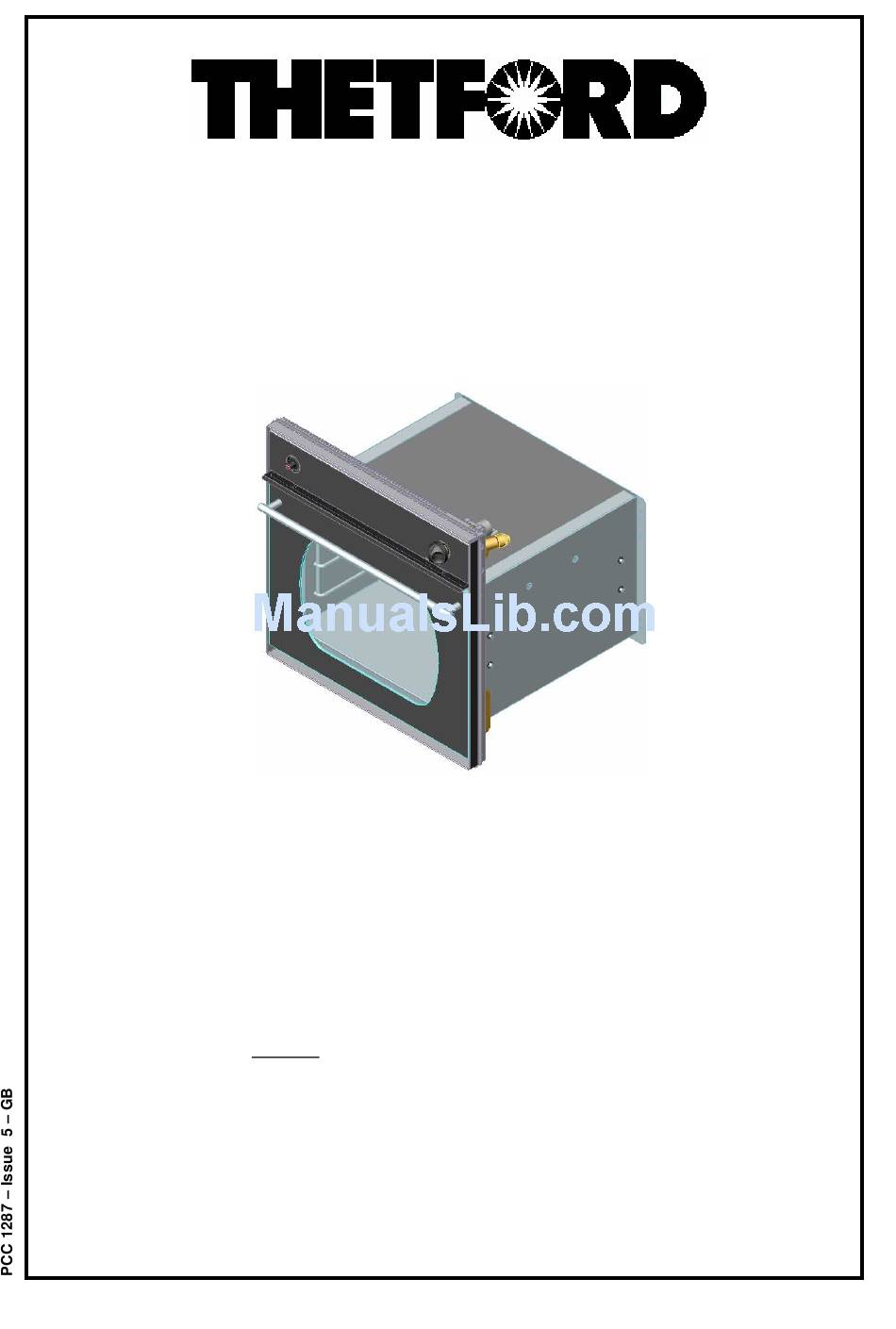

BUILD IN APPLIANCES
FOR USE WITH LIQUIFIED PETROLEUM GAS
S~OG70000 Duplex Oven & Grill
S~OV70000 Mk3 Oven Only
USER AND INSTALLATION INSTRUCTIONS
FOR USE IN: -
GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE
WARNING
•
Only use this appliance in a well-ventilated area.
•
Read the instructions before use.
•
This appliance must be installed in accordance
with the regulations in force.
THETFORD LIMITED
UNIT 19 Oakham Drive, Parkwood Industrial Estate
Rutland Road, Sheffield S3 9QY, ENGLAND.
TEL: + 44 (0) 114 273 8157
MODELS
FAX: + 44 (0) 114 275 3094
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thetford S~OG70000
Summary of Contents for Thetford S~OG70000
- Page 1 BUILD IN APPLIANCES FOR USE WITH LIQUIFIED PETROLEUM GAS MODELS S~OG70000 Duplex Oven & Grill S~OV70000 Mk3 Oven Only USER AND INSTALLATION INSTRUCTIONS FOR USE IN: - GB, IE, FR, NL, BE, LU, ES, IT, NO, DE, DK, SE WARNING •...
- Page 4 INTRODUCTION This appliance is designed for cooking foods any other use is incorrect and dangerous. Failure to install the appliance correctly or improper use will invalidate any warranty or liability claims. This appliance must be installed in accordance with the local, national and European regulations in force.
- Page 5 OPERATION WARNING • The grill MUST only be used with the grill door open. • The heat deflector below the fascia should be pulled out prior to lighting the grill. Never adjust the heat deflector position without using hand protection – ie oven gloves. •...
- Page 6 OPERATION Oven Temperature Control The oven temperature is controlled by a thermostatic gas tap and is variable over the range 130° C to 240° C. The temperature settings on t he control knob refer to the centre of the oven and at any particular setting the oven will be hotter at the top and cooler towards the base.
- Page 7 IMPORTANT • If it is not possible to install the appliance as per our recommendations, refer to Spinflo by Thetford for guidance. • Construction materials - all cooking appliances become hot during use. It is important the installer verifies the furniture construction material is suitable for the application - i.e.
- Page 8 INSTALLATION Gas Connection The Ø8mm gas inlet is located to the rear of the appliance. Prior to connection remove the plastic protection plug from the fitting. The appliance MUST be connected using metal pipe manufactured from either copper, seam welded steel, seamless steel or stainless steel, which complies to the requirements of EN1949, rubber tubing MUST NOT be used.
- Page 9 SERVICING 5. Grill burner injector (No62) Disconnect from gas supply (1). Remove appliance from housing (2). Release injector holder from bracket, disengage the grill pipe from the control and remove the injector. 6. Oven burner injector (No59) Open the oven door and unscrew the burner retaining screw, slide the burner to the left and lift out.
