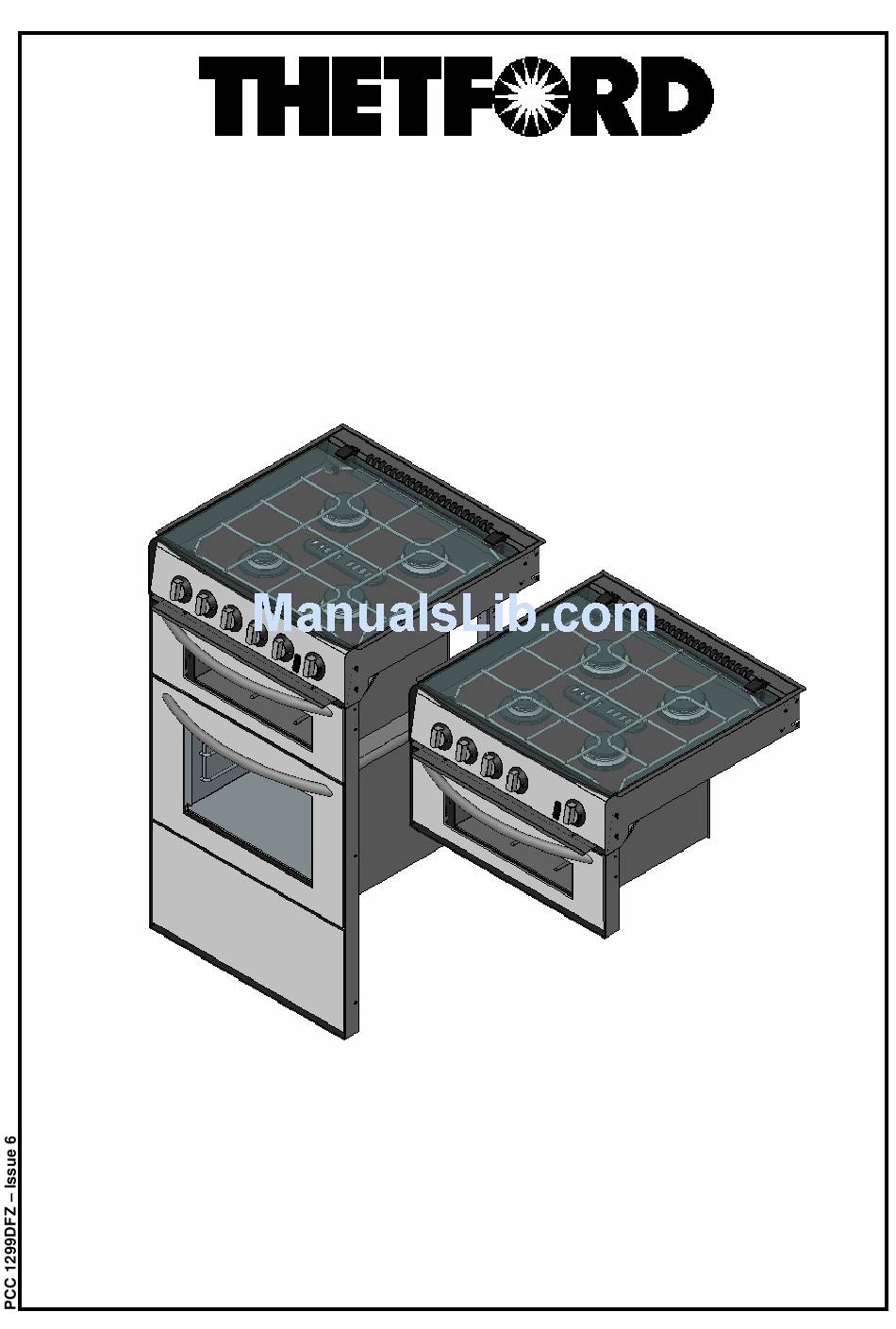

BUILD IN APPLIANCE
FOR USE WITH PROPANE GAS
MODELS:
S~OH72000 MK3 CAPRICE (ALL GAS)
S~HG72000 MK3 MINIGRILL (ALL GAS)
S~OH73000 MK3 CAPRICE (DUAL FUEL)
S~HG73000 MK3 MINIGRILL (DUAL FUEL)
USER AND INSTALLATION INSTRUCTIONS
PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
41 LARA WAY CAMPBELLFIELD VIC
TEL: 03 9358 0700
FAX: 03 9357 7060
Advertisement
Table of Contents
Related Manuals for Thetford S~OH72000
Summary of Contents for Thetford S~OH72000
- Page 1 BUILD IN APPLIANCE FOR USE WITH PROPANE GAS MODELS: S~OH72000 MK3 CAPRICE (ALL GAS) S~HG72000 MK3 MINIGRILL (ALL GAS) S~OH73000 MK3 CAPRICE (DUAL FUEL) S~HG73000 MK3 MINIGRILL (DUAL FUEL) USER AND INSTALLATION INSTRUCTIONS PLEASE READ THOROUGHLY AND KEEP FOR FUTURE REFERENCE...
- Page 5 INTRODUCTION This appliance must be installed in accordance with the manufacturers installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations. Particular attention shall be given to the requirements regarding ventilation. Read the instructions before installing or using the appliance The appliance is designed for either high or low level installations.
- Page 6 OPERATION • The appliance is not intended for use by young children or infirm persons, without supervision • Young children should be supervised to ensure they do not play with the appliance. • Glass lids may shatter when heated. Turn off all burners before shutting the lid •...
- Page 7 OPERATION • Glass lids may shatter when heated. Turn off the hotplate and allow it to cool before closing the glass lid. • Remove all spillage from the surface of the glass lid before opening. Using the Electric Hotplate Ensure the electricity is switched on. The hotplate control is numbered from 1 to 6.
- Page 8 OPERATION • The pan supplied with the appliance is multi functional, for use in grill or oven. • The handle can be removed or inserted whilst the pan is in use. • Always remove the handle when the pan is in use. Using the Grill 1.
- Page 9 OPERATION • The pan supplied with the appliance is multi functional, for use in grill or oven. • The handle can be removed or inserted whilst the pan is in use. • Always remove the handle when the pan is in use. Using the Oven 1.
- Page 10 OPERATION Care should be taken not to overload the oven, allow adequate spacing to ensure free circulation of heat. When roasting with aluminium foil ensure the foil does not impair circulation of heat or block anythe oven flue outlet. Temperature Dish Mark (Centre of Oven)
- Page 11 INSTALLATION Regulations and Standards This appliance must be installed in accordance with the manufacturers installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations. Particular attention shall be given to the requirements regarding ventilation. Read the instructions before installing or using the appliance Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.
- Page 12 INSTALLATION Fixing This appliance can be front or side fixed, holes are provided for either installation method. Front Fixed Appliance Side Fixed Appliance 1 front fix hole each side of Grill opening 1 side fix hole each side of Grill opening 1 front fix hole each side of Oven opening 1 side fix hole each side of Oven opening 2 fixing holes in each Hotplate side trim...
- Page 13 Who to Contact For service, please contact your authorised local Service Agent giving full details of the model, serial number and date of purchase. Manufactured by: THETFORD Limited. Unit 19 Oakham Drive, Parkwood Industrial Estate, Rutland Road, Sheffield. S3 9QX. England.
- Page 14 MAINTENANCE & SERVICING 5. Remove the grill burner assembly Shut off both gas & electric supply. Remove the hob surface (2). Release the locking screw on the injector holder. Unscrew the thermocouple from the control and remove the spark ignition lead from the generator. Lever off starlock washers from the grill flue, remove flue clamping screw from rear cross strut and remove flue.
