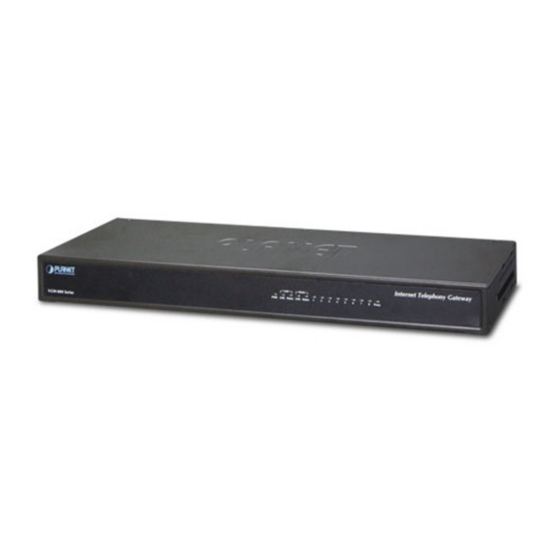

- Page 1 Internet Telephony Gateway VGW-804 / VGW-800FS / VGW-800FO Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Hardware Installation .................. 4 2.1 Safety Instructions ................4 2.2 Physical Introduction ................4 2.3 LED & Button Definitions ..............5 2.4 Placement ................... 6 2.5 Physical Connection ................6 3. Basic System Configuration ................. 7 3.1 Web Login .................. -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Internet Telephony Gateway, VGW-800 Series. This Quick Installation Guide will introduce how to finish the basic setting of connecting the web management interface and the Internet. Open the box of the Internet Telephony Gateway and carefully unpack it. The box should contain the... -
Page 4: Hardware Installation
2. Hardware Installation The following are instructions for setting up PLANET VGW-800 Series. Refer to the illustration and follow the simple steps below to quickly install your Internet Telephony Gateway. 2.1 Safety Instructions The following are the safety instructions for Internet Telephony Gateway system before installing. -
Page 5: Led & Button Definitions
DC 12V Reset Black: FXS (Phone) Gray: FXO (Line) Rear Panel of the VGW-800FO 2.3 LED & Button Definitions Function Description When the power adapter is connected, the LED will light up Power green. When the gateway is registered successfully to a SIP Proxy, this Proxy will light up green. -
Page 6: Placement
10/100BASE-TX RJ45 socket for LAN port, connecting to PC for management purpose. 10/100BASE-TX RJ45 socket for WAN port, connecting to wide area network. 12V DC The power socket -- input AC 100V~240V; output 12V DC, 3.33A. 2.4 Placement Make sure the device is placed in a safe environment to avoid equipment failure. z DO NOT place anything on top of the device. Excessive weight could damage it. -
Page 7: Basic System Configuration
3. Basic System Configuration 3.1 Web Login Step 1 Connect a computer to a LAN port on the VGW-800 Series. Your PC must be set to 192.168.0.X, the same domain as that of the VGW-800 Series. Step 2 Start a web browser. To use the user interface, you need a PC with Internet Explorer (version 8 and higher), Firefox, or Safari (for Mac). Step 3 Enter the default IP address of the VGW-800 Series: 192.168.0.1 into the URL address box. -
Page 8: Configuring The Network Setting
3.2 Configuring the Network Setting Step 1 Go to Device Setting Network Network Setting Page Step 2 Edit your WAN port IP information. There are three types of IP Support -- IPv4 only, IPv4/IPv6 and IPv6 only. There are also three types of WAN port connection -- Static IP, PPPoE (Point-to-Point Protocol over Ethernet) and DHCP. You can find detailed setting process in the user manual. -
Page 9: Changing Ip Address Or Forgotten Admin Password
3.3 Changing IP Address or Forgotten Admin Password To reset the IP address to the default IP address “192.168.0.1” (LAN) or reset the login password to default value, press the reset button on the front panel for more than 5 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx. Reset Button DC 12V Reset... -
Page 10: Further Configuration
You also can browse our online FAQ resource on the PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. PLANET online FAQ : http://www.planet.com.tw/en/support/faq.php?key=VGW-...
