3Port Vlan Setting - Raisecom ISCOM 1005M User Manual

1. Modify setting
Press "m" to modify the setting including：Admin(e：open，d：close)、Auto(e：
auto negotiation， d： non auto negotiation)、 speed (1： 100M， 0： 10M)、 Duplex(f：
full，h：half)、flow-C(e：enable flow control，d：disable flow control). After
modification, press "y" to save, press "n" not to save.
2. Download Ingress、upload Egress bandwidth management N x 32Kbps，N is
configurable. Select "y" to save; "n" not to save.
3. Press "q" to quit and return main manual
P.S: when auto negotiation is enabled, the status and working mode only depend on the
device located on the other end. Manually configuration is disabled.

5.2.3Port VLAN Setting

P.S: when Port VLAN group is created, 802.1Q VLAN group must be removed
firstly.

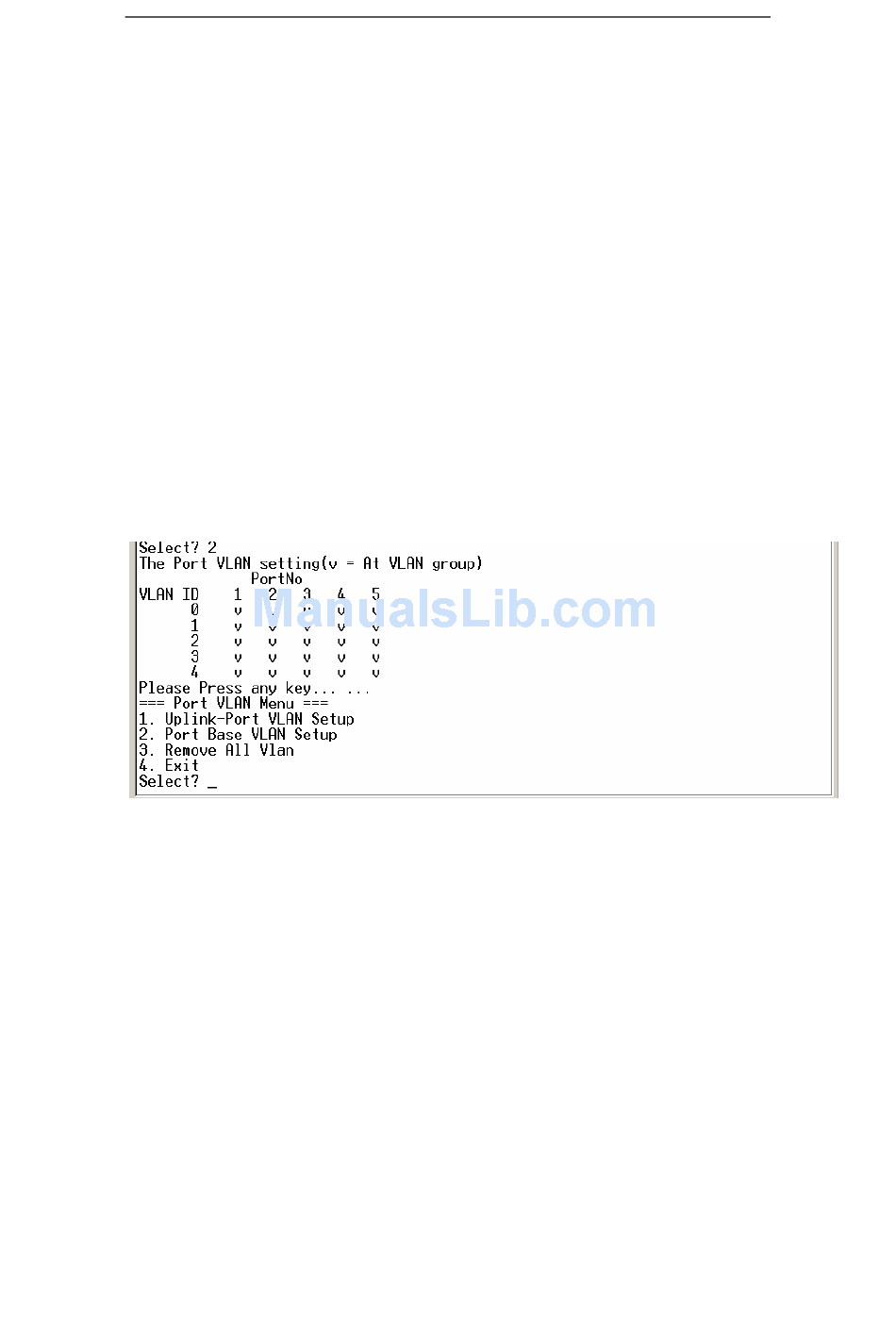

Select "2" to access Port VLAN setting interface.
Select "1": system will ask user to assign uplink port and other ports will be
isolated each other automatically. And each port VLAN includes uplink port.
