Summary of Contents for QUERIDOO Sportrex2

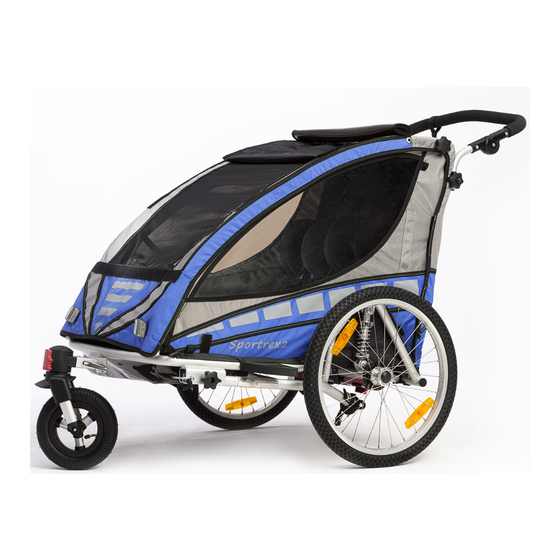

- Page 1 User manual Sportrex2 – Q6000A This product fulfils all safety requirements of the European standard for bicycles and bicycle trailers (DIN EN 15918).
- Page 2 Texts, values and illustrations may not be reproduced, distributed, used for competitive purposes or passed on to others. If other product names are used in this documentation, these must normally be regarded as registered trademarks of the respective manufacturer. 2 – 02|2016 – Subject to change. Sportrex2 – Q6000A...
-
Page 3: Table Of Contents
Installing the buggy wheel Mounting the tow bar Technical data Mounting the coupler onto a bicycle Warranty terms Utilisation Support information Spare parts Applying the parking brake Adjusting the push handle Subject to change. – 02|2016 – 3 Sportrex2 – Q6000A... -
Page 4: Introduction
1 month Maximum age 6 years Size Maximum height 117 cm Requirements for baggage Storage space (behind the seats) 5 kg Pouch for small items (under the push handle) 2 kg 4 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 5: Notes On The User Manual
The tow bar is therefore in front, the push handle behind. In this user manual, the word user refers to the person transporting children with the Sportrex2 and making the necessary adjustments on the vehicle. Subject to change. – 02|2016 – 5 Sportrex2 – Q6000A... -
Page 6: Safety Instructions
When in traffic, the weather canopy should also be closed and the ventilation window open to provide protection against exhaust fumes. 6 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 7: Passengers
Follow the instructions in the chapter “Storage” on page 29 for storing the ƒ Sportrex2 properly when it is not in use. Subject to change. – 02|2016 – 7 Sportrex2 – Q6000A... -
Page 8: Cycling With A Trailer
Always ride defensively and with foresight. ƒ Brake in good time before reaching bends, junctions, obstacles etc. ƒ Always negotiate curbs and uneven surfaces slowly. Keep away from steps, escalators and very ƒ steep stretches. 8 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 9: Product Overview
Remove the packaging material and all protective caps, and dispose of them in accordance with the environmental guidelines that apply in your region. Read the chapter “Assembly” on page 16 before you assemble parts. Subject to change. – 02|2016 – 9 Sportrex2 – Q6000A... -
Page 10: Components And Control Elements
Spoke reflector, orange Wheel mount on the cabin frame Air valve (Schrader valve) Front reflector, white Wheel guard for deflecting obstacles Tow bar holder on the cabin frame with cotter pin fastening 10 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 11: Rear View
(max. 5 kg baggage) Ventilation window, can be rolled up Pennant pouch for holding the pennant Pouch for small items, for max. 2 kg staff baggage Reflective seams in the fabric cover Subject to change. – 02|2016 – 11 Sportrex2 – Q6000A... -
Page 12: Accessories
Art. no.: Seat cushion Art. no.: SI-656 Rain cover 02133 Art. no.: Folding garage Art. no.: 035689 You can find our current list of dealers on the Internet at: http://www.qeridoo.com/index.php/en/haendlersuche-english 12 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 13: Assembly
Pull the rear frame rod assembly evenly back until it engages audibly. Push the stabiliser tubes from behind into the two slots in the side panels. These are located under the windows. Subject to change. – 02|2016 – 13 Sportrex2 – Q6000A... -
Page 14: Inserting The Wheels
– The holes on the wheel guard face the holes in the cabin frame tube. – The curved outside of the wheel guard widens towards the wheel. 14 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 15: Mounting The Push Handle
Danger! Make sure that the push handle is also mounted for every journey in Trailer mode. Only then does the cabin have a roll-bar. Subject to change. – 02|2016 – 15 Sportrex2 – Q6000A... -
Page 16: Tightening The Backrest
Insert the extended pennant staff into the pennant pouch on the outer left side. Unroll the pennant so that it can fly clearly visible on the pennant staff. 16 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 17: Optional Assembly Steps
Place the spring lock washer and the washer on the outside onto the screw and screw the star grip nut loosely into the thread. Subject to change. – 02|2016 – 17 Sportrex2 – Q6000A... -
Page 18: Mounting The Coupler Onto A Bicycle
Place the large hole of the coupler onto the left side of the rear wheel axle so that the coupler is facing outwards. – Screw on the dedicated nut and tighten it slightly. 18 – 02|2016 – Subject to change. Sportrex2 – Q6000A... - Page 19 The supplied universal coupler is suitable for mounting on most rear-wheel versions. If it does not fit your bicycle, you can find suitable special couplers and conversion sets on the Weber Technik GmbH website: www.weber-products.de Subject to change. – 02|2016 – 19 Sportrex2 – Q6000A...
-
Page 20: Utilisation
Swing the push handle to the desired height. Release the two pushbuttons in order to activate the engagement function. Move the push handle slightly up or down until the height adjustment engages audibly. 20 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 21: Setting The Mode
Instructions for re-mounting it can be found in Sportrex2 the chapter “Installing the buggy wheel” on page 17. Subject to change. – 02|2016 – 21 Sportrex2 – Q6000A... -
Page 22: Folding The Tow Bar In Or Out
Loading the storage space Undo the Velcro fasteners of the storage space cover and lift it. Pack larger items such as bags, toys or coats in the storage space. Close the cover carefully. 22 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 23: Adjusting The Safety Harnesses
Undo the toggle and Velcro fasteners of the cover and fold open the cover completely. Adjust the safety harnesses to the number of children, see “Adjusting the safety harnesses” on page Subject to change. – 02|2016 – 23 Sportrex2 – Q6000A... -
Page 24: Fastening In A Child
Failure of the restraining function can result in serious or even fatal injuries in the event of an accident. Do not set off until all children are wearing a bicycle helmet and are properly fastened in. 24 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 25: Checking The Weight Distribution And Tow Bar Load
Reduce the baggage weight in the pouch for small items to max. 2 kg. Reduce the baggage weight in the storage space to max. 5 kg. Make sure that the loaded trailer weighs less than 60 kg. Subject to change. – 02|2016 – 25 Sportrex2 – Q6000A... -
Page 26: Connecting The Trailer To A Bicycle
The 2-in-1 canopy is comprised of an insect net and a weather canopy: The inner part of the 2-in-1 canopy must be closed during every journey because the integral ƒ insect net provides protection against insects and small stones. 26 – 02|2016 – Subject to change. Sportrex2 – Q6000A... - Page 27 Fold the sun visor to the desired length and lock it with the side Velcro fasteners. If necessary you can also roll up the sun visor completely and close the rain window again. Subject to change. – 02|2016 – 27 Sportrex2 – Q6000A...
-
Page 28: Adjusting The Tilt Of The Backrest
When altering the hardness, it is essential to ensure that you make the same adjustments on both struts. Different spring deflections can have a negative influence on riding performance. Alter the factory setting only in exceptional cases. 28 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 29: Storage
Fold up the cabin by pressing both sides of the rear cabin frame all the way down. Caution! Only fold up the cabin after it has been cleaned both inside and outside and is completely dry. Subject to change. – 02|2016 – 29 Sportrex2 – Q6000A... -
Page 30: Care And Maintenance
At higher storage temperatures, you should store the wheels separately from the cabin ƒ because the tyres’ rubber can cause odours. Use a Qeridoo folding garage if the must be kept outdoors, see “Accessories” on ƒ Sportrex2 page 30 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 31: Maintenance Intervals
Clean the inside and outside of the cabin thoroughly. ƒ Every three years (or every 3000 km) Have a full inspection carried out by a specialist workshop no later than every three years. Subject to change. – 02|2016 – 31 Sportrex2 – Q6000A... -
Page 32: Appendix
8.5" air wheel Valve type Car valve (Schrader) Maximum air pressure 2 bar Ambient conditions Storage location dry, ventilated, no direct sunlight Temperature range for storage -23 °C – 65 °C 32 – 02|2016 – Subject to change. Sportrex2 – Q6000A... -
Page 33: Warranty Terms
Mail: Germany Fax: +49 (0) 2242 9041247 (Mon. – Fri.: 9 am – noon & 2 pm – 4 pm) You can find our current list of dealers on the Internet at: http://www.qeridoo.com/index.php/en/haendlersuche-english Subject to change. – 02|2016 – 33 Sportrex2 – Q6000A... -
Page 34: Spare Parts
8.5" air wheel (for buggy wheel) BG-589L Wheel suspension (for buggy wheel) BGH-Q2 Main frame (lower part) HPT-600 Wheel guard (wheel deflector) RADA-Q2 Suspension (3.2 mm spring element) FED-QUN Roof rack frame rod DTR-30 34 – 02|2016 – Subject to change. Sportrex2 – Q6000A... - Page 35 Art. no.: KÖRD-55 Pennant holder, centre piece Harness buckle Art. no.: WIM-H-UN Art. no.: GRT-899 Pennant, complete Head rest (incl. extension rod and centre Art. no.: KOP-Q8 piece) Art. no.: 121256 Subject to change. – 02|2016 – 35 Sportrex2 – Q6000A...
- Page 36 Sportrex2 – Q6000A Qeridoo GmbH Reutherstraße 3, 53773 Hennef (Sieg) Germany www.qeridoo.com info@qeridoo.com...
