Open Date Thermocode Series 2 Operator Instructions Manual page 9

Thermocode 2 Printer manual Version 2.04

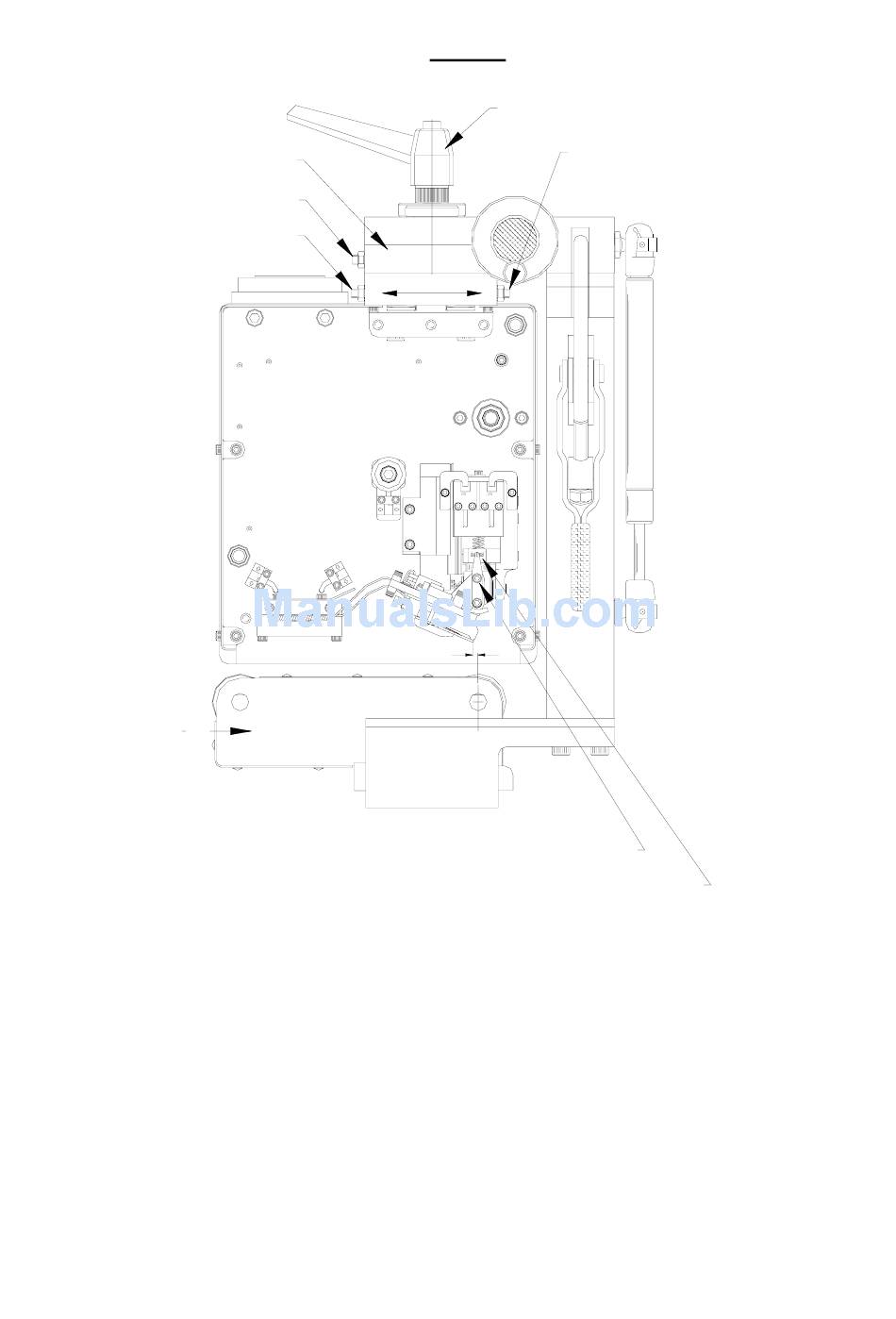

PRINTHEAD SUPPORT ASSEMBLY
UPPER SCREWS A & B
LOWER SCREW D
LOWER ROLLER UNIT
Align the Printer to be adjusted correctly in the Standard frame, set the Printhead to be behind the print
roller centre-line at "1.0 mm" dimension. (See above)
A. Release the "Clamp Handle" by a quarter turn. (See above)
B. Adjust the "Lower Screw D", undo by half a turn. (See above)
C. Adjust the "Lower Screw C", do up by half a turn. (See above)
(Lower Screw C is the opposite side of the frame)
D. Lock up Clamp Handle. (Once correct, lock up lock nuts)
January 2011
FIG 2B
ADJUSTMENT
1.00 mm
CENTRE LINE ROLLER
FIG. 2
PRINTHEAD LOCKING SCREWS
CLAMP HANDLE
LOWER SCREW C
CHECK PRINTHEAD ANGLE
9
9
