Dodge 2001 Ram 1500 Owner's Manual page 248

BR/BE
REAR AXLE - 286RBI (Continued)
Original Pinion
Gear Depth
Variance
+4 +0.008
+3 +0.007
+2 +0.006
+1 +0.005
0 +0.004
−1 +0.003
−2 +0.002
−3 +0.001
−4
PINION DEPTH MEASUREMENT AND ADJUSTMENT
Measurements are taken with pinion cups and pin-
ion bearings installed in housing. Take measure-
ments with a Pinion Gauge Set 6730 and Dial
Indicator C-3339 (Fig. 6).

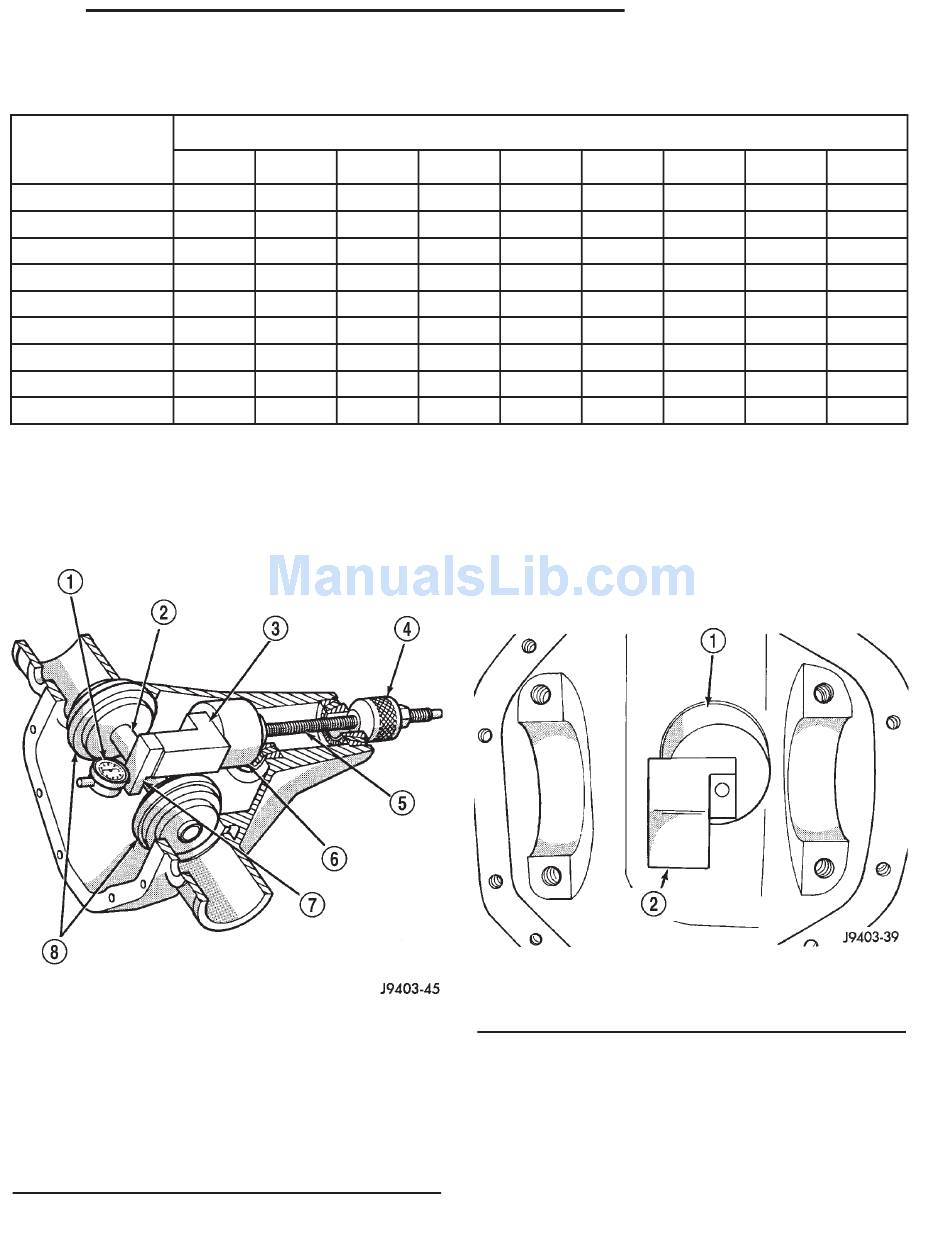

Fig. 6 Pinion Gear Depth Gauge
1 - DIAL INDICATOR
2 - ARBOR
3 - PINION HEIGHT BLOCK
4 - CONE
5 - SCREW
6 - PINION BLOCK
7 - SCOOTER BLOCK
8 - ARBOR DISC
PINION GEAR DEPTH VARIANCE
Replacement Pinion Gear Depth Variance
−4 −3 −2
+0.007 +0.006
+0.006 +0.005
+0.005 +0.004
+0.004 +0.003
+0.003 +0.002
+0.002 +0.001
+0.001 0
0 −0.001
0 −0.001 −0.002
−1 0
+0.005 +0.004 +0.003
+0.004 +0.003 +0.002
+0.003 +0.002 +0.001
+0.002 +0.001
+0.001 0 −0.001
0 −0.001 −0.002
−0.001 −0.002 −0.003
−0.002 −0.003 −0.004
−0.003 −0.004 −0.005
(1) Assemble Pinion Height Block 6739, Pinion
Block 6738 and rear pinion bearing onto Screw 6741
(Fig. 6).
(2) Insert assembled height gauge components,
rear bearing and screw into the housing through pin-
ion bearing cups (Fig. 7).
(3) Install front pinion bearing and Cone 6740
hand tight (Fig. 6).
Fig. 7 Pinion Height Block
1 - PINION BLOCK
2 - PINION HEIGHT BLOCK
(4) Place Arbor Disc 6732 on Arbor D-115-3 in posi-
tion in the housing side bearing cradles (Fig. 8).
Install differential bearing caps on Arbor Discs and
snug the bearing cap bolts. Then tighten cap bolts in
a criss-cross pattern to 108 N·m (80 ft. lbs.).
NOTE: Arbor Discs 6732 have different step diame-
ters to fit other axle sizes. Pick correct size step for
axle being serviced.
REAR AXLE - 286RBI
+1 +2 +3
+0.002 +0.001
+0.001 0
0 −0.001
0 −0.001 −0.002
−0.002 −0.003
−0.003 −0.004
−0.004 −0.005
−0.005 −0.006
−0.006 −0.007
3 - 175
+4
0
−0.001
−0.002
−0.003
−0.004
−0.005
−0.006
−0.007
−0.008
