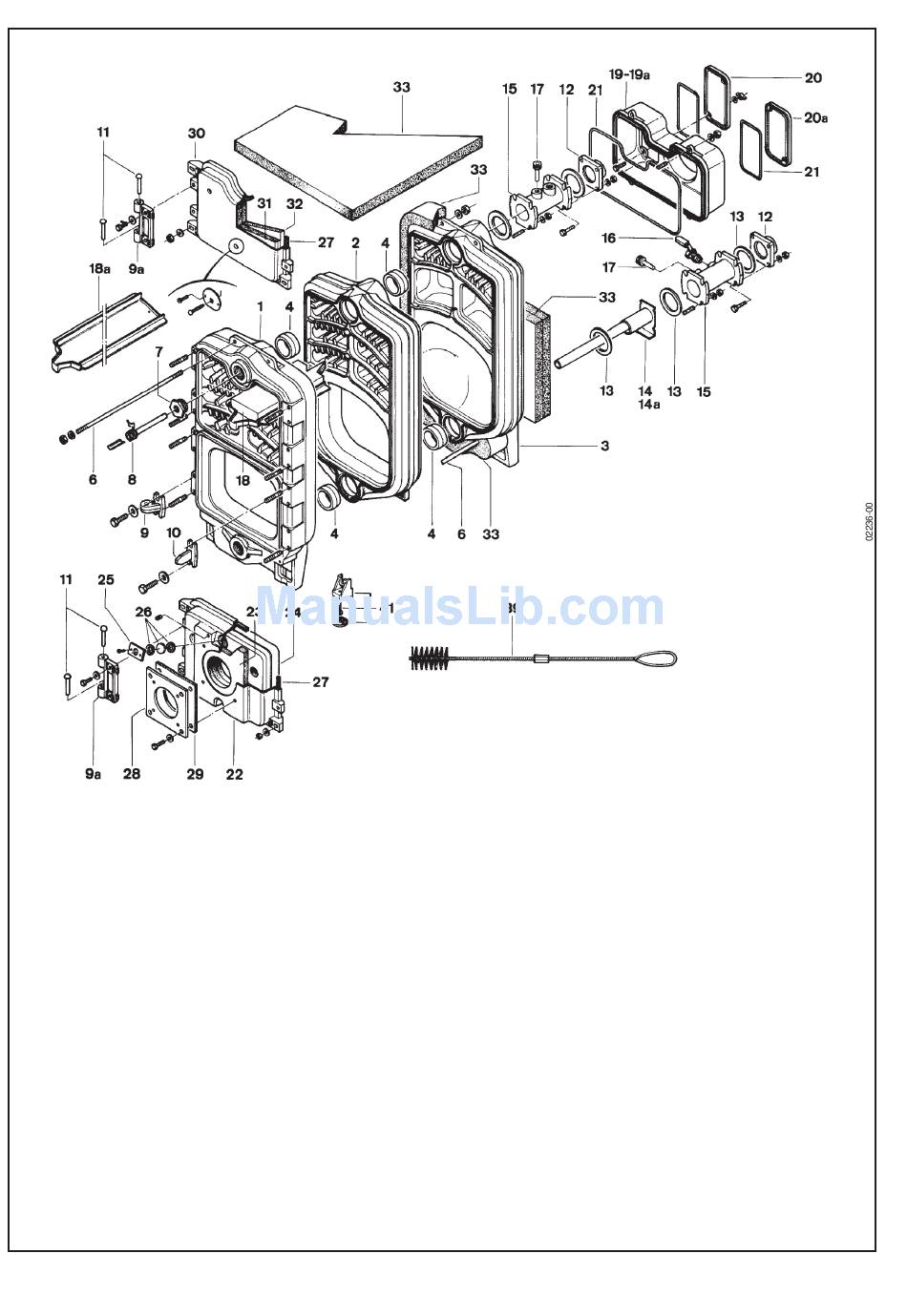

EXCHANGER
1 Front section
2 Middle section
3 Rear section
4 Nipple Ø 89
5 Sealing cord Ø 7
6 Tie-rod
7 Reducer
8 Sensor pocket, Length 200 mm
9 Door hinge
9a Door hinge
10 door guide
11 Door pin
12 Welding flange
13 flange gasket
14 Disriburor, Length 180
14a Distributor, Length 530
15 Flow and return manifold
16 Drain valve
17 Sensor pocket, Length 100 mm
18 Upper baffle
18a Lowe baffle
19 Smoke box Ø 180
19a Smoke box Ø 200
20 Flue-way hatch (L)
20a Flue-way hatch (R)
21 Leaktightness braid Ø 8
22 Chamber door
23 Internal insulation
9
5 Sealing cord Ø 7
40 Screws bag
Fig. 9
24 External insulation
25 Sight flange
26 Sight glass and seal
27 Door seal Ø 16
28 Burner plate
29 Burner plate gasket
30 Cleaning access. door
31 Internal insulation
32 External insulation
33 Insulation body blanket
39 Cleaning brush
40 Screws bag
41 Complete adjustable leg
Ref. : CH - 1249 - A - 2
