DETERMINE YOUR EXISTING IDE CONFIGURATION
With your computer open, determine the existing IDE configuration. You can do this by looking at
the 40-pin IDE ribbon cable (or cables—there may be two) and seeing what is connected to them.
One end of the IDE cable is connected to a port on the computer's motherboard; and the other end
is connected to one or two peripheral devices (such as a hard drive or CD-ROM drive). If there are
two devices, one is considered the master and one is the slave. If there are two IDE ports, one is for
the primary IDE bus and one is for the secondary bus.
A typical drive's IDE configuration is usually one of the following:
Hard drive connected as master and slave devices on primary IDE port; CD-ROM drive connected
•
as master device on secondary IDE port.
Hard drive connected as master device and CD-ROM drive connected as slave on the primary IDE
•
port; nothing connected to secondary IDE port.
• Hard drive connected as master device on primary IDE port; nothing connected to secondary IDE port.

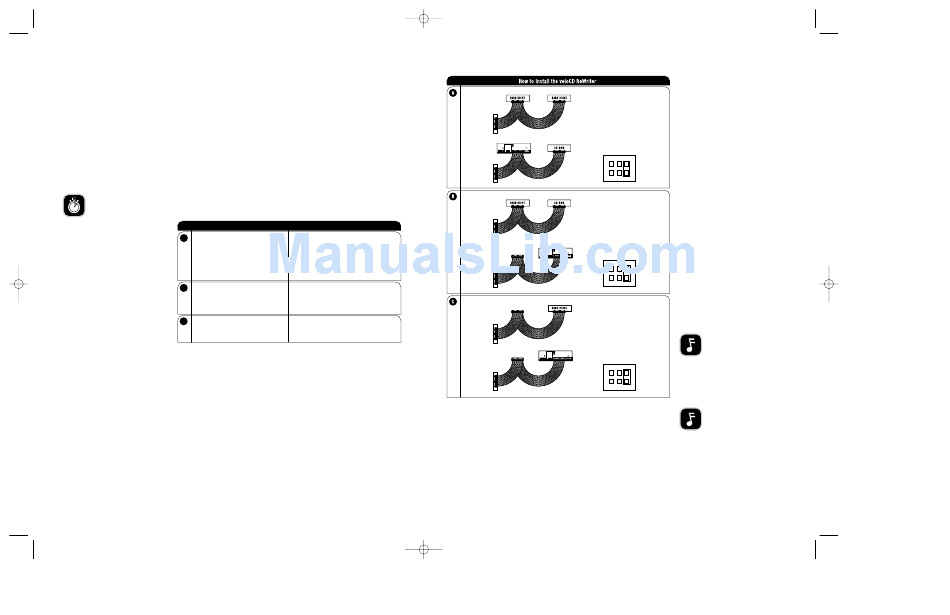

SELECT AN IDE CONFIGURATION
Set the jumper according to the desired configuration, as shown in this table and illustrations.
QUICKSTART INSTALLATION-Experienced PC Users Only
Before veloCD ReWriter Installation
If you've installed computer peripherals before, use
this quickstart installation designed to get you up A Hard drive connected as master and slave devices on
primary IDE port; CD-ROM connected as master
and running quickly. Always turn off and unplug
device on secondary IDE port.
your PC before you start.
Typical Scenario 1: You have a PC with an IDE
interface installed, you have Windows
98/ME/2000 or NT 4.0, and you have nothing
B Hard drive connected as master device and CD-ROM
installed on the secondary IDE port.
drive connected as slave on the primary IDE port;
nothing connected to secondary IDE port.
What to do: Set the veloCD ReWRITER's jumper to
Master, attach it to the secondary IDE port, and go.
Windows will recognize the drive automatically.
C
Hard drive connected as master device on primary IDE
port; nothing connected to secondary IDE port.
Typical Scenario 2: You have a PC with an IDE
interface installed, you have Windows
98/ME/2000 or NT 4.0, and you have a CD-ROM
installed on the secondary IDE port.
What to do: Change the CD-ROM to Slave, set the
veloCD ReWRITER's jumper to Master, attach the
veloCD ReWRITER to the secondary IDE port, and go.
Windows recognizes the new drive automatically.
IF NEITHER OF THESE SITUATIONS APPLIES TO YOU,
OR YOU'RE NOT COMFORTABLE WITH IDE INSTALLATION,
READ THE REST OF THIS CHAPTER FOR MORE
DETAILED INSTALLATION INSTRUCTIONS.
6
veloCD ReWRITER : User's Manual
Page 6
How to Install the veloCD ReWriter
Connect the veloCD ReWriter as master device to the
secondary IDE port. Remove the CD-ROM drive, change it
to slave, and connect it to the secondary IDE port.
NOTE: With this configuration, it is very difficult to write
from the CD-ROM to the veloCD ReWriter using "on-the-fly"
copying. Use the image writing method for best results.
Connect the veloCD ReWriter as master to secondary IDE port.
Connect the veloCD ReWriter as master to secondary IDE port.
Connected as master Connected as slave
Primary
IDE port
Connect veloCD drive
as master
Connect as slave
Set veloCD's
jumper to:
CS S M
Secondary
IDE port
Connected as master Connected as slave
Primary
IDE port
Connect veloCD drive
as master
Set veloCD's
jumper to:
CS S M
Secondary
IDE port
Connected as master
Primary
IDE port
Connect veloCD drive
as master
Set veloCD's
jumper to:
CS S M
Secondary
IDE port
NOTE: For best performance, connect the veloCD
to the IDE port that is not connected to the hard
drive or to a CD-ROM drive. In most cases, connect
the veloCD to the secondary IDE port as a master.
NOTE: For best results, set the veloCD to be the
master, if possible. Enable DMA settings on
your system to achieve maximum writing speed.
7
SECTION 2 : Installing Your veloCD ReWRITER
