TDK VELO CD REWRITER Installation And User Manual page 6

KD.tdk.03202 40xHardware V12 10/16/02 04:52 PM
AUDIO OUT
(not used)
Audio output
connector

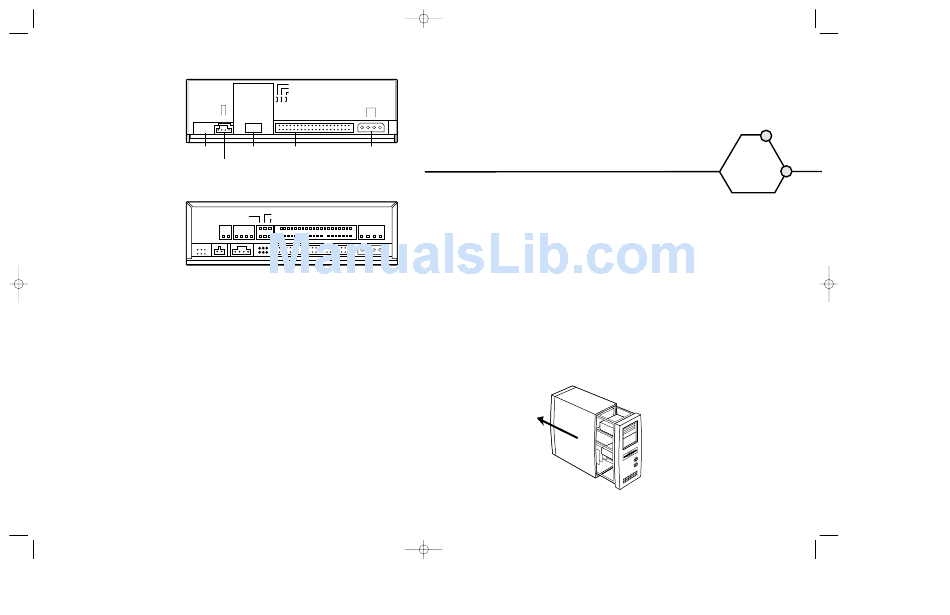

Figure 2: Rear Panel of the veloCD ReWRITER Internal Drive
Audio output connector: Outputs stereo analog signal. Use to connect to soundcard or audio amplifier.
•
Use standard MPC-3 type, 4-pin connector.
• Jumpers: Use to select operation as an IDE master or slave, or for cable select. In general, leave
these jumpers at their factory settings.
• IDE cable connector: Connects to IDE interface using 40-pin IDE flat ribbon cable.
• Power connector: Connects to your computer's power supply to provide
DC +5V and +12V to the veloCD ReWRITER.
4
veloCD ReWRITER : User's Manual
Page 4
CABLE SELECT
SLAVE
MASTER
DC INPUT
R G L
+5V GND +12V
Jumpers
IDE
1
40
Jumper IDE cable Power
connector connector
Audio CSEL Slave
Master
Digital Analog E-IDE Interface Power
39 1
D G R G G L 5V G G 12V
40 2
INSTALLING YOUR veloCD ReWRITER
This chapter explains how to physically install your veloCD ReWRITER in your computer.
The steps are as follows:
1. Turn OFF your computer system and unplug the power cord.
2. Set the jumpers for your new veloCD ReWRITER.
3. Mount the veloCD ReWRITER into an available drive bay inside the computer system.
4. Make all necessary cabling connections: IDE cable, power cable, and audio cable.
5. Turn your computer system ON.
The following pages give more details for this procedure.
TO OPEN THE COMPUTER:
1. Before proceeding, make sure the power to your computer and any external peripherals are OFF
and your computer is UNPLUGGED from its power source.
2. Remove your computer's cover, following the directions provided by your computer's manufacturer.
Typically, this involves loosening or removing several screws on the back panel of your computer
and sliding off the cover. See Figure 3 for details.
Figure 3: Removing a Typical Computer's Cover
2
SECTION
5
SECTION 2 : Installing Your veloCD ReWRITER
