30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

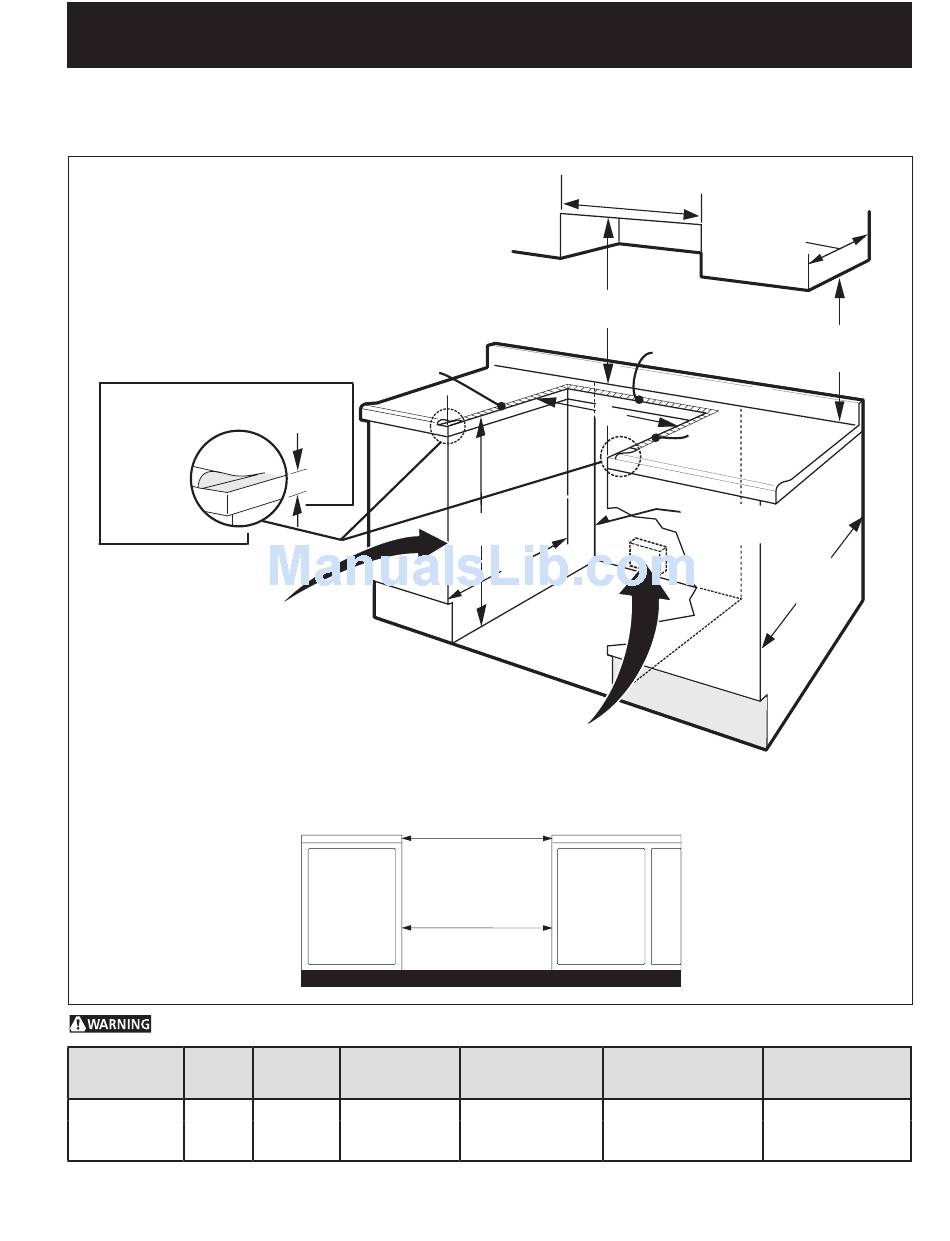

These surfaces should be flat
& leveled (hatched area).
Shave Raised Edge
To Clear
Space for
31 5/16"
(81cm)
Wide
Cooktop Rim.
Locate Cabinet Doors 1" (2.5
cm) Min. From Cutout Opening
Grounded Junction Box or Wall Outlet Should Be
Located 8" to 17" (20.3 - 43.2 cm) From Right
Cabinet and 2" to 4" (5.1-10.2 cm) From Floor
Do not install the unit in the cabinet before reading next two pages.
A. HEIGHT (Under
B. WIDTH
Cooktop)
35 5/8" (90.5 cm) -
30"
36 5/8" (93 cm)
(76,2 cm)
Printed in United States
½"
Min.
1 ½" Max.
(3.8 cm Max.)
***IMPORTANT:
width should match the cutout width.
C. COOKTOP
D. TOTAL DEPTH
WIDTH
TO FRONT OF
RANGE
31 5/16"
28 5/16" (71,9 cm)
(79.5 cm)
30" Min.
(76.2 cm) Min.
30" Min. (see Note 3)
(76.2 cm) Min. (See Note 3)
E
G
F
Cabinet and countertop
E
E
E. CUTOUT WIDTH***
F. CUTOUT DEPTH
(Countertop and
cabinet)
30±1/16"
21 3/4" (55,2 cm) Min.
22 1/8" (56,2 cm) Max
(76,2±0,15 cm)
24" (61 cm) Min. with
1
13"
(33 cm)
18" Min.
¼"
(45.7 cm) Min.
Min.
½"
Min.
Approx. 1 7/8"
(4.8 cm)
24" Min.
(61 cm) Min.
G. HEIGHT OF
COUNTERTOP
36 5/8" (93 cm) Max.
35 5/8" (90.5 cm) Min.
backguard
P/N 318201612 (0610) Rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the c970-440935 and is the answer not in the manual?

Questions and answers

Lucie Thibeault
February 4, 2025

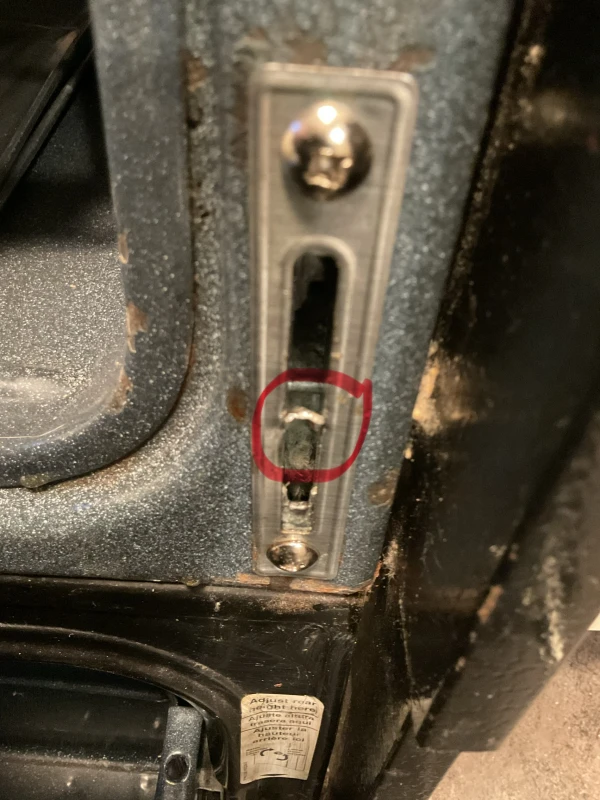

The circled part is broken and that is what the new hinges rest on.

User image 67a28be0cfdef
1 comments:
Mr. Anderson
February 10, 2025

To replace the hinge supports on the Kenmore C970-440935 oven door:

1. Remove the Door:
- Open the door fully.
- Pull up the locks on both hinge supports and engage them in the hinge lever hooks.
- Apply slight downward pressure if needed to fully engage the locks.
- Grab the door by the sides and pull the bottom up and toward you to disengage the hinge supports.
- Continue pulling the bottom toward you while rotating the top toward the range to fully remove the door.

2. Replace the Door:
- Hold the door by the sides and place the hinge supports into the hinge slots.
- Open the door fully.
- Disengage the locks from the hinge lever hooks on both sides.
- Ensure the hinge supports are fully engaged before unlocking the hinge.

This process ensures proper installation and functionality of the oven door.

This answer is automatically generated

Lucie Thibeault
February 4, 2025

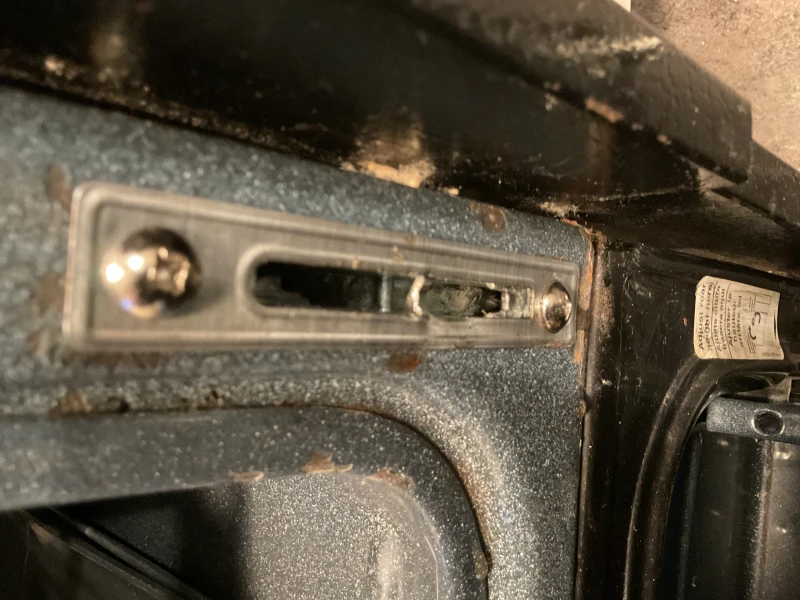

Hinge slot support, inside part, piece needs to be replaced, broken.. Where can I order it, do you have a part number.?
