Crest Audio X-Monitor Owner's Manual page 70

5

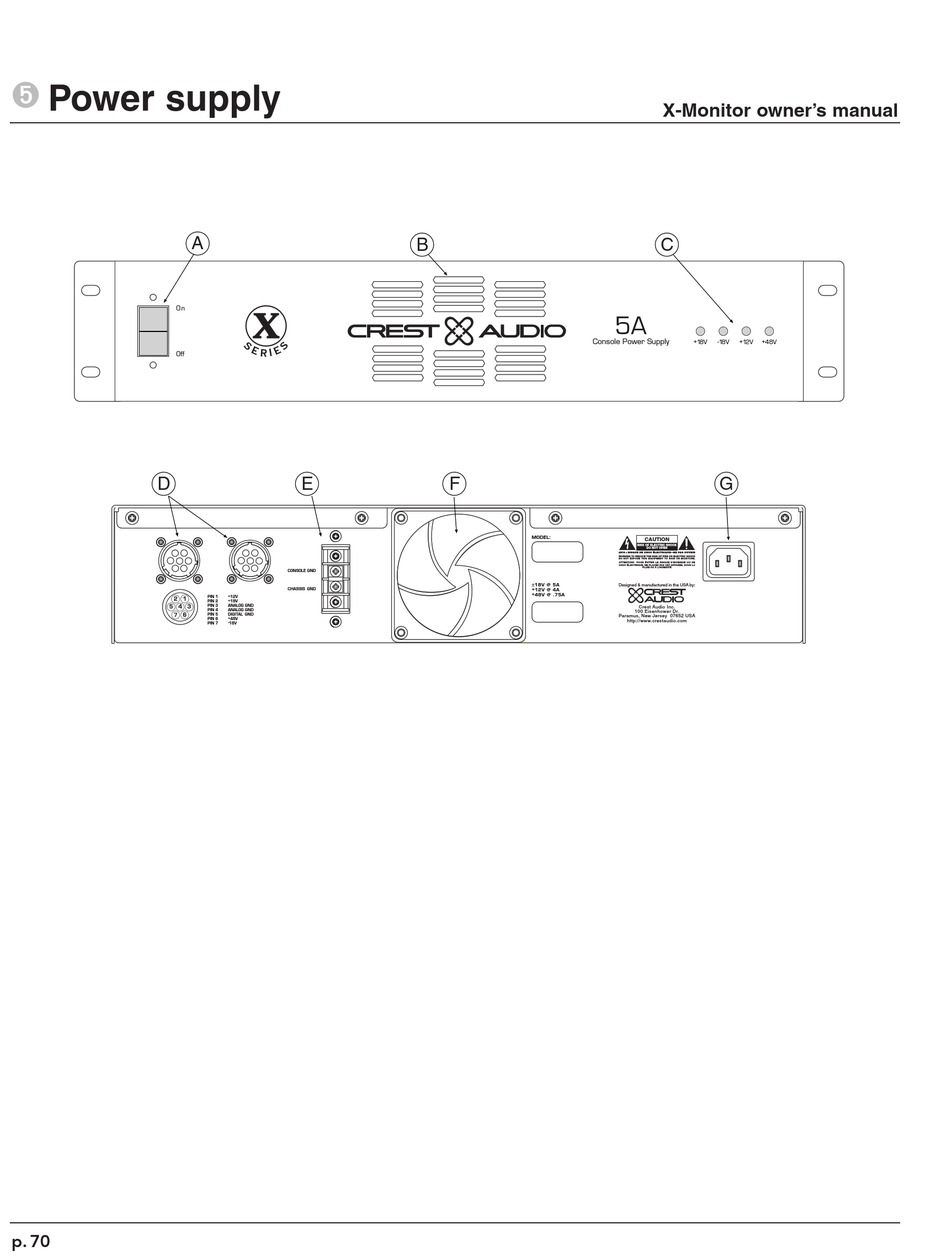

Power supply
O n
Off
D
2 1
5 4 3
6
p. 70
A
E
CONSOLE GND
CHASSIS GND
PIN 1 +12V
PIN 2 +18V
PIN 3 ANALOG GND
PIN 4 ANALOG GND
PIN 5 DIGITAL GND
PIN 6 +48V
PIN 7 -18V
B
Console Power Supply
F
MODEL:
±18V @ 5A
+ 12V @ 4A
+ 48V @ .75A
X-Monitor owner's manual
C
5A
+ 18V - 18V + 12V + 48V
G
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS : RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
ATTENTION! POUR ÉVITER LE RISQUE D'INCENDIE OU DE
CHOC ÉLECTRIQUE, NE PLACEZ PAS CET APPAREIL SOUS LA
PLUIE OU Á L'HUMIDITÉ
Designed & manufactured in the USA by:
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
http://www.crestaudio.com
