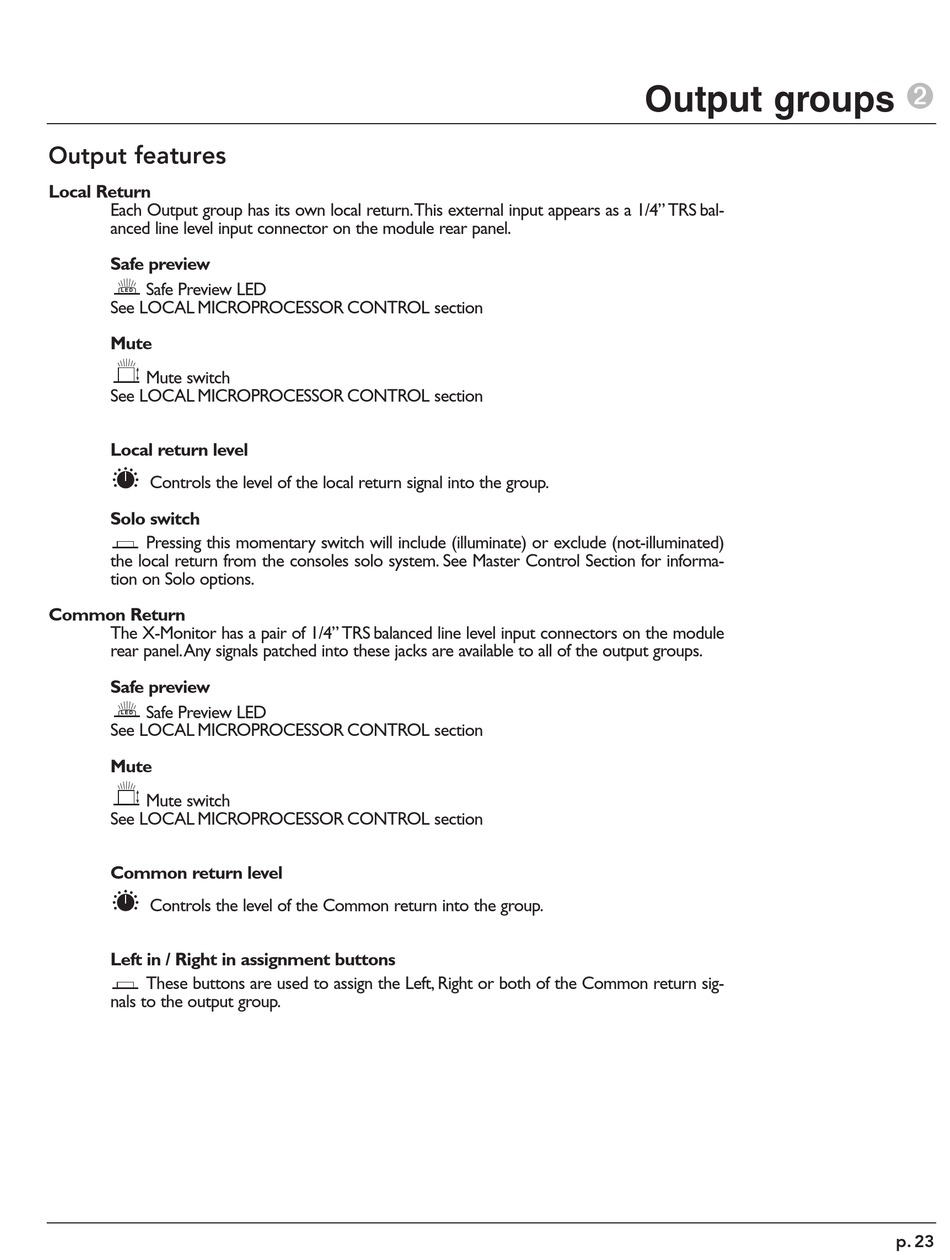

Crest Audio X-Monitor Owner's Manual page 23

Output features
Local Return
Each Output group has its own local return.This external input appears as a 1/4" TRS bal-
anced line level input connector on the module rear panel.
Safe preview
Safe Preview LED
L E D
See LOCAL MICROPROCESSOR CONTROL section
Mute
Mute switch
See LOCAL MICROPROCESSOR CONTROL section
Local return level
Controls the level of the local return signal into the group.
Solo switch
Pressing this momentary switch will include (illuminate) or exclude (not-illuminated)
the local return from the consoles solo system. See Master Control Section for informa-
tion on Solo options.
Common Return
The X-Monitor has a pair of 1/4" TRS balanced line level input connectors on the module
rear panel.Any signals patched into these jacks are available to all of the output groups.
Safe preview
Safe Preview LED
L E D
See LOCAL MICROPROCESSOR CONTROL section
Mute
Mute switch
See LOCAL MICROPROCESSOR CONTROL section
Common return level
Controls the level of the Common return into the group.
Left in / Right in assignment buttons
These buttons are used to assign the Left, Right or both of the Common return sig-
nals to the output group.
Output groups
2
p. 23
