Crest Audio X-Monitor Owner's Manual page 68

5

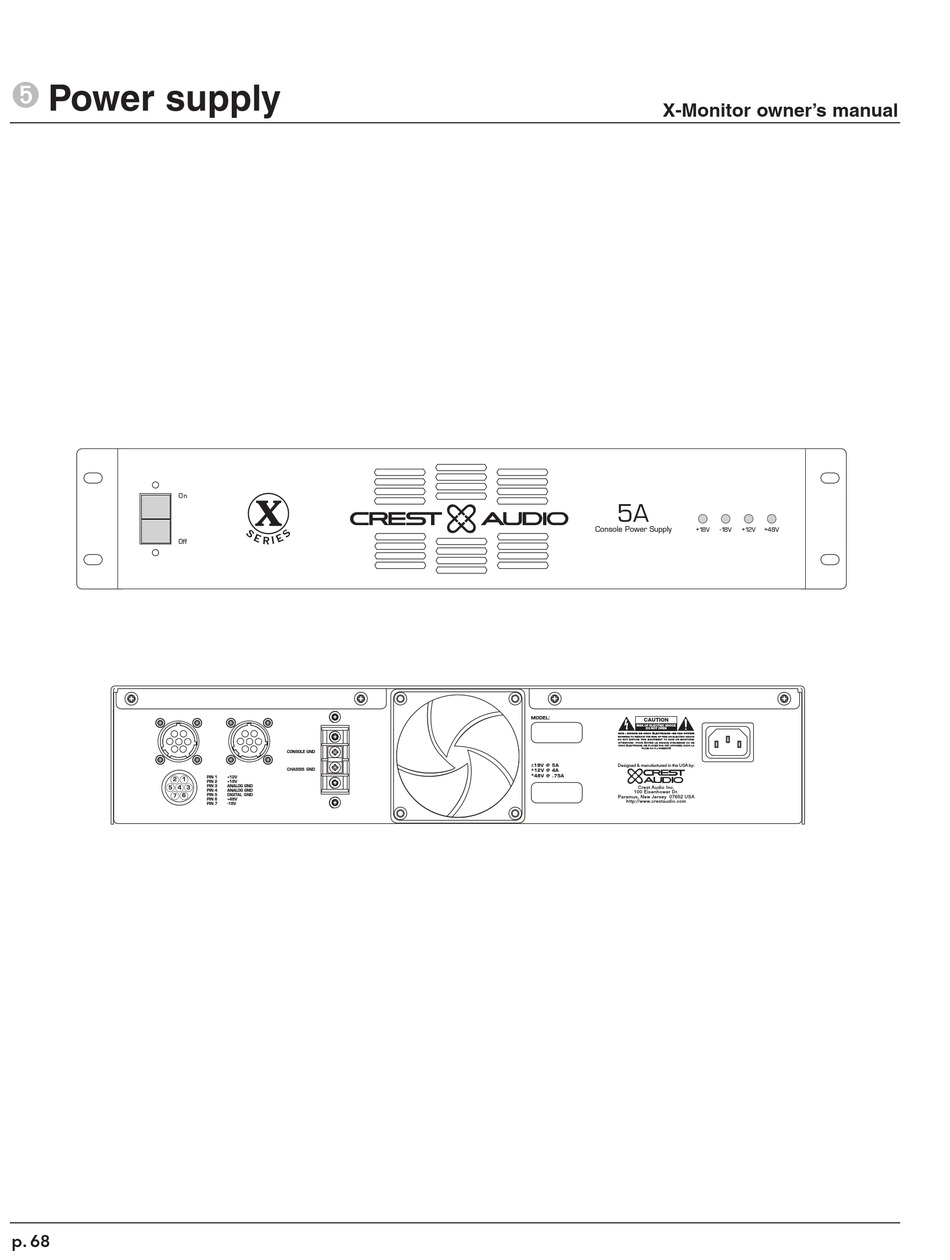

Power supply
O n
Off
2 1
5 4 3
6
p. 68
CONSOLE GND
CHASSIS GND
PIN 1 +12V
PIN 2 +18V
PIN 3 ANALOG GND
PIN 4 ANALOG GND
PIN 5 DIGITAL GND
PIN 6 +48V
PIN 7 -18V
X-Monitor owner's manual
5A
Console Power Supply + 18V
MODEL:
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS : RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
ATTENTION! POUR ÉVITER LE RISQUE D'INCENDIE OU DE
CHOC ÉLECTRIQUE, NE PLACEZ PAS CET APPAREIL SOUS LA
PLUIE OU Á L'HUMIDITÉ
±18V @ 5A
Designed & manufactured in the USA by:
+ 12V @ 4A
+ 48V @ .75A
Crest Audio Inc.
100 Eisenhower Dr.
Paramus, New Jersey 07652 USA
http://www.crestaudio.com
- 18V + 12V + 48V
