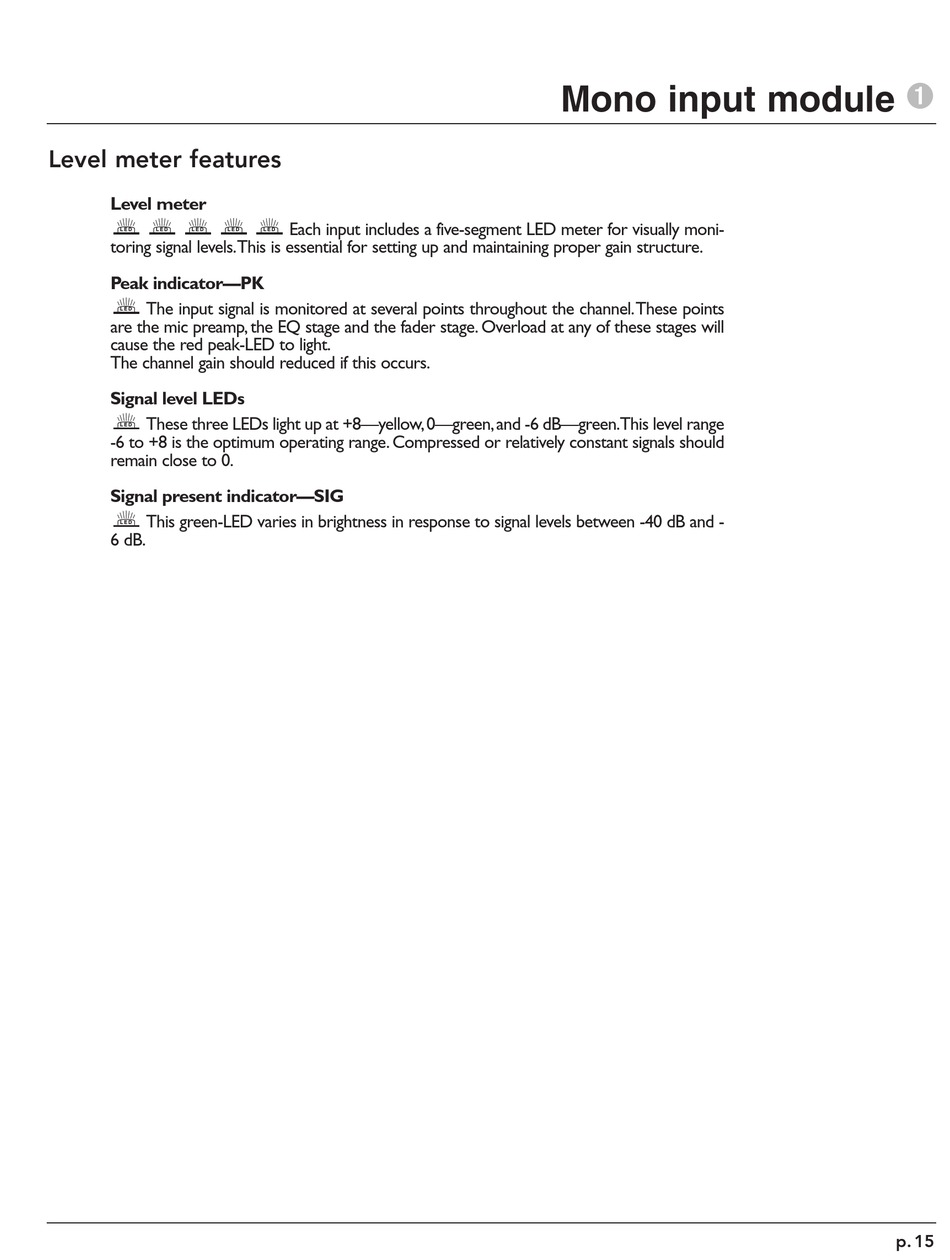

Level meter features

Level meter

L E D L E D L E D
toring signal levels.This is essential for setting up and maintaining proper gain structure.
Peak indicator—PK
The input signal is monitored at several points throughout the channel.These points
L E D
are the mic preamp, the EQ stage and the fader stage. Overload at any of these stages will
cause the red peak-LED to light.
The channel gain should reduced if this occurs.
Signal level LEDs
These three LEDs light up at +8—yellow, 0—green, and -6 dB—green.This level range
L E D
-6 to +8 is the optimum operating range. Compressed or relatively constant signals should
remain close to 0.
Signal present indicator—SIG
This green-LED varies in brightness in response to signal levels between -40 dB and -
L E D
6 dB.
Each input includes a five-segment LED meter for visually moni-
L E D L E D
Mono input module
1
p. 15
