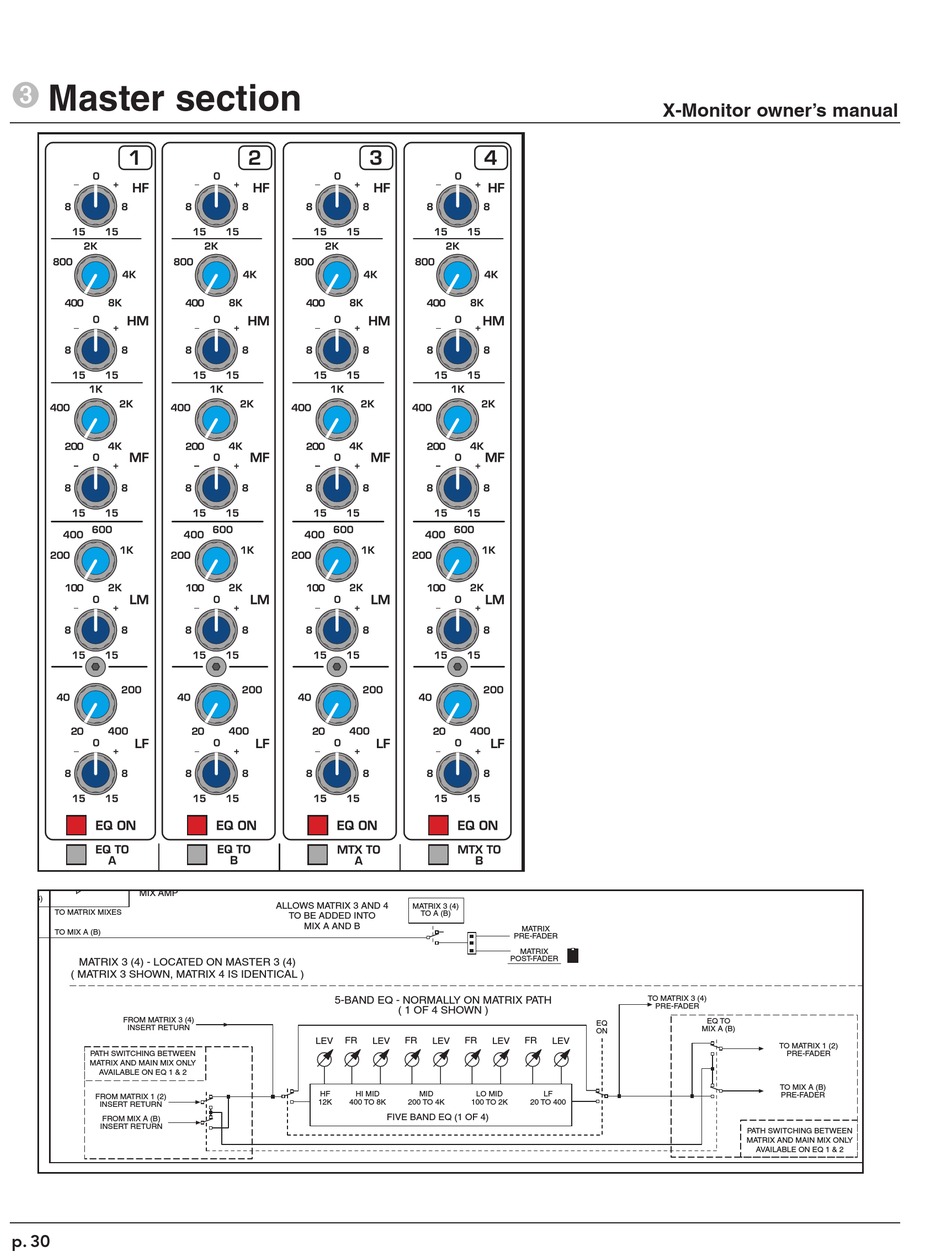

Master section
T
MIX AMP
6)
TO MATRIX MIXES
TO MIX A (B)
MATRIX 3 (4) - LOCATED ON MASTER 3 (4)
( MATRIX 3 SHOWN, MATRIX 4 IS IDENTICAL )
FROM MATRIX 3 (4)
INSERT RETURN
PATH SWITCHING BETWEEN
MATRIX AND MAIN MIX ONLY
AVAILABLE ON EQ 1 & 2
FROM MATRIX 1 (2)
INSERT RETURN
FROM MIX A (B)
INSERT RETURN
p. 30
ALLOWS MATRIX 3 AND 4
MATRIX 3 (4)
TO A (B)
TO BE ADDED INTO
MIX A AND B
5-BAND EQ - NORMALLY ON MATRIX PATH
( 1 OF 4 SHOWN )
LEV FR LEV FR LEV
HF HI MID MID
12K 400 TO 8K 200 TO 4K
FIVE BAND EQ (1 OF 4)
MATRIX
PRE-FADER
MATRIX
POST-FADER
EQ
ON
FR LEV FR LEV
LO MID LF
100 TO 2K 20 TO 400
X-Monitor owner's manual
TO MATRIX 3 (4)
PRE-FADER
EQ TO
MIX A (B)
TO MATRIX 1 (2)
PRE-FADER
TO MIX A (B)
PRE-FADER
PATH SWITCHING BETWEEN
MATRIX AND MAIN MIX ONLY
AVAILABLE ON EQ 1 & 2
