Black Horce Model HAWKER TYPHOON MK1B Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

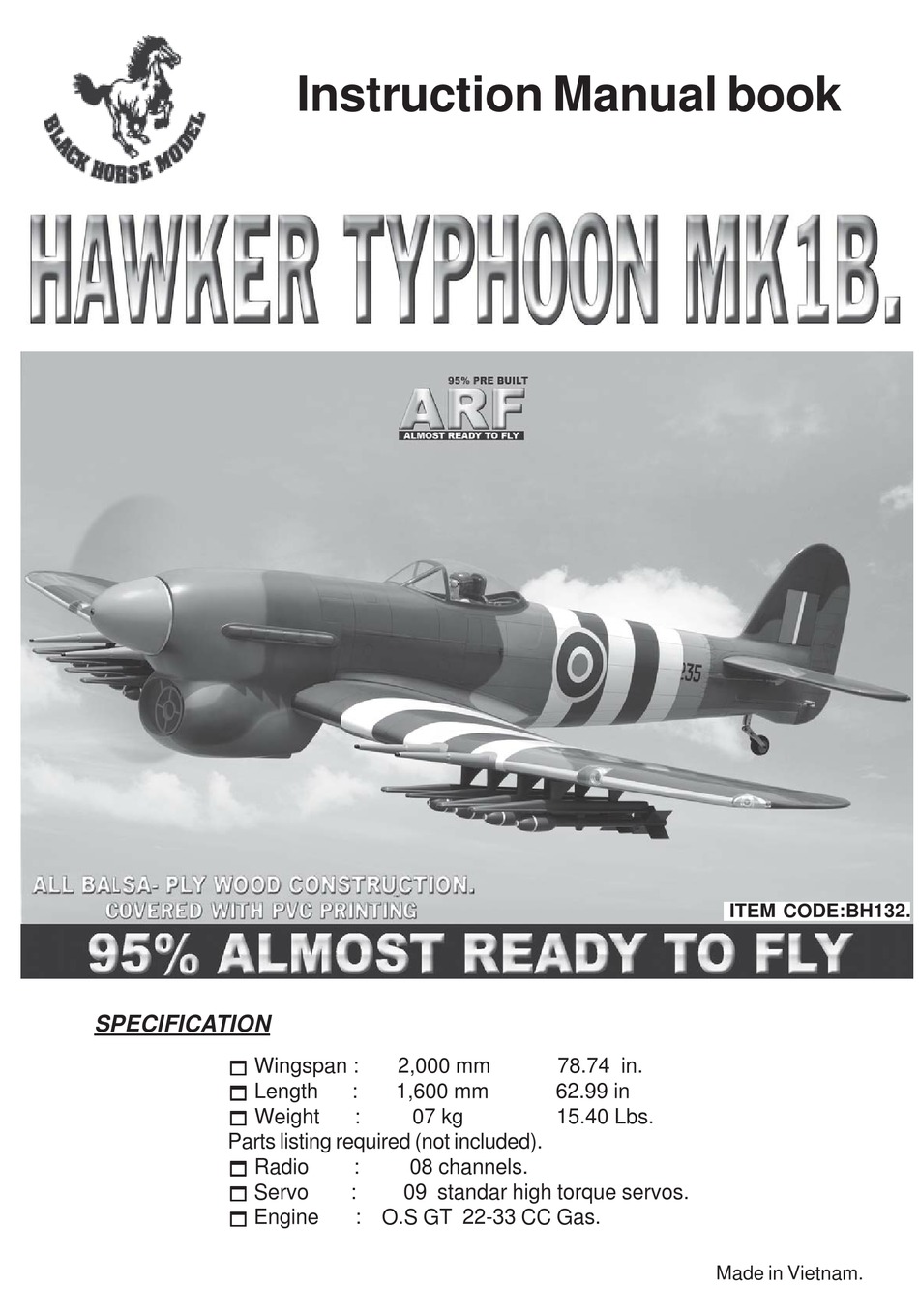

Instruction Manual book
ITEM CODE:BH132.
SPECIFICATION
     Wingspan :
2,000 mm
78.74 in.
     Length
:
1,600 mm
62.99 in
     Weight
:
07 kg
15.40 Lbs.
Parts listing required (not included).
     Radio
:
08 channels.
     Servo
:
09 standar high torque servos.
     Engine
: O.S GT 22-33 CC Gas.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAWKER TYPHOON MK1B and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horce Model HAWKER TYPHOON MK1B

Summary of Contents for Black Horce Model HAWKER TYPHOON MK1B

  • Page 1 Instruction Manual book ITEM CODE:BH132. SPECIFICATION      Wingspan : 2,000 mm 78.74 in.      Length 1,600 mm 62.99 in      Weight 07 kg 15.40 Lbs. Parts listing required (not included). ...
  • Page 2 - Item code: BH132 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your HAWKER TYPHOON MK1B. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Wing warp: Hold the panel twisted gently Caution: this model is not a toy! in the opposite direction to If you are a beginner to this type of powered the warp, and apply warm air...

  • Page 4: Installing The Aileron Servo

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 REPLACEMENT SMALL PARTS 1.Air retract main gear. 13.Air line set I. SERVO 2.Door mounting wheel. 14. Fuel Tank. INSTALLING THE AILERON SERVO. 3. Wheels. 15.Gun sets 4. Tail gear set. ...
  • Page 5 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  2) Using a modeling knife, remove the cov- ering at possition show below.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.

  • Page 6: Installing The Aileron Linkages

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Secure. Aileron control horn. Repeat the procedure for the other wing INSTALLING THE AILERON half. LINKAGES. Installing the aileron linkages as pictures INSTALLING THE AILERON CONTROL HORN. below. Install aileron control horn as same as picture below.
  • Page 7 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 II. FLAP 2x10mm. 1.INSTALLING THE FLAP SERVO secure. Flap 2.INSTALLING THE FLAP CONTROL HORN. Install flap control horn as same as picture below. Servo tray. Control horn Flap. thread A+B Epoxy PLUS glue Electric wire.
  • Page 8 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Control horn of the flap. 3.INSTALLING THE FLAP LINKAGES. Installing the flap linkages as pictures 4x12mm. below. 60mm 3x15mm Secure. Secure. Bottom side. Repeat the procedure for the other wing half.
  • Page 9 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING AIR RETRACTABLE LANDING GEAR. PARTS REQUIRED 3x15mm 3x15mm 5x40mm 3x 15 mm Drill a hole 6mm Secure. diameter hole 6mm...
  • Page 10 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Secure. 5x 40 mm Drill a hole...
  • Page 11 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 3x4mm 3x6mm Bottom side. Secure. Repeat the procedure for the other gear half. INSTALLING THE AIR TANK See pictures below: Secure. Air tank Secure. Air tank...

  • Page 12: Installing The Engine Mount

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE ENGINE MOUNT. See pictures below: 5x70mm Air tank Drill a hole 5mm diameter C/A glue...
  • Page 13 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Throttle servo Secure. Front view. Throttle cable. INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 14 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 When the stopper assembly is installed in the tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank.
  • Page 15 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  8) Feed three lines through the fuel tank compartment and through the pre-drilled hole in the firewall. Pull the lines out from behind the engine, while guiding the fuel tank into place.
  • Page 16 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 COWLING. Right side  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Pushrod Choke.
  • Page 17 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132  4. Install the muffler and muffler extension onto the engine and make the cutout in the cowl for muffler clearance. Connect the fuel and pressure lines to the carburetor, muffler and fuel filler valve.

  • Page 18: Installing The Spinner

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 8mm machine screws. Length 34mm. 5x 50mm. Aluminium 10mm 5x50mm.

  • Page 19: Installing The Elevator Servos

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 INSTALLING THE ELEVATOR 9 mm SERVOS. 295 mm  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio system.

  • Page 20: Elevator Control Horn Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Secure Secure. Bottom side. Left elevator ELEVATOR CONTROL HORN INSTALLATION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. A+B Epoxy PLus glue...

  • Page 21: Elevator Pushrod Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 M2 lock nut. Elevator control horn ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. M2 lock nut. Elevator pushrod Elevator pushrod RUDDER INSTALLATION. Rudder servo install as same as method of elevator servo.

  • Page 22: Rudder Control Horn Installa- Tion

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Aluminium Aluminium. Aluminium Rudder Push. Cut. A+B Epoxy PLus glue Bottom side. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below.

  • Page 23: Rudder Cable Installation

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 RUDDER CABLE INSTALLATION. A+B Epoxy  1. Rudder push - pull system install as PLus glue same as picture below. 3 x 15mm Secure. R u d d e r control Bottom side.

  • Page 24: Mounting The Tail Wheel Bracket

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place on the plywood plate. The pivot point of the 3x15mm tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.
  • Page 25 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 3x10mm C/A glue. C/A glue. Plastic parts of elevator and rudder pushrod. Bottom side. Top side...
  • Page 26 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Air tank Air supply Valve one way Right main gear wing Left main gear wing INSTALLING SERVO USING FOR VALVE CONTROL. Valve control valve control servo. Valve control Secure. valve control...
  • Page 27 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132...

  • Page 28: Installing The Switch

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 S w i t c h receiver. Secure S w i t c h Engine. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver.

  • Page 29: Wing Attachment

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Tie wrap. Batery of engine. Right wing. Receiver. WING ATTACHMENT. Locate the aluminium wing dihedral brace. 25 mm 610 mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.
  • Page 30 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Insert and secure. Bottom side. Secure. Installing Rocket. Secure. See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- ture below.
  • Page 31 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Bottom side. Right wing. C/A glue. drill a hole 2mm. 5A.Rocket (Right) C/A glue.
  • Page 32 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Right wing. Left wing. Bottom side. 3x10mm Top side. Secure. Gun sets 164mm. 154mm.
  • Page 33 HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Left wing. Right wing. C/A glue. C/A glue. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 34: Control Throws

    HAWKER TYPHOON MK1B Instruction Manual - Item code: BH132 Accurately mark the balance point on the top CONTROL THROWS. of the wing on both sides of the fuselage. The       1) We highly recommend setting up a balance point is located 130mm back from plane using the control throws listed.
