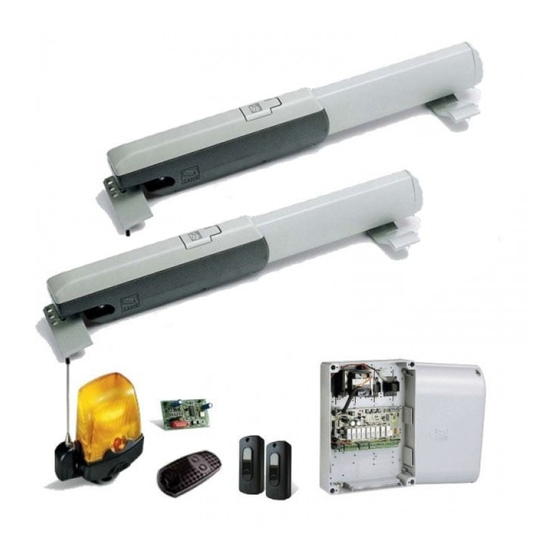

AUTOMATION
11 9 DU25E N
FOR SWING GATES
INSTALLATION MANUAL
A3024N
A5024N
EN
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A3024N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CAME A3024N

  • Page 1 AUTOMATION 11 9 DU25E N FOR SWING GATES INSTALLATION MANUAL A3024N A5024N English...
  • Page 2: Read Carefully

    • Use this product only for the specifi c purpose for which it is designed. Any Special instructions and recommendations for everyone other use is therefore improper and dangerous. CAME Cancelli Automatici • Keep away from the hinges and any moving mechanical parts • Stay out S.p.A.
  • Page 3: Legend Of Symbols

    But whereas with reversible operators it is merely advisable, with irreversible ones, beyond 4 m, it is obligatory. Reference Standards The company: Came Cancelli Automatici is ISO 9001 quality certified; is has also obtained the ISO 14001 environmental safe- guarding certification. Came engineers and manufactures all of its products in Italy.
  • Page 4: Description Of Parts

    2) Front bracket 3) Back swivel-joint 4) Back bracket 5) Anchoring plate 4.4 Overall dimensions A5024N A3024N Travel Travel 5 Installation 5.1 Preliminary checks Before installing, do the following: • make sure the structure of the gate is sturdy, the hinges work and that there is no friction between moving parts and non-moving parts;...
  • Page 5: Tools And Materials

    Tools and materials Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the current standards and regulations. The following figure illustrates the minimum equipment needed by the installer. Cable list and minimum thickness Length of cable Length of cable...
  • Page 6 Mounting The following are just example applications, given that the space for securing the operator and accessories may vary depen- ding on the dimensions. It is thus up to the installer to choose the most suitable solution. Tab. 3 Pillar Gate leaves <...
  • Page 7 Unscrew the two securing screws and remove the carter. Carter Stem Unscrew the two securing screws and remove the stem. M8 self-locking nut Endless screw Begin mounting the gearmotor to the two brackets. M8x10 M8x50 N.B.: we suggest lubricating (using neutral grease) the endless screw and the bushing upon installation. Release with customised key Door Release only with motor stopped:...
  • Page 8 Securing and adjusting the endstop Closing-speed brake microswitch Endless screw Microswitch bar Cable support Microswitch actuating sled Stop brake microswitch Spindle Spindle OPENING PHASE: (stop) CLOSING PHASE (deceleration) Release the gearmotor and swing the gate-leaf to the fully open Swing the gate until fully closed. position you desire, then, unscrew the securing screws on the opening Unscrew the securing screws on the closing decelaration micro-switch stop micro-switches assembly.
  • Page 9 Connecting to the ZL180 control panel Connecting 2 motors ZL180 Connecting 1 motor ZL180...
  • Page 10 Application for outward opening Tab. 4 A3024N A5024N Outward Inward Extra bracket - Measure values A and B (Tab. 4) - Secure the tail bracket to an extra bracket and apply to post. - Open gate (max 90°), measure value E (Tab. 4) and secure head bracket to gate leaf.
  • Page 11: Maintenance

    7 Maintenance Periodic maintenance Before doing any maintenance, cut off the power supply, to prevent any hazardous situations caused by accidentally activating the operator. ☞ Periodic maintenance log kept by users (every six months) Date Notes Signature Extraordinary maintenance The following table is for logging any extraordinary maintenance jobs, repairs and improvements performed by specialized contractors. Any extraordinary maintenance jobs must be done only by specialized technicians.
  • Page 12: Troubleshooting

    CAME CANCELLI AUTOMATICI S.p.A. employs a UNI EN ISO 14001 certified and compliant environmental protection system at its plants, to ensure that environmental safeguarding. We ask you to keep protecting the environment, as CAME deems it to be one of the fundamental points of its market operations strategies, by simply following these brief guidelines when disposing: DISPOSING THE PACKING MATERIALS The packing components (cardboard, plastic, etc.) are solid urban waste and may be disposed of without any particular difficulty, by...
