Communication

CAN Bus Termination

Minipack systems are shipped from factory with the CAN bus already terminated with 120Ω
resistors.
To ensure a correct bus communication and avoid data reflection, you must always terminate

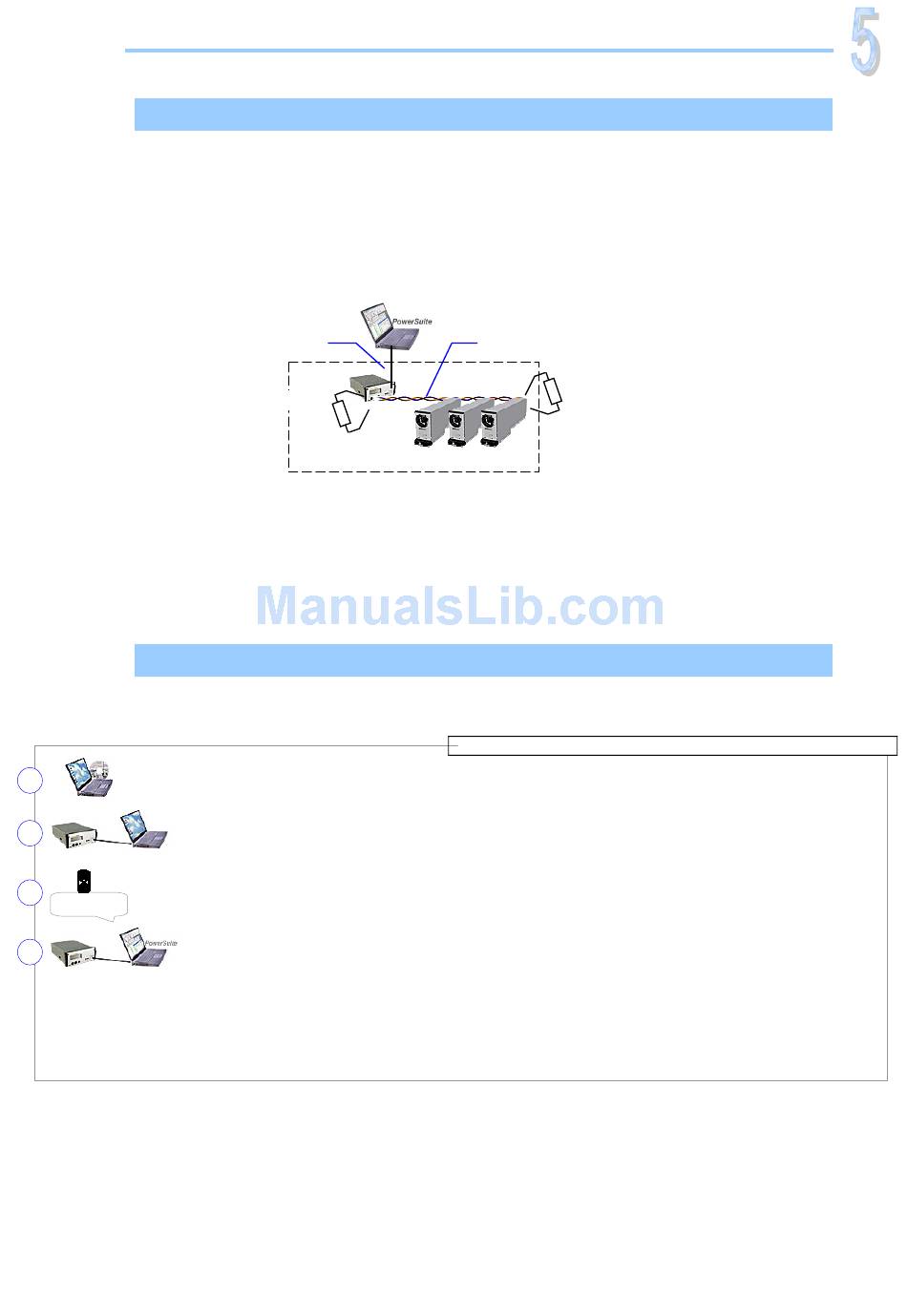

the CAN bus with two 120Ω resistors, one at each end of the line. The figure shows a
Minipack system, with its controller communicating with the rectifiers via the CAN bus.
Smartpack assigns ID numbers to the rectifiers (software-assigned). The Smartpack's ID
numbers are assigned by DIP switches on the controller's side.
Installing PowerSuite ⎯ PC Application
The PowerSuite software application enables you to configure and operate the Minipack
Power Supply System from a personal computer.
1. Install PowerSuite
1
2. Switch Smartpack ON and plug USB cable (Part 202073)
2
3. Wait for Windows to detect the Smartpack controller
3
New hardware
is ready to use
4. Start PowerSuite and establish connection
4
If PowerSuite fails communicating via the standard COM port, find the COMx assigned to Smartpack, by selecting menu option "Tools >
Options" (click on the Find COMx button).
PowerSuite's newest version is always available on our FTP server. Call your Eltek's contact person.
Quick Start Guide Minipack PS System
USB A-B cable
(standard)
1
End-of-Line
Resistor
120Ω
Minipack
DC Power System
Insert CD in your PC drive and follow & accept the wizard default steps to install PowerSuite
to Smartpack and to any available USB port in the PC
If required, a wizard will automatically install necessary USB drivers. Follow & accept the wizard default steps
Select "Start > All Programs > Eltek > PowerSuite". On the toolbar, click "Connect" button. On the Connection
dialogue box, click the "Connect" button
CAN bus
(twisted-pair internal CAT5 cable)
120Ω
End-of-Line
01 02 n
Minipack system configuration from a PC running MS Windows XP
356808.103, v1-2006-12
Miscellaneous
Resistor
