SUBWOOFER FOOT ATTACHMENT

All of the subwoofers come with
four (4) rubber feet that may be
attached to the top, bottom or sides of
the cabinet. Each side has dimples to
indicate foot positions.
Determine which side will be on the
floor, turn the enclosure to allow easy
access to attach the feet.
Attach the feet at the dimple locations
(Figures 4a - 4c). Predrilling cabinet is
recommended for easier attachment.
Using a 1/8" (2mm) drill bit, predrill
the dimple locations (to a depth of
0.5" [13mm]).
Note: The large subwoofers are heavy. Protect
the finish by keeping the other sides of the
enclosure in plastic or cardboard until the feet
have been installed and it has been moved to the
intended location.
I SERIES IP800/IP600, IS800/IS600
Dimples

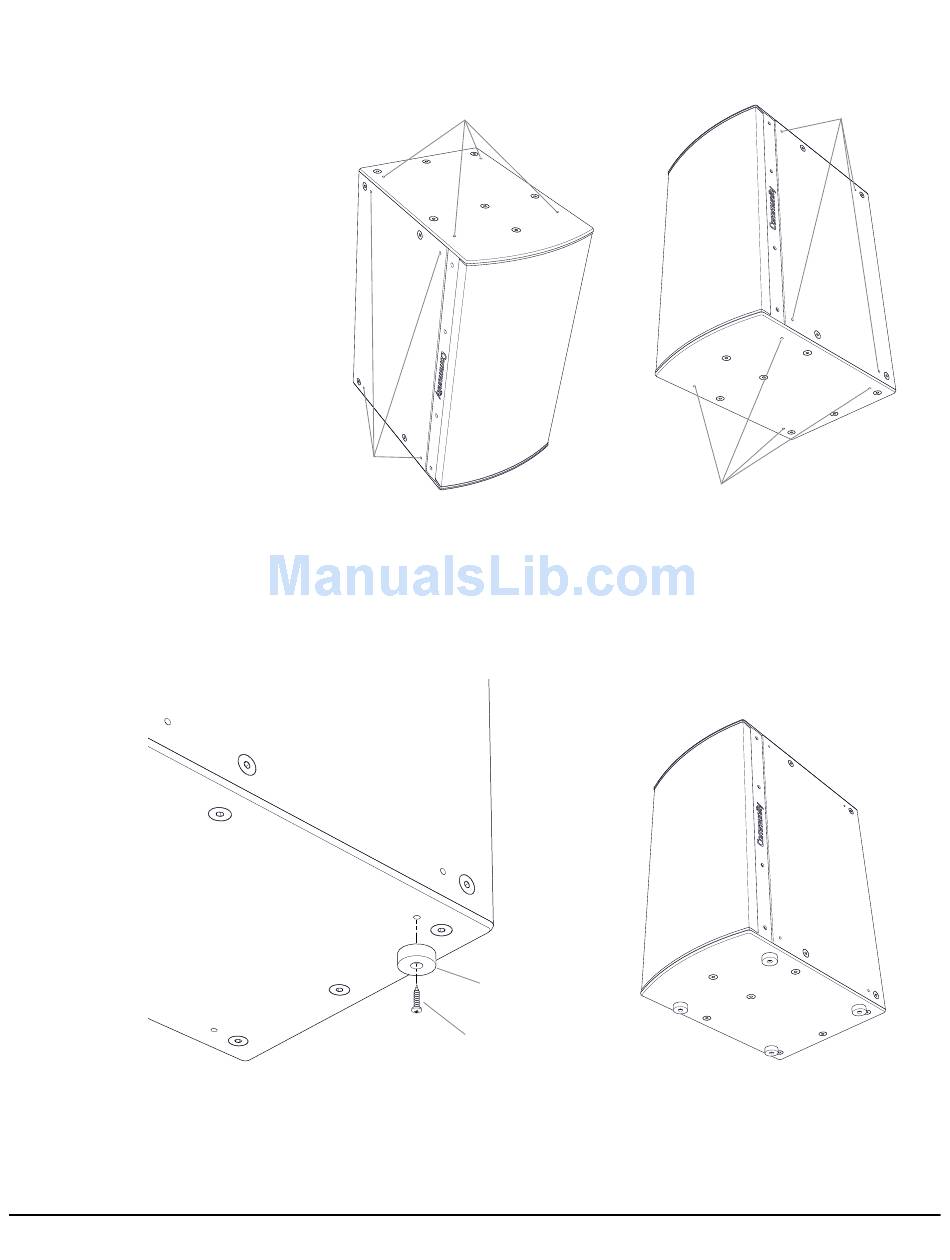

Figure 4b. Attach the rubber feet
Dimples
Figure 4a. Dimple locations
Rubber Foot
#10 x .75"
Wood Screw
Quick Start Guide
Dimples
Dimples
Figure 4c. All feet attached
