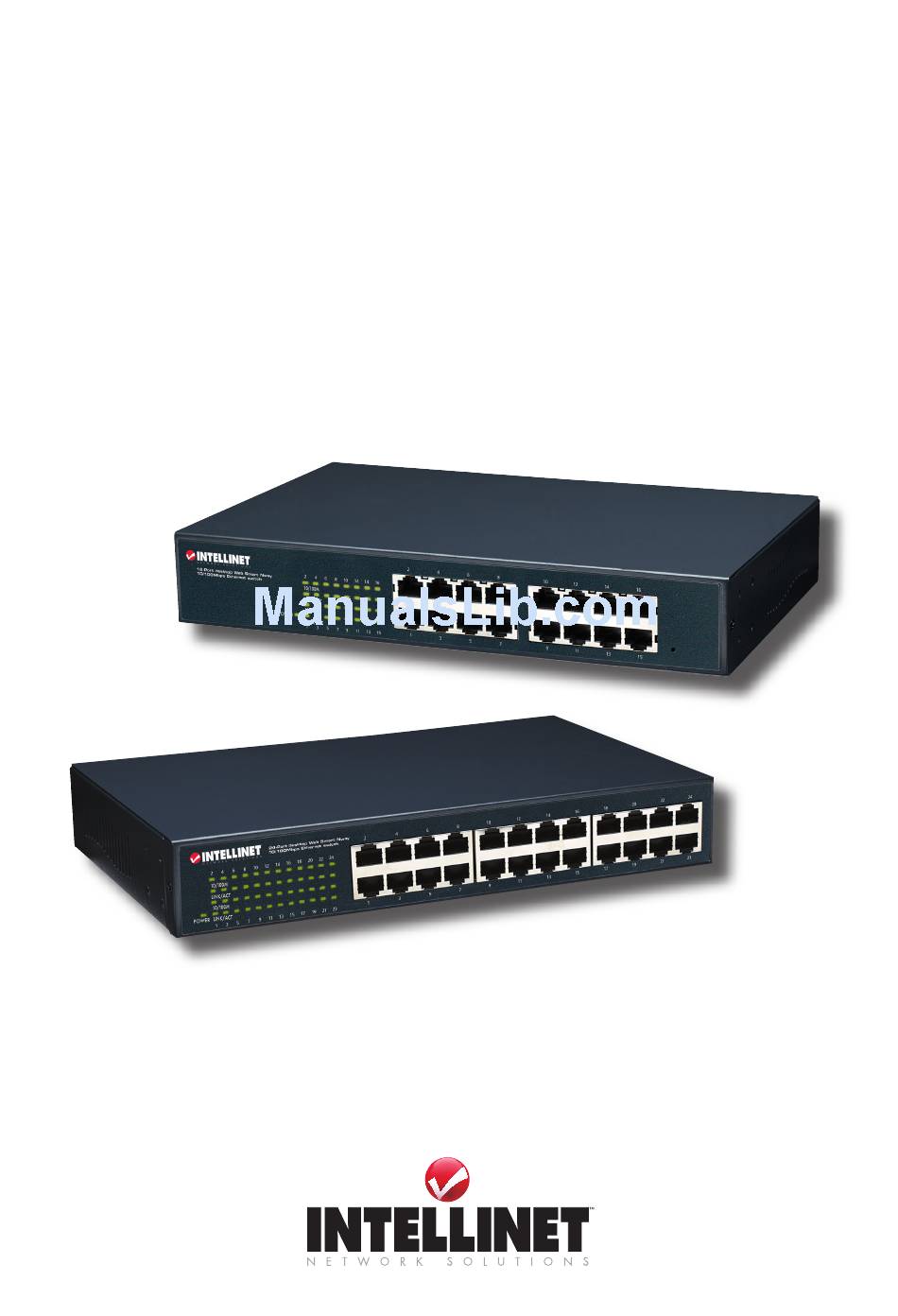

- Page 1 16/24 Port Fast EthErnEt WEb-smart sWitch usEr manual Models 523790 & 523806 INT-523790/523806-UM-0407-02...
-
Page 3: Fcc Warning
VLANs and traffic prioritization. shipped ready for use straight out of the box, INTellINeT NeTWoRK solUTIoNs Web- smart switches are ideal for adding basic management to your unmanaged networks and extending your managed networks. -
Page 4: Front Panel
The RJ-45 connectors on the front panel of the Fast ethernet Web-smart switch (16 for Model 523790, shown below; 24 for Model 523806, with a similar layout) are for connecting to servers, workstations or other network components. The device features a corresponding number of 10/100 Mbps switching ports that sense the speed and automatically negotiate full/ half duplex mode, allowing you make both 10Base-T and 100Base-TX connections. - Page 5 2. set your PC’s IP to 192.168.2.xx. INTellINeT NeTWoRK solUTIoNs Fast ethern 3. open your Web browser, then go to the 192.168.2.1 site to display the login screen (right). enter a username and password (the factory defaults are “admin”...
-
Page 6: System Status
administrator authentication To change the password — or create a new username/ password — fill in the appropriate fields, then click “Update.” Restart the switch to effect any change that you have made on the screen. System IP Configuration To change the IP address, fill in the appropriate field(s), then click “Update.”... -
Page 7: Firmware Update
Firmware update To update with new firmware, follow the instructions on this screen. Port management Port Configuration Port No. lets you select the port number you want to configure from the drop-down menu. link Capability lets you set the selected port in either Auto-Nego(tiation) mode or Force mode (100M or 10M). -
Page 8: Bandwidth Control
bandwidth control Port No. lets you select the port number you want to configure from the drop-down menu. Tx Rate lets you set the transmission rate for the selected port; Rx Rate, the receiving rate: 400 kbps, 800 kbps, 2 Mbps, 4 Mbps, 8 Mbps, 10 Mbps or 50 Mbps. broadcast storm control enabling the broadcast storm protection feature lets you choose the number of broadcast packets allowed to enter each port (10 ms for 100 Mbps;... -
Page 9: Qos Setting
Vlan multi to 1 mode once this setting’s been activated, ports can only connect with the designated destination port. Trunk Configuration To set up port trunk groups, click the port number boxes you want included in the same group. Qos setting Priority mode select one of three priority modes:... -
Page 10: Mac Address Configuration
Class of Service Configuration on this screen, select the class of service for each port. MAC Address Configuration For MAC address configuration, select the port number(s) for which you want to enable or disable the MAC address filter function. Click “Update” to effect any change. logout Click to log off. -
Page 11: Specifications
sPEciFications LEDs Standards • Ieee 802.3 (10Base-T ethernet) • Power • Ieee 802.3u (100Base-TX Fast ethernet) • link/Tx • IEEE 802.3x (flow control, for full duplex mode) • 10/100 Mbps • Ieee 802.1p (Qos) Power General • Internal power supply, 100 – 240 V AC, •... - Page 12 INTELLINET NETWORK SOLUTIONS offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
