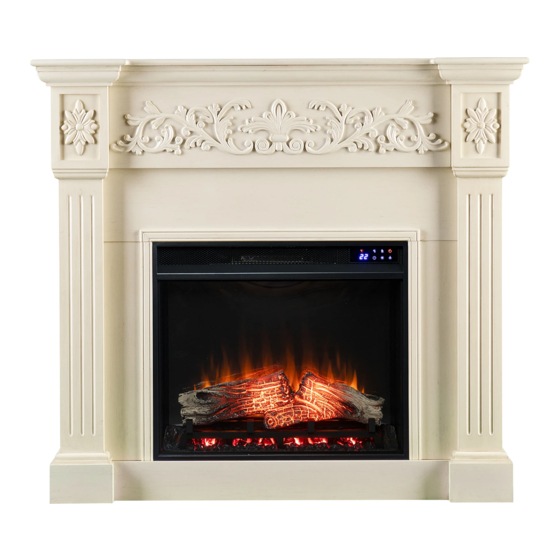

- Page 1 "CALVERT" CARVED FIREPLACE FA927800TX- ESPRESSO FA927900TX- IVORY For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 ASSEMBLY INSTRUCTIONS service@seidal.com www.seidal.com PO#12825...
-
Page 2: Parts List
"CALVERT" CARVED FIREPLACE Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. - Page 3 "CALVERT" CARVED FIREPLACE Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 4 "CALVERT" CARVED FIREPLACE Assembly Instructions Insert cam bolts (A) and wood dowels (B) to corresponding holes on panels (4) and (5). Insert and turn cam locks (C) clockwise to attach "Please do not over tighten cam bolts, left side panel (2) to left front panel (4). please stop when you feel it tighten"...
- Page 5 "CALVERT" CARVED FIREPLACE Assembly Instructions Insert cam bolts (A) and wood dowels (B) to corresponding holes on bottom side of middle front panel (8). Insert and turn cam locks (C) clockwise to attach middle front panel (8) to middle left front panel (9) and middle right front panel (10).
- Page 6 "CALVERT" CARVED FIREPLACE Assembly Instructions Insert wood screws (I) into the corresponding holes to attach the top panel. Figure 7 Attach insert (12) into the mantel as shown,. Then, insert wood screws (I) through insert fixed bar (11) to lock tightly. Figure 8 Now your fireplace is ready to use.
- Page 7 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
