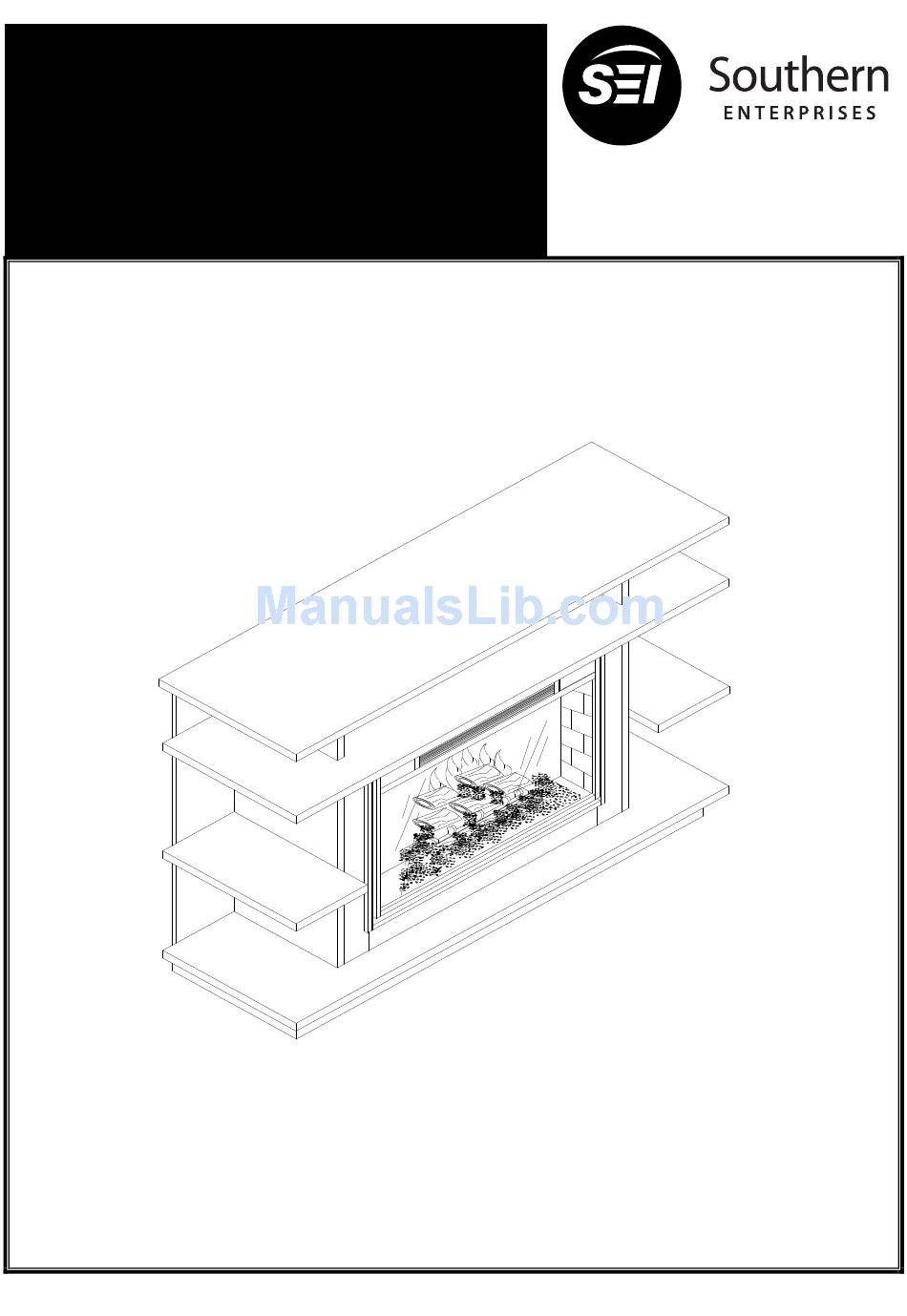

- Page 1 FA9031A0TX / FA9031B0TX Granville Media Fireplace -Espresso/ Ebony Stain For assistance with assembly, contact: Southern Enterprises Inc. Customer Service 1-800-633-5096 Assembly Instructions service@seidal.com www.seidal.com Page 1...
- Page 2 Granville Media Fireplace- Espresso/ Ebony Stain Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 Quantity Quantity Quantity of 36 of 4 of 8 Ø1/4*7/8"L Plastic Cover Small Bolt Spring Washer Quantity Quantity Quantity of 8 of 5 of 7 Ø3*12mm Ø5/16”*1”L Flat Washer Screw For Back Long Flat Head Screw Quantity Quantity Quantity of 1 of 4 of 4 Allen...
- Page 4 Granville Media Fireplace- Espresso/ Ebony Stain Assembly Instructions Insert cam locks (C) into holes on side rails (2L/2R). Screw cam bolts (A) into holes on side "Please do not over tighten cam bolts, panels (3L/3R). stop when you feel them tighten" Attach side rails (2L/2R) to side panels (3L/3R) by inserting wood dowels (B) and cam bolts (A) into corresponding holes until...
- Page 5 Attach assembled units to upper/lower rails (4) by inserting 8 pcs wood dowels (B) into corresponding holes until assembled units and upper/lower rails (4) meet. Figure 3 Insert cam locks (C) into holes on assembled unit as shown in figure 4. Screw cam bolts (A) into holes on bottom panel (5).
- Page 6 Insert cam locks (C) into holes on assembled unit as shown in figure 5. Screw cam bolts (A) into holes on shelf (6). Attach shelf (6) to assembled unit by inserting wood dowels (B) and cam bolts (A) into corresponding holes until assembled unit and shelf (6) meet.
- Page 7 Use screws (H) to connect middle back panel (9) to assembled unit. Tighten screws (H) with Phillips screwdriver. Figure 7 Insert cam locks (C) into holes on assembled unit. Screw cam bolts (A) into holes on back panels (10L/10R). Attach back panels (10L/10R) to assembled unit by inserting wood dowels (B) and cam bolts (A) into corresponding holes until assembled unit and back panels (10L/10R)
- Page 8 Insert cam locks (C) into holes on assembled unit. Screw cam bolts (A) into top panel (8). Attach top panel (8) to assembled unit by inserting wood dowels (B) and cam bolts (A) into corresponding holes until assembled unit and top panel (8) meet. Tighten by rotating cam locks (C) clockwise with Phillips screwdriver.
- Page 9 Push firebox (13) into the back of the unit, then, use long flat head screws (I) through fixed bar (12) to lock tightly. Figure 11 Use screws (M) to connect brackets (L) to the back of the top panel (8) as shown. Tighten screws (M) with phillips screwdriver.
- Page 10 If damages or missing parts are not reported within 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
- Page 11 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Model: FA9031A0TX and FA9031B0TX Granville Media Fireplace Southern Enterprises, Inc 600 Freeport Parkway,...
