Summary of Contents for Audiovox MM850

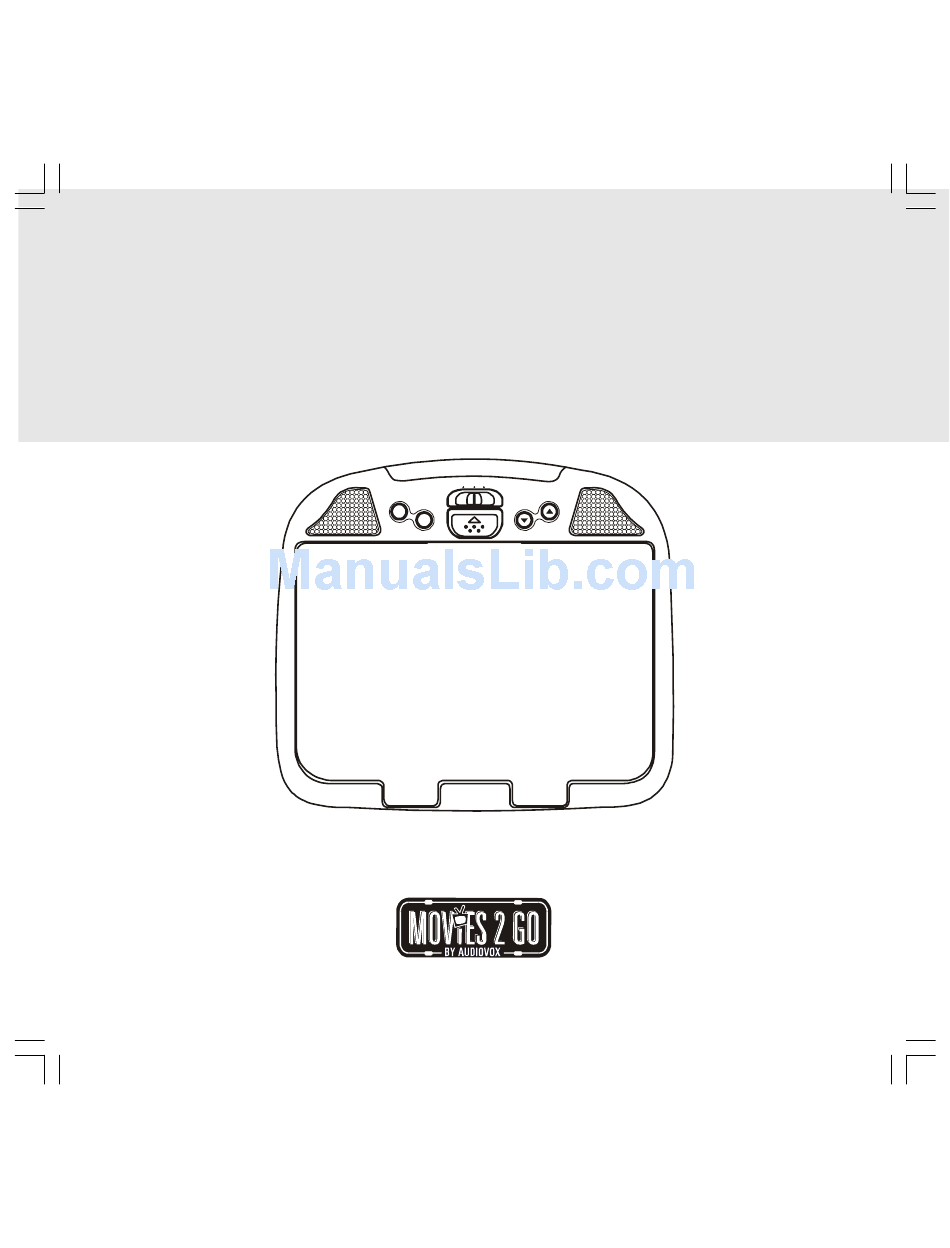

- Page 1 MM850 8.5” LCD OVERHEAD MONITOR ON OFF AUTO POWER M EN U/ DOW N ENTER OPERATION MANUAL MM850 1287264.P65 11/2/2004, 9:48 AM...
-
Page 2: Important Notice
System adjustments can be accomplished using the remote control unit, while seatbelts remain fastened. Enjoy your Movies 2 Go entertainment system but remember-safety of all passengers remains the number one priority. 1287264.P65 Important Notice Warnings Safety Precaution 11/2/2004, 9:48 AM MM850... - Page 3 Congratulations on your purchase of the Movies 2 Go MM850 drop-down Video Monitor. The MM850 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
-
Page 4: Front Panel Features
FRONT PANEL FEATURES 1287264.P65 ON OFF AUTO POWER MENU/ DOWN ENTER 11/2/2004, 9:48 AM MM850... -
Page 5: Front Panel
FRONT PANEL 1. Infrared Transmitter – Used to transmit audio to the optional wireless headphones. 2. Remote Sensor – To allow Remote Control operation of the MM850. 3. Dome Lights – Provide additional interior illumination. 4. Three Position Dome Light Switch •... - Page 6 The internal hinge friction will hold the screen in position while the system is in use. 2. Press the power button to turn the MM850 on. 3. After the unit is turned ON and begins to display a picture, adjust the viewing angle by pivoting the screen to optimize the picture quality.
-
Page 7: Operation
OPERATION OVERHEAD DOME LIGHTS The Dome Lights integrated into the MM850 are controlled by a three position slide switch. Sliding the switch to the ON position will turn the lights ON. The OFF position will prevent the lights from turning ON with the vehicle’s interior lighting, and the auto position will allow the lights to turn ON and OFF with the vehicle’s... -
Page 8: Remote Control Sensor
REMOTE CONTROL SENSOR The MM850 incorporates an infrared sensor that will relay signals from the remote control to allow a source connected to the AV1 input to be controlled simply by pointing its remote control at the remote sensor eye. This provides control of source equipment such as a Video Cassette Player or DVD Player. - Page 9 REMOTE CONTROL UNIT BUTTONS CONTROLS LCD : Power On / Off Button for the MM850 monitor VCP : Power On / Off Button for an Optional Audiovox VCP SOURCE MENU/ SOURCE : Button for selection of AV1 and AUX ENTER MENU/ENTER Button –...
-
Page 10: Picture Adjustment
Press UP button To brighten the picture Increases the picture contrast for vivid color To increase the color intensity Inceases the redish skin tones PICTURE PICTURE BRIGHTNESS BRIGHTNESS CONTRAST CONTRAST COLOR COLOR TINT TINT RESET RESET BRIGHTNESS BRIGHTNESS MM850 11/2/2004, 9:48 AM... -
Page 11: Source Select
To exit the main menu, highlight DISPLAY OFF and press the MENU button to enter, the menu will disappear. NOTE: The menu will also disappear from the screen automatically if you do not press any button within five seconds. MM850 1287264.P65 MENU MENU... -
Page 12: A/V Source Selection
AUX input with the supplied AV adapter cable. To play the AUX source, turn the MM850 ON and press the Menu button, the main menu will appear. Select SOURCE and then press the menu/enter button. -
Page 13: Wireless Headphones
Your video system can be equipped with an optional RF modulator, that allows you to listen to the MM850’s audio signal by tuning your vehicle’s radio to the selected frequency, (88.7 or 89.1- check with your installer) and tuning on the remote mounted RF modulator switch. -
Page 14: Troubleshooting
Verify that the batteries in the remote are fresh. • Verify that the remote sensor eye is not obstructed. • Verify that the infrared transmitter is affixed over the sensor eye of the component to be controlled. 1287264.P65 MM850 11/2/2004, 9:48 AM... -
Page 15: Specifications
336,960 Operation Temperature 0 - 60º C Storage Temperature -20 - 70º C Expected Backlight life 10,000 Hours Video Display System NTSC / PAL Dimensions W x H x D 9.5” x 1” x 8.5” MM850 1287264.P65 11/2/2004, 9:48 AM... -
Page 16: 12 Month Limited Warranty
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA U.S.A. : AEC, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 © Copyright 2004 AEC, 150 Marcus Blvd. Hauppauge, NY 11788 1287264.P65 12 MONTH LIMITED WARRANTY Applies to AEC Mobile Video Products 1-800-645-4994 " 128-7264 MM850 11/2/2004, 9:48 AM...
