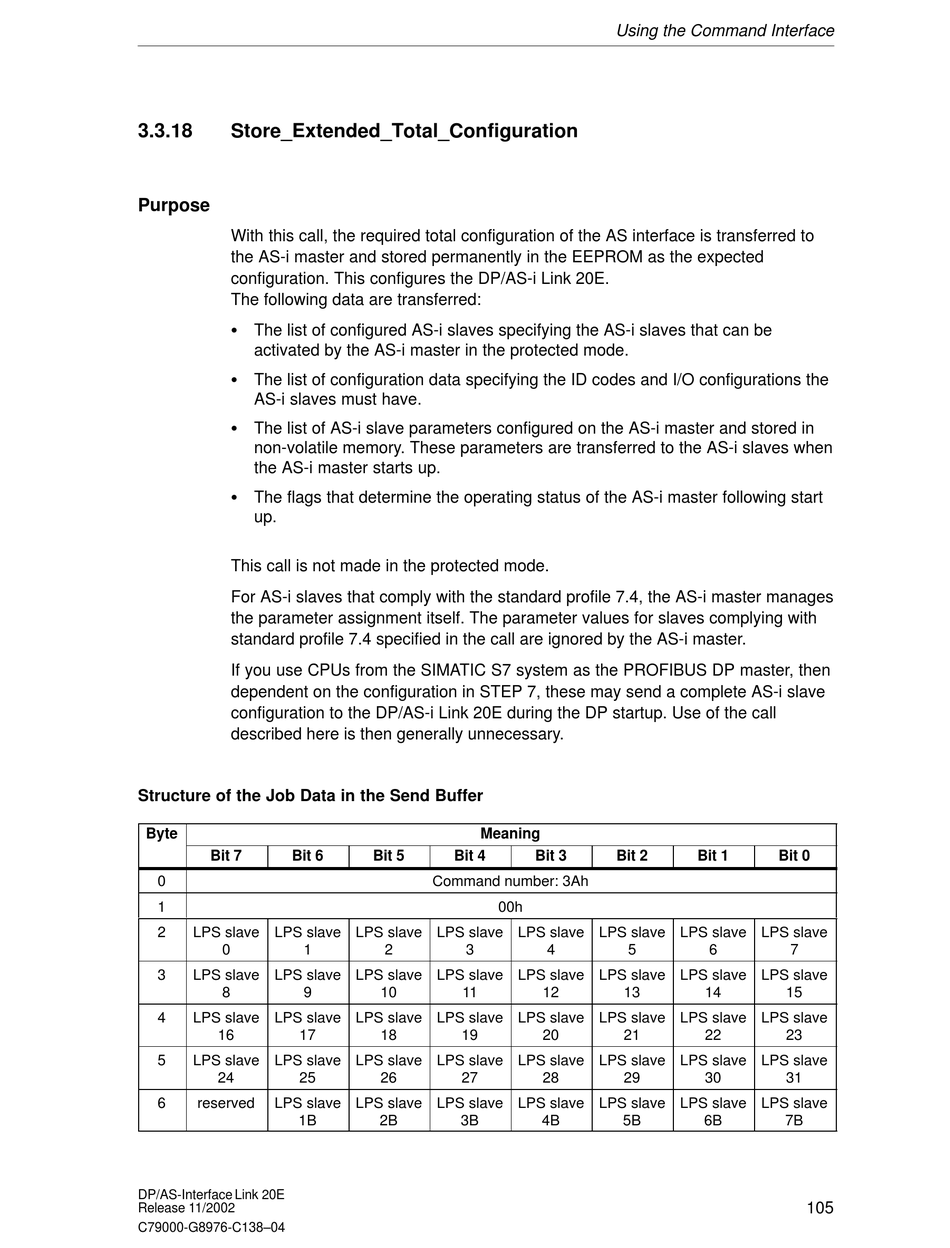

3.3.18

Store_Extended_Total_Configuration

Purpose
With this call, the required total configuration of the AS interface is transferred to
the AS-i master and stored permanently in the EEPROM as the expected
configuration. This configures the DP/AS-i Link 20E.
The following data are transferred:
S The list of configured AS-i slaves specifying the AS-i slaves that can be
activated by the AS-i master in the protected mode.
S The list of configuration data specifying the ID codes and I/O configurations the
AS-i slaves must have.
S The list of AS-i slave parameters configured on the AS-i master and stored in
non-volatile memory. These parameters are transferred to the AS-i slaves when
the AS-i master starts up.
S The flags that determine the operating status of the AS-i master following start
up.
This call is not made in the protected mode.
For AS-i slaves that comply with the standard profile 7.4, the AS-i master manages
the parameter assignment itself. The parameter values for slaves complying with
standard profile 7.4 specified in the call are ignored by the AS-i master.
If you use CPUs from the SIMATIC S7 system as the PROFIBUS DP master, then
dependent on the configuration in STEP 7, these may send a complete AS-i slave
configuration to the DP/AS-i Link 20E during the DP startup. Use of the call
described here is then generally unnecessary.
Structure of the Job Data in the Send Buffer
Byte
Bit 7 Bit 6
0
1
2 LPS slave LPS slave
0 1
3 LPS slave LPS slave
8 9
4 LPS slave LPS slave
16 17
5 LPS slave LPS slave
24 25
6 reserved LPS slave
1B
DP/AS-Interface Link 20E
Release 11/2002
C79000-G8976-C138–04
Meaning
Bit 5 Bit 4
Command number: 3Ah
00h
LPS slave LPS slave LPS slave
2 3
LPS slave LPS slave LPS slave
10 11
LPS slave LPS slave LPS slave
18 19
LPS slave LPS slave LPS slave
26 27
LPS slave LPS slave LPS slave
2B 3B
Using the Command Interface
Bit 3 Bit 2 Bit 1
LPS slave LPS slave
4 5 6
LPS slave LPS slave
12 13 14
LPS slave LPS slave
20 21 22
LPS slave LPS slave
28 29 30
LPS slave LPS slave
4B 5B 6B
Bit 0
LPS slave
7
LPS slave
15
LPS slave
23
LPS slave
31
LPS slave
7B
