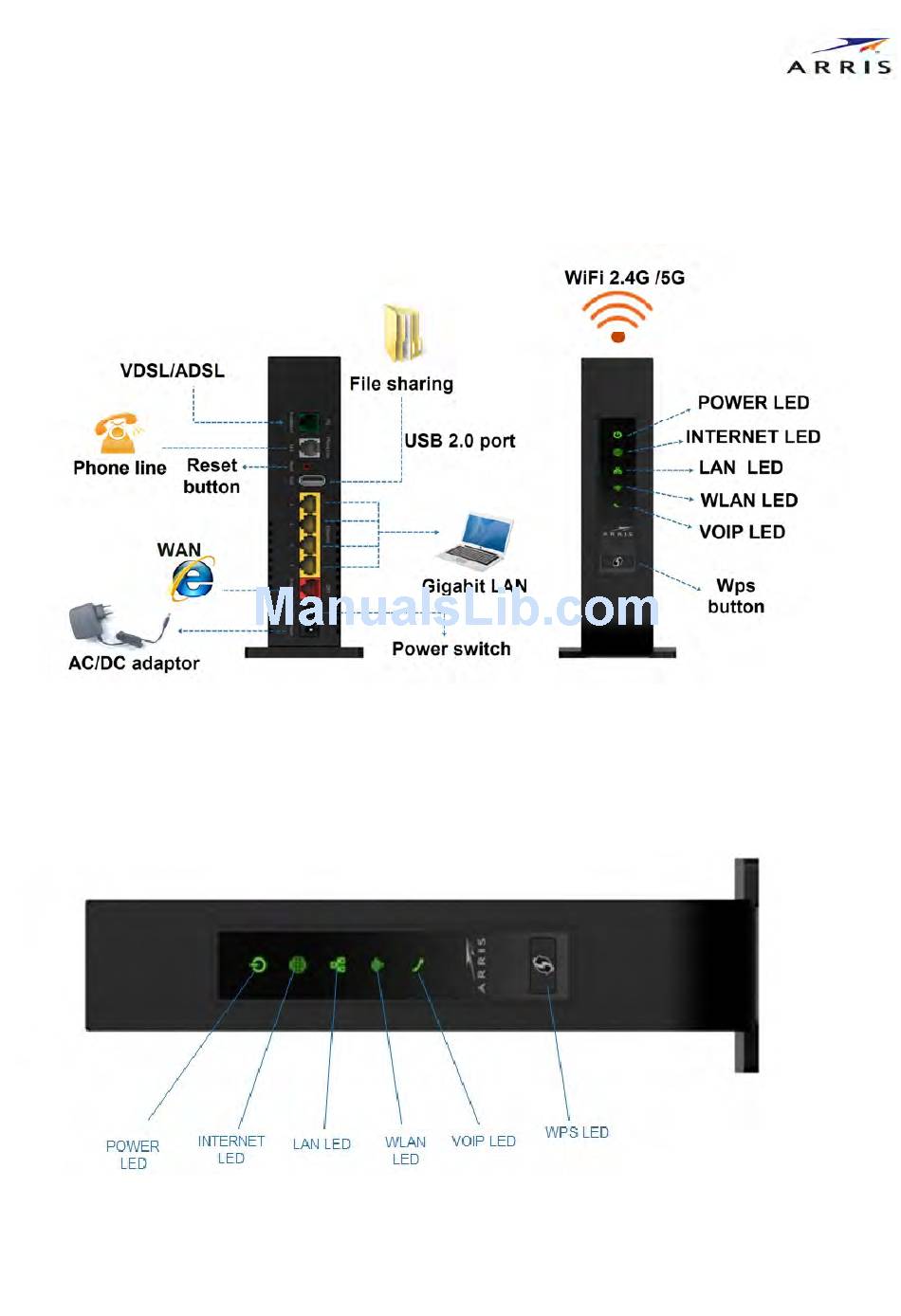

- Page 1 NVG34x Installation guide 1. Introduction of ARRIS NVG34x series Figure 1 Quick Installation Guide of ARRIS NVG34x Series 1.1 ARRIS Gateway Status Indicator Lights Colored LEDs on your ARRIS Gateway indicate the status of various port activity.(Figure 2)
- Page 2 Action POWER Solid Green = The device is powered. Yellow=The device is bootting up. Off = The device is not powered. INTERNET Solid Green = Good broadband connection. Red = No broadband connection. Off = The device is not powered. Solid Green = This led will flash follow the LAN data.
-
Page 3: Set Up The Arris Gateway
2. Set up the ARRIS Gateway Refer to your Quick start Guide for instructions on how to connect your ARRIS gateway to your power source, PC or local area network, and your Internet access point, whether it is a Fiber connection or a Gigabit Ethernet connection. -
Page 4: Opens. Enter Your User Name And Password And Click "Ok" Button.username And Password Are Both "Admin".(Figure
Enter http://192.168.1.254 in the Location text box. Once the network type is determined, The device Status Page opens. Enter your user name and password and click "OK" button.username and password are both "admin".(Figure 5) Figure 5 The Device Status Page opens. The Device Status displays the following information in the center section. -
Page 5: Links Bar
3.1 Links Bar The links bar at the top of each page allows you to configure different aspects of the features displayed on the page. (Figure 7) Figure 7 3.2 Basic Setup Basic Setup Click " ",you can change user name and password,and other setting as the figure show.About WIFI setting ,select "2.4G"or "5G"on "Band",then click "Apply/Save".(Figure 8) Figure 8... - Page 6 3.3 WIFI setting Click “Wireless Setup” sub menu “Wireless 2.4G”or "Wireless 5G". Change WIFI SSID in "Wireless Network Name",then click "Apply/Save".(Figure 9) Figure 9 Click sub menu ''SECURITY" to change WIFI password .select "WPA2-PSK" in "Network Authentication",then change password in "WPA/WAPI pass phrase"(Figure 10)
- Page 7 Figure 10 Setup VDSL click 'Utilities' and select 'PTM INTERFACE'.Click 'add' and configure a PTM flow then apply.
- Page 8 Click 'WAN SETUP' select 'wan service', then click 'add'. If you only want to set xDSL interface with default configure. Click next, next..and apply in the end.
- Page 9 Select the interface you have set in step '1', then next. Select WAN service type under your environment. Here I select IPOE, then next.
- Page 10 Wan IP set ... next and next. Default gateway...next.
- Page 12 In the end, click ”Apply”. You can see this...
