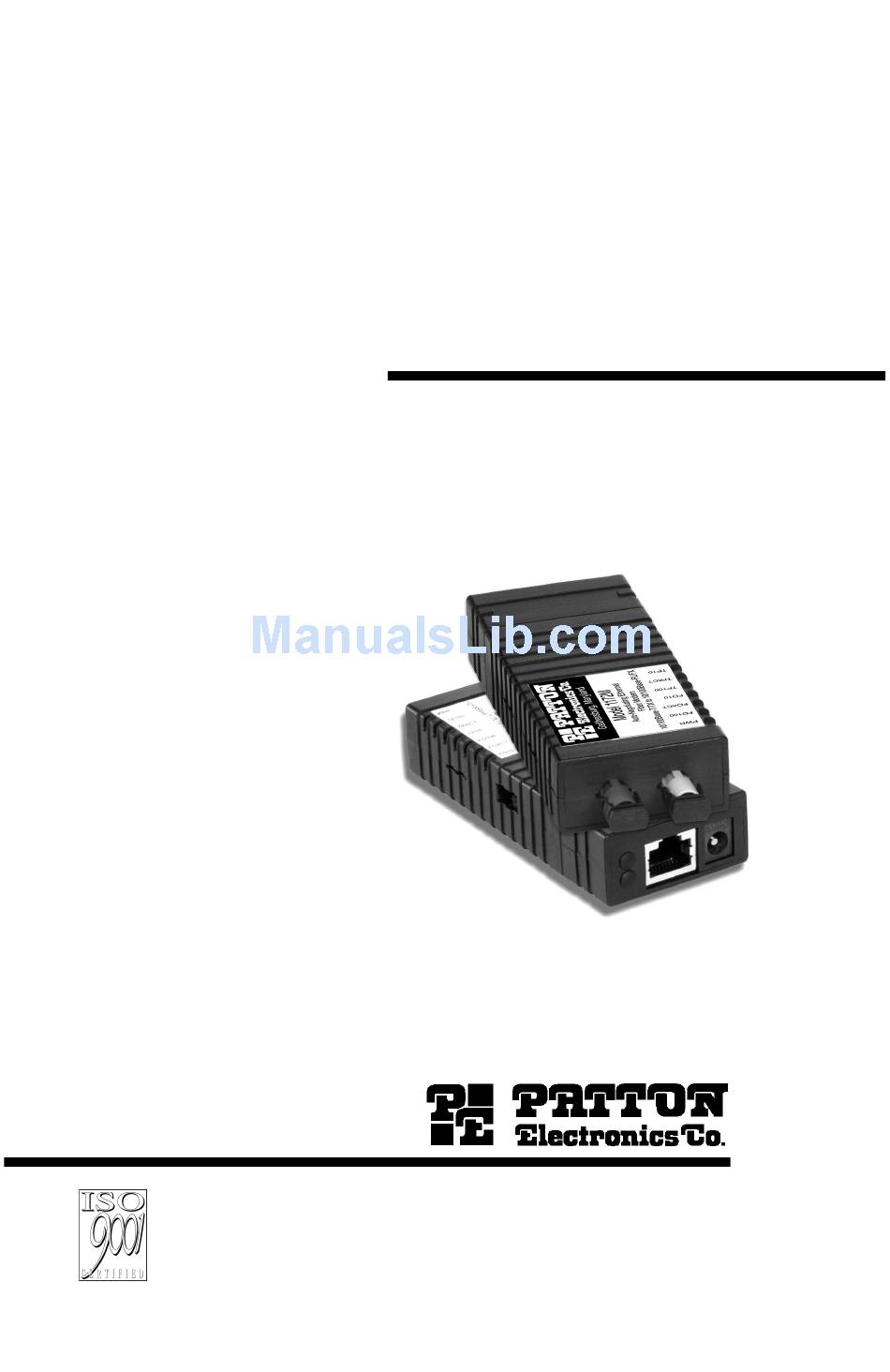

- Page 1 Part# 07M1170M Doc# 077351U Rev. A Revised 4/14/03 An ISO-9001 Certified Company USER MANUAL MODEL 1170M SERIES Ethernet Fiber Modems (1170M, 1171M, 1172M) SALES OFFICE (301) 975-1000 TECHNICAL SUPPORT (301) 975-1007...
-
Page 2: Table Of Contents
CONTENTS Warranty Information ... 3 Radio and TV Interference... 3 CE Notice... 3 Service... 4 General Information... 5 Features... 5 Description... 6 Installation... 8 Installing a Fiber Modem ... 8 End-to-end connection... 11 Operation... 12 LED indicators ... 12 Specifications ... 14 A.1 Interfaces/Connectors ... -
Page 3: Warranty Information
However, there is no guarantee that interfer- ence will not occur in a particular installation. If a 1170M Series unit does cause interference to radio or television reception, which can be deter-... -
Page 4: Service
and the Low Voltage Directive (LVD) of the Union European (EU). A Cer- tificate of Compliance is available by contacting Technical Support. This device is not intended to be connected to the public telephone network. Caution 1.3 SERVICE All warranty and nonwarranty repairs must be returned freight prepaid and insured to Patton Electronics. -
Page 5: General Information
2.0 GENERAL INFORMATION Thank you for your purchase of this Patton Electronics product. It has been thoroughly inspected and tested and is warranted for parts and labor. If you have any questions about this product, please call Patton Electronics Technical Support at (301) 975-1007. 2.1 FEATURES •... -
Page 6: Description
2.2 DESCRIPTION There are three base models in the Patton Model 1170M Series of stan- dards compliant Ethernet Fiber Modems (see Table 1) that convert and extend the reach of copper Ethernet over multi-mode fiber. Table 1: Model 1170M configurations... - Page 7 All Patton 1170M Series models are packaged in an ultra-miniature MicroPak chassis and feature power, fiber link and activity, and twisted- pair link and activity LED indicators. The Model 1170M Series of Ether- net Fiber Modems can be ordered with ST or SC fiber optic connectors and with 120VAC, 220VAC, universal interface (UI), -48 VDC, -24 VDC, or -12 VDC power supply adapters.
-
Page 8: Installation
The following sections describe installing and configuring the Model 1170M Series of Ethernet Fiber Modems 3.1 INSTALLING A FIBER MODEM Do the following to install the Model 1170M Series of Ethernet Fiber Modems: 1. The MDI/MDI-X switch enables you to connect the 1170M models to different types of network devices using a standard (straight- through) network patch cable. - Page 9 2. The Fiber Modem comes equipped with a shielded RJ-45 Jack for Ethernet connections (see Figure 1 on page 8). Connect the Ethernet RJ-45 jack to the appropriate 802.3 compliant network equipment via a standard network patch cable (not pro- vided).
- Page 10 4. Connect the DC power output side of the power supply adapter to the power jack (see Figure 1 on page 8) on the 1170M Series unit. 5. Connect the AC power side/cord of the power supply adapter to the appropriate AC power source.
-
Page 11: End-To-End Connection
3.2 END-TO-END CONNECTION Figure 4 shows an end-to-end connection between a personal computer/ terminal and Ethernet hub using two Patton Model 1170M Series Ether- net Fiber Modems and a multi-mode fiber connection. Figure 4. End-to-end multi-mode fiber connection... -
Page 12: Operation
Once powered up, LED indicators located on the side of the Model 1170M Series unit will illuminate to indicate the operating status of the unit. Figure 5. Location of 1170M Series LED indicators (Move fiber connectors to the opposite end of the modem) - Page 13 The LED indicators reflect the following operating status: Number Name FO100 FOACT FO10 TP100 TPACT TP10 Table 2: LED indicator descriptions Description Illuminates green to shown that power is applied to unit. Illuminates green to show that a 100 Mbps signal is present on the fiber optic side of the unit.
-
Page 14: Specifications
APPENDIX A SPECIFICATIONS A.1 INTERFACES/CONNECTORS • Twisted-Pair/Copper Ethernet: Shielded RJ-45 Jack • Fiber Optic Ethernet: Dual ST or SC Connectors A.2 INTERFACE SPEED • 1170M: 100 Mbps • 1171M: 10 Mbps • 1172M: Auto-Negotiating 10 or 100 Mbps A.3 TRANSMISSION MODE Full or Half-Duplex Operating Modes (Auto-sensing) A.4 TWISTED-PAIR/COPPER CABLE TYPE* Category 5 or better recommended... -
Page 15: Fiber Optic Link Budget
A.7 FIBER OPTIC LINK BUDGET Transmit power • 1170M: -16.8 dBm (typical) • 1171M: -12 dBm (typical) • 1172M: -16.8 dBm (typical) Receiver Sensitivity • 1170M: -33.5 dBm (typical) • 1171M: -28 dBm (typical) • 1172M: -33.5 dBm (typical) Delay Time •... -
Page 16: Compliance
A.10 COMPLIANCE • Safety & EMC: Patton Internal Safety & EMC Testing, FCC Part 15 Class A • Telecom—CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC A.11 POWER • External 120 VAC, 60 Hz AC Power Supply (5 VDC output) •...
