PRODUCTS FOR
PROFESSIONALS
from Vetronix Corporation
PRODUCT OVERVIEW
Global OBD II/MTS 3100 Mastertech
Now You Can Diagnose All OBD-II Certified Vehicles with Your MTS 3100
Vetronix Corporation now provides the most comprehensive diagnostic software available for
servicing all OBD II compliant vehicles sold in the U.S. The new Global OBD II software supports
all OBD II emissions-related systems on today's new vehicles and is a complement to the MTS
3100 Mastertech's already superior Domestic and Asian Imports software. You can maximize
productivity as well as your profits with software that lets you tackle those newer vehicles that
used to go to the dealership for repair.

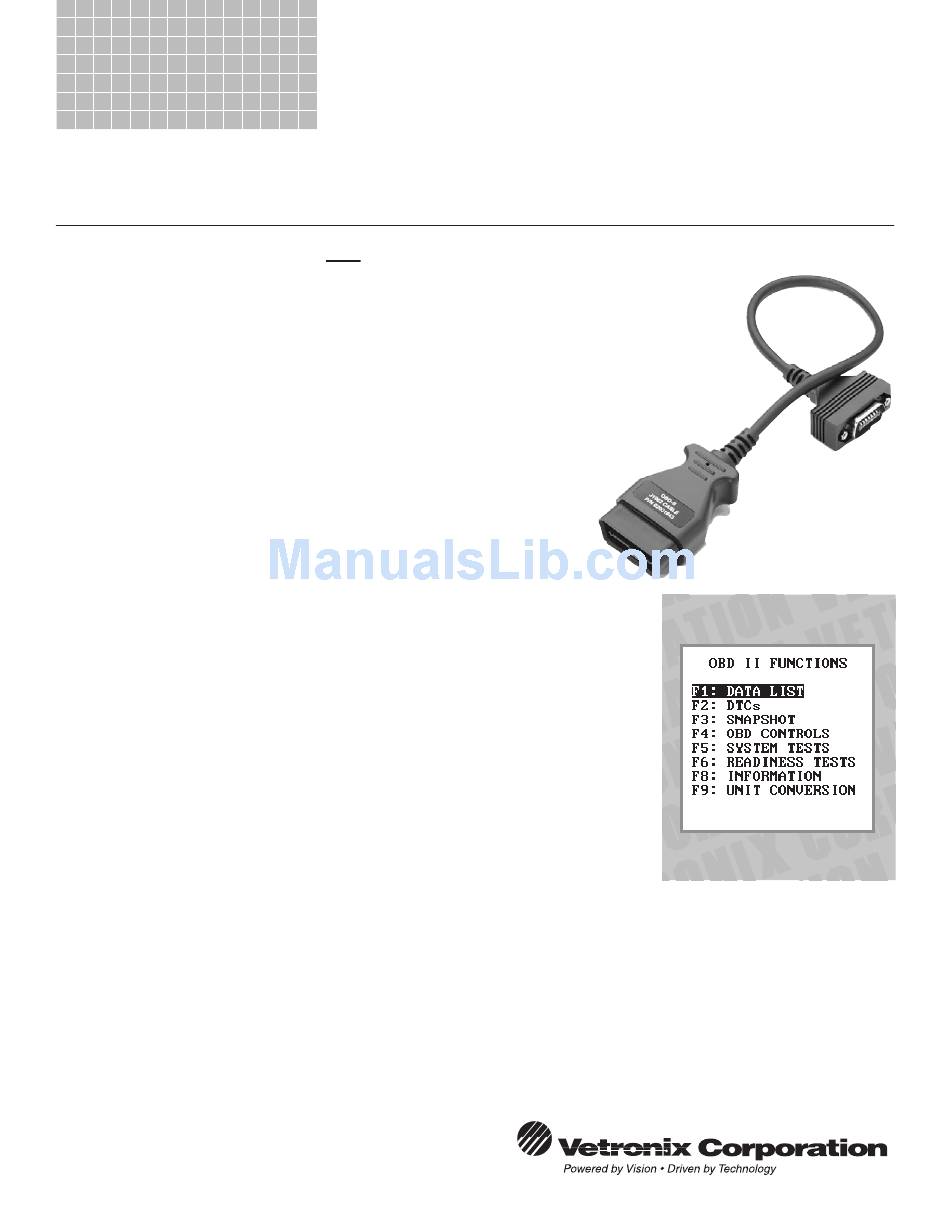

OBD II equipped vehicles provide a standard interface to off-board
diagnostic test equipment. This interface includes a standard test connector,
referred to as the J1962 connector, a standard communication protocol (SAE
J1850, ISO 9141-2 and KWP-2000), and a standard set of diagnostic test
modes defined by SAE J1979. The MTS 3100 fully supports all of these,
including automatic determination of the vehicle's communication protocol.
Below is a summary of the basic OBD II functions and the Vetronix
enhancements to OBD II. Ask for a demonstration!
GLOBAL OBD II FUNCTIONS
Global OBD II software for the MTS 3100 Mastertech supports all operating modes as
defined by the Society of Automotive Engineers (SAE) Recommended Practice J1979. Listed
below is a description of all of the OBD II test modes supported by Global OBD II software.
■
Automatically determines the communication protocol (J1850, ISO, Keyword)
■
Displays OBD II system Readiness Tests status (Mode 1)
■
Displays emission-related Current Diagnostic Data (Mode 1)
■
Displays Freeze Frame Data saved by the OBD II controller (Mode 2)
■
Displays Diagnostic Trouble Codes stored by the OBD II controller (Mode 3)
■
Clears Emissions-Related diagnostic information (Mode 4)
■
Displays Oxygen Sensor Monitoring Test Results (Mode 5)
■
Displays manufacturer specific test results for systems and components (Mode 6)
■
Displays Pending Diagnostic Trouble Codes (Mode 7)
■
Enables off-board device to control a component of an on-board system (Mode 8)
■
Displays vehicle specific information (Mode 9)
ENHANCEMENTS TO OBD II
The Vetronix Global OBD II software has enhancements
that go beyond just the basic OBD II functionality. The
way diagnostic data is displayed and stored is completely
up to you.
■
Notifies you when multiple OBD II controllers are
reporting different data for the same diagnostic data
parameters.
■
Supports multiple frames of Freeze Frame Data rather
than one frame.
■
Selectable Parameter List enables you to balance the
amount of data with the data update rate according
to your needs.
■
Allows you to select the display format for diagnostic
data parameters (List, Bar Chart, Line Graph or LED).
■
Allows you to print diagnostic data and upload it
to a PC.
■
Snapshot function with adjustable trigger point and
your choice of trigger type.
■
Contains extensive HELP functions that enhance
usability.
